MUXLAB AUDIO CONVERTERS - Dante

10 items

Muxlab Dante converters offer a gateway from or to digital audio equipment using Dante protocol. This selection of interfaces have been designed for studios, corporate offices, and broadcast where an audio signal can be better controlled over IP network and interfacing.


500765 - 4-channel, Analogue to Dante

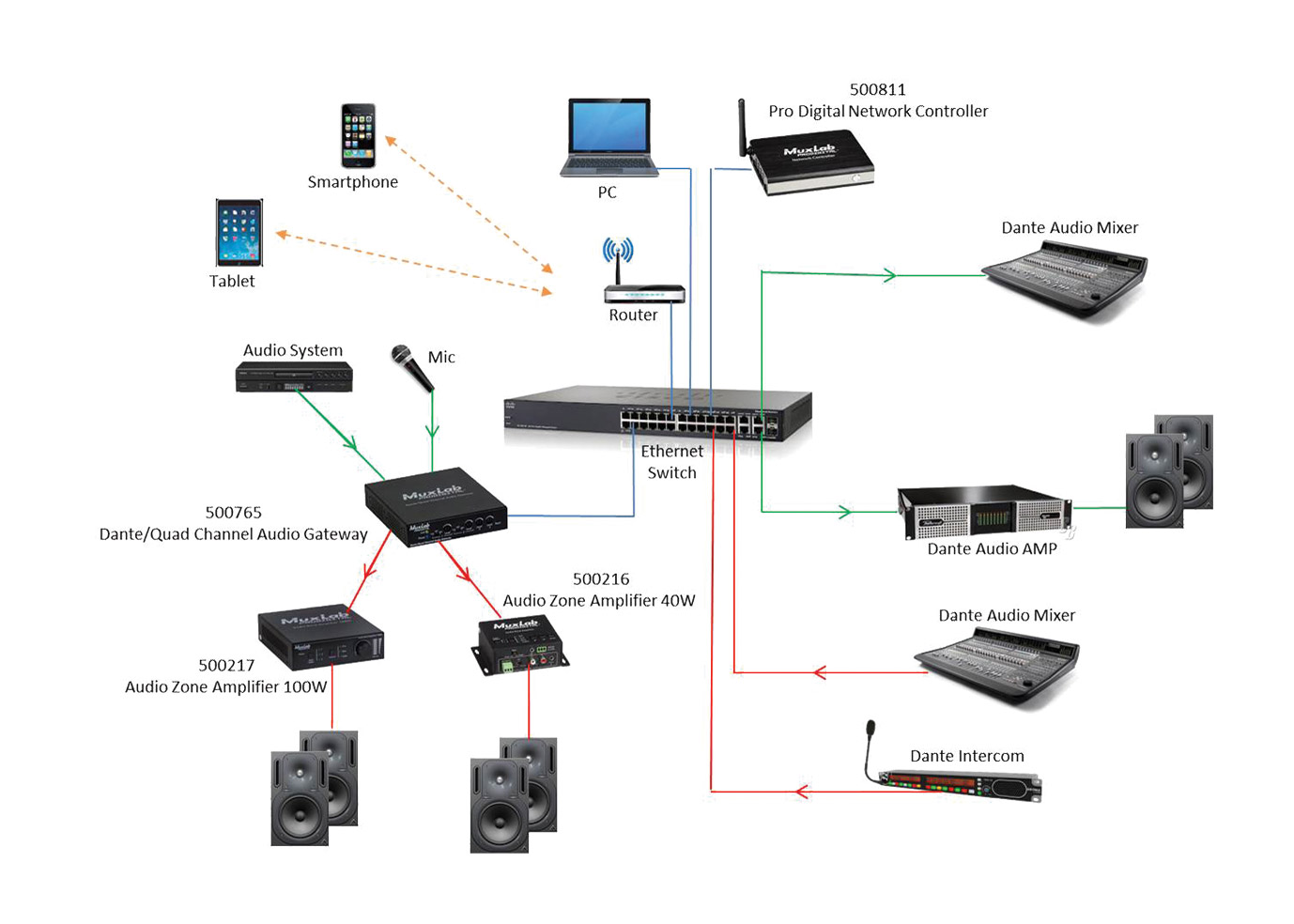

This Dante gateway device allows the input of two stereo channels or four mono channels of analogue audio and converts to Dante audio output before conveying the signal up to 100metres from an Ethernet switch over Cat5e or Cat6 cable. 500765 also have four independent analogue audio outputs and therefore gives the user the option to send digital audio over Dante to the unit, before processing and outputting in analogue format to an amplifier such as 500217, or powered monitoring. This is particularly useful if a user wishes to send digital audio via IP to multiple rooms or locations such as department stores or chains.

The front facing panel of the interface features two LEDs, a yellow LED that signifies an active link, and a blue LED to signify power vie PoE or optional 12VDC power supply. There are line/mic/48V switches for channels one and two, along with rotary recessed gain controllers. Channels three and four offer the same gain controllers but no input type switching. Finally a reset button is located to the right of the front facing panel, accessed via a pin or similar tool.

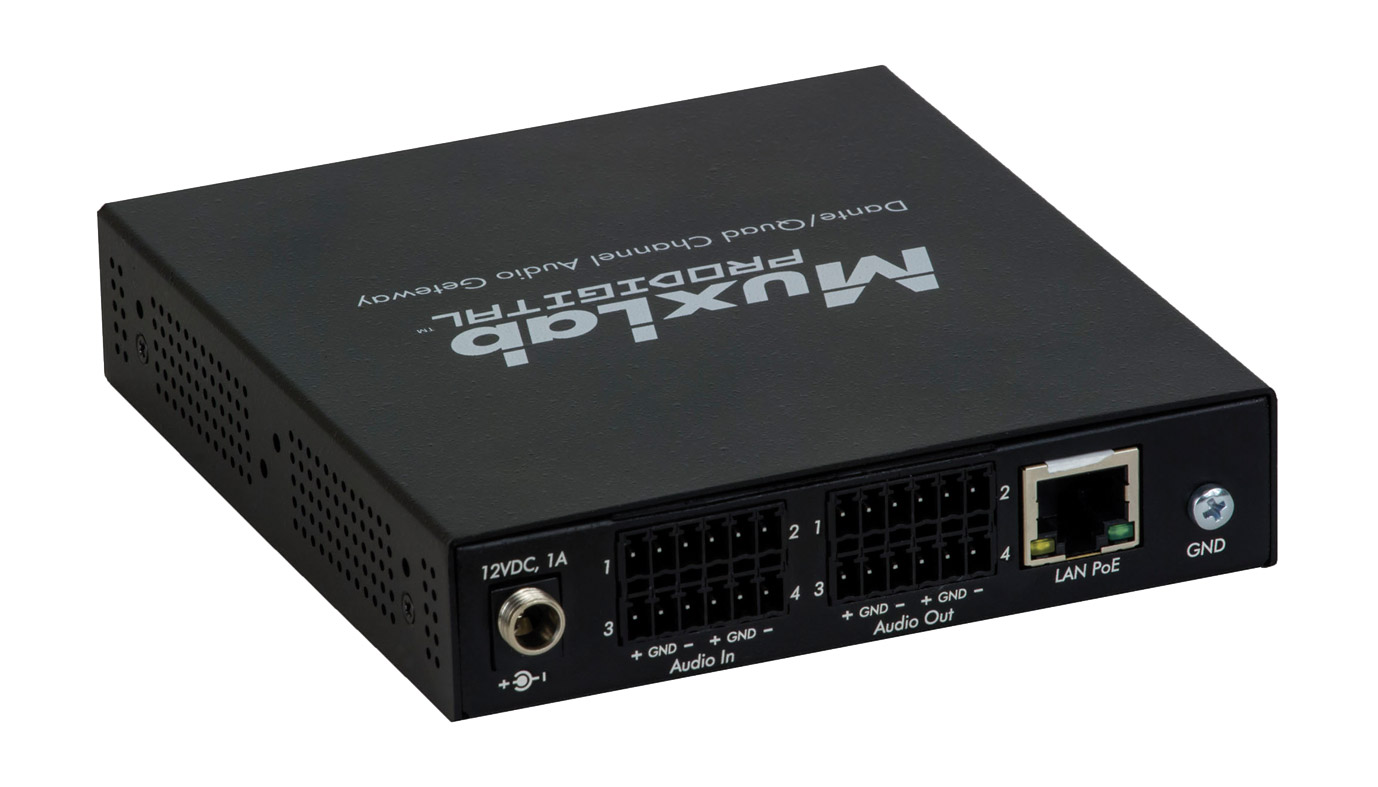

The rear facing panel of the unit offers DC power input for optional PSU, screw for grounding, and RJ45 connection for LAN. Analogue audio I/O, which can be wired balanced or unbalanced, is via 6-pin phoenix connectors.

Dimensions (DxWxH): 111 x 120 x 25mm. Weight: 0.7kg

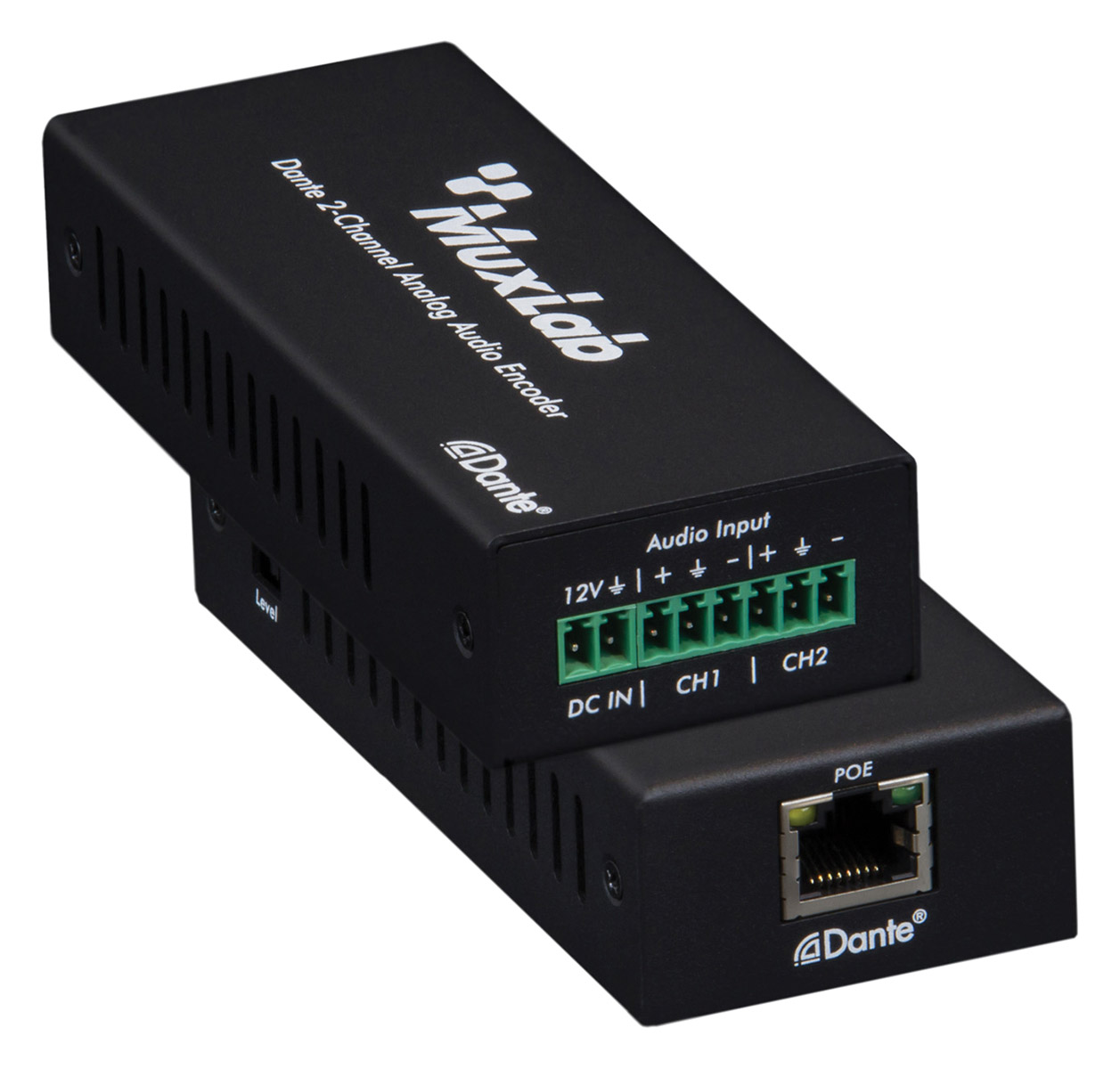

500551 - 2-channel, Analogue to Dante

500551 2-channel Dante encoder allows non-Dante compatible analogue audio equipment to interface with professional Dante compatible audio equipment. The unit allows the transmission of 20Hz to 20KHz balanced or unbalanced analogue signals. It can be powered using either PoE from any PoE network switch or via local with an optional 12v power supply.

Audio sampling rates supported include 44.1kHz, 48kHz, and 96kHz at 24bit. Audio input, by way of Phoenix style connector, supports +18dBu, 0dBu, and -10dBV gain adjustment.

Dimensions (WxDxH): 120 x 47 x 26mm. Weight: 186g

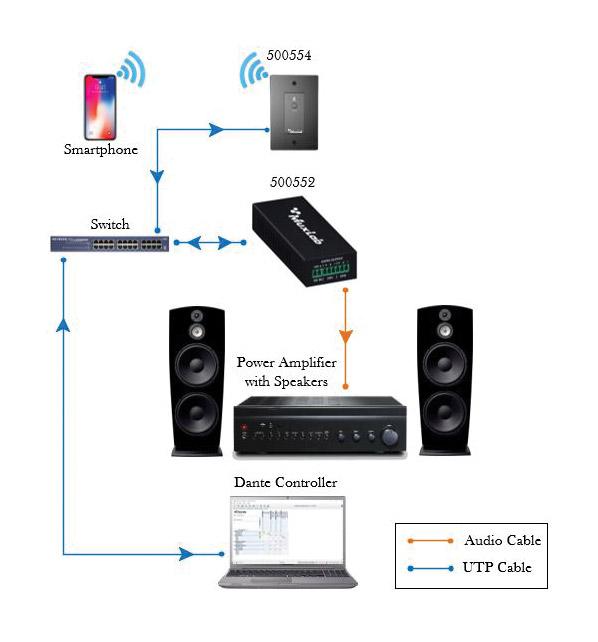

500552 - 2-channel, Dante to Analogue

This unit has the same feature set as 500551 however it functions in reverse - Dante input to 2-channel analogue audio output.

Dimensions (WxDxH): 120 x 47 x 26mm. Weight: 186g

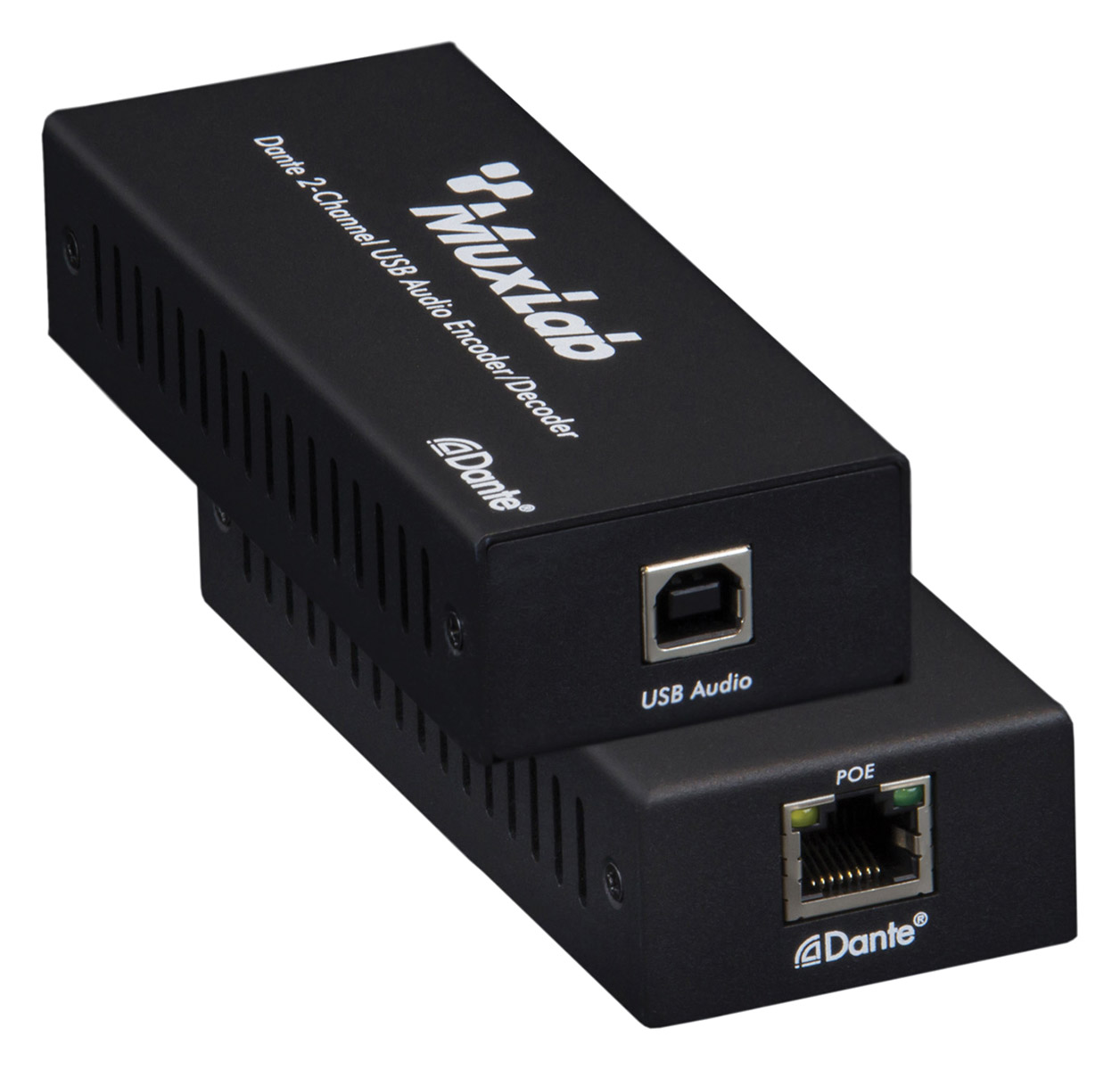

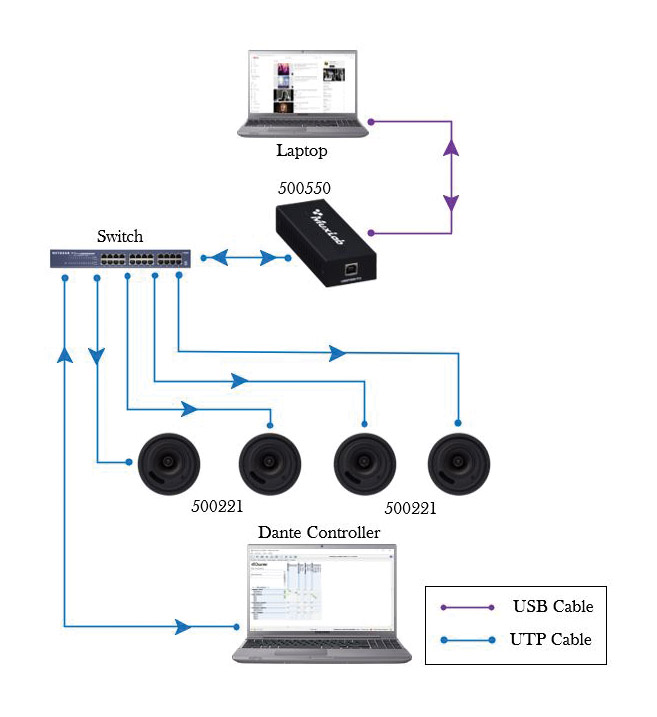

500550 - 2-channel, Dante to USB

A 2-channel USB 2.0 audio encoder/decoder that has been designed to both encode 2-channel USB audio to a Dante digital signal, and decode a Dante digital signal to 2-channel USB audio output. 500550 is plug and play and can be powered using either PoE from any PoE network switch or via 5V from the USB device.

Audio sampling rates supported include 44.1kHz, 48kHz, and 96kHz at 24bit.

Dimensions (WxDxH): 120 x 47 x 26mm. Weight: 186g

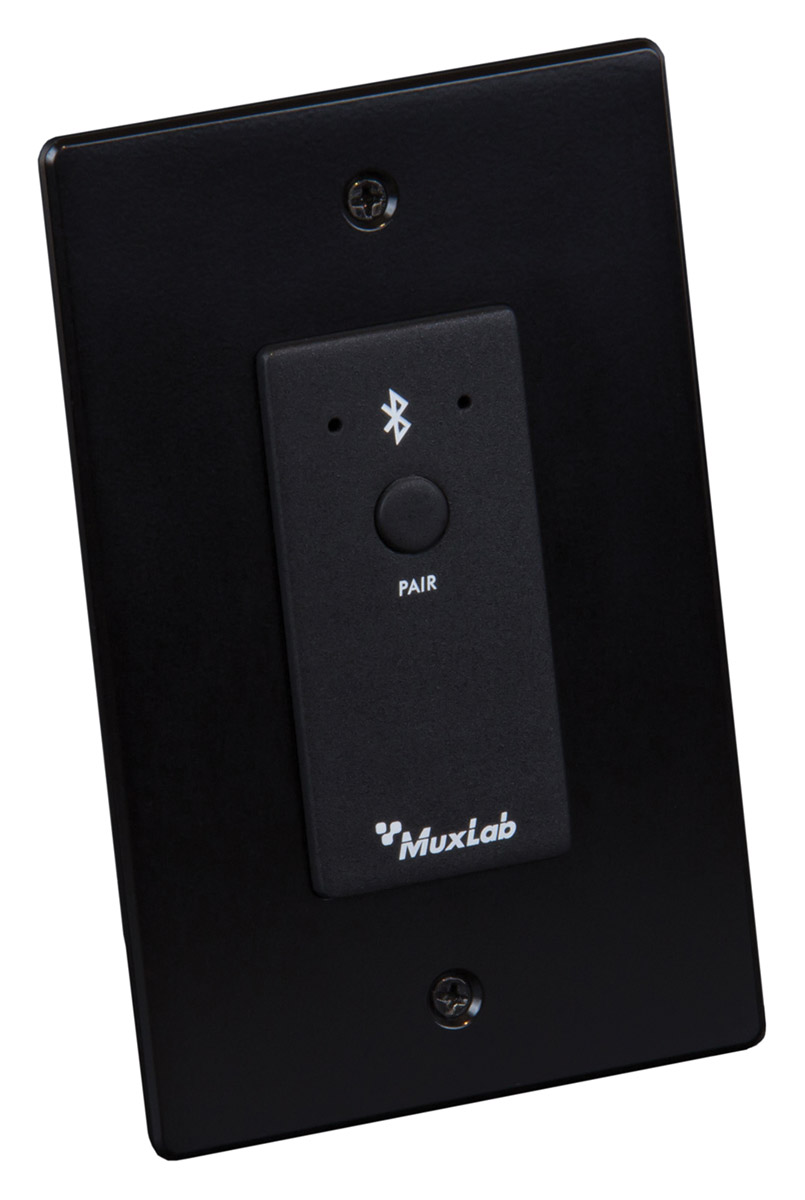

500554 - Bluetooth to Dante

Available in black (500554) or white (500554-WH) finishes, this Bluetooth 5.0 audio to Dante interface allows 2-way audio transmission. The panel has been designed to be compatible with a standard single gang US wall box with Decora faceplate. Note the wall box and Decora faceplate are not included.

The wall panel connects to mobile phones, iPad, and other devices via a Bluetooth interface, and converts the received audio signal into digital signal transmission through Dante network. A status LED on the front panel illustrated valid connection. Power, control, and audio data are transmitted by a single network cable. PoE (IEEE802.3af) is supported.

Dimensions (LxWxH): 123.5 x 79 x 35mm. Weight: 156g

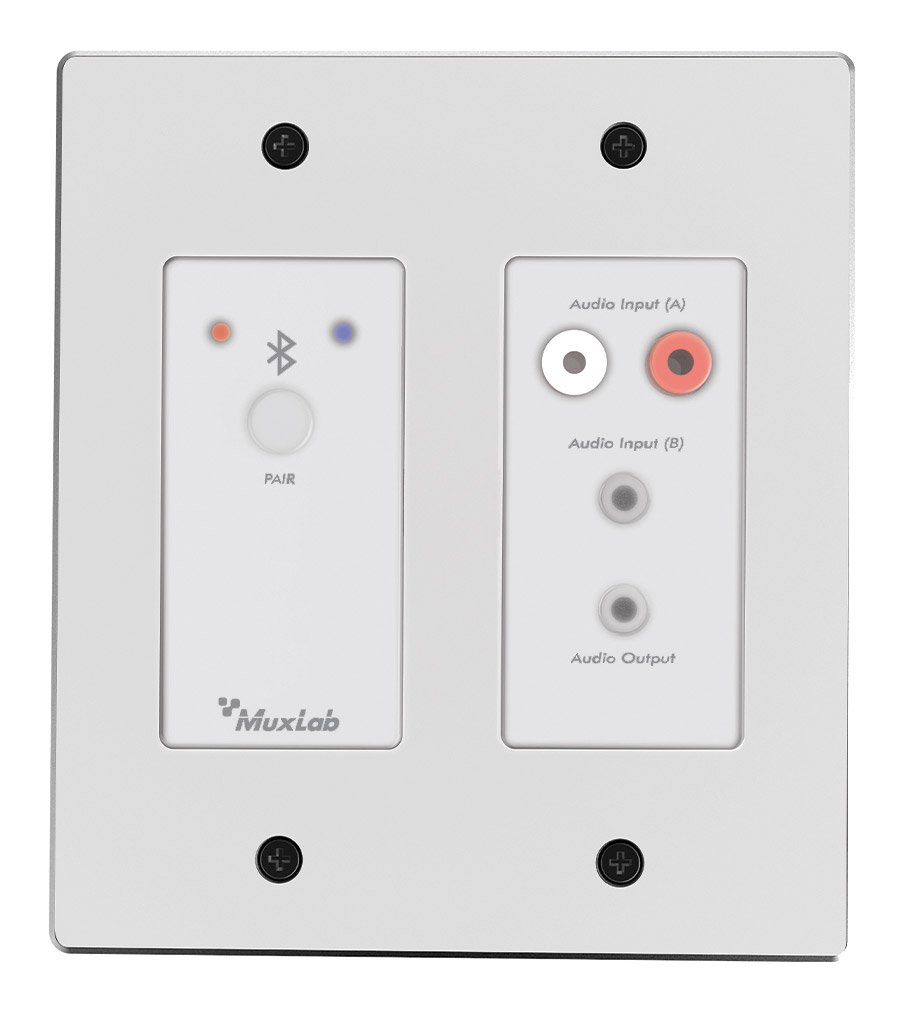

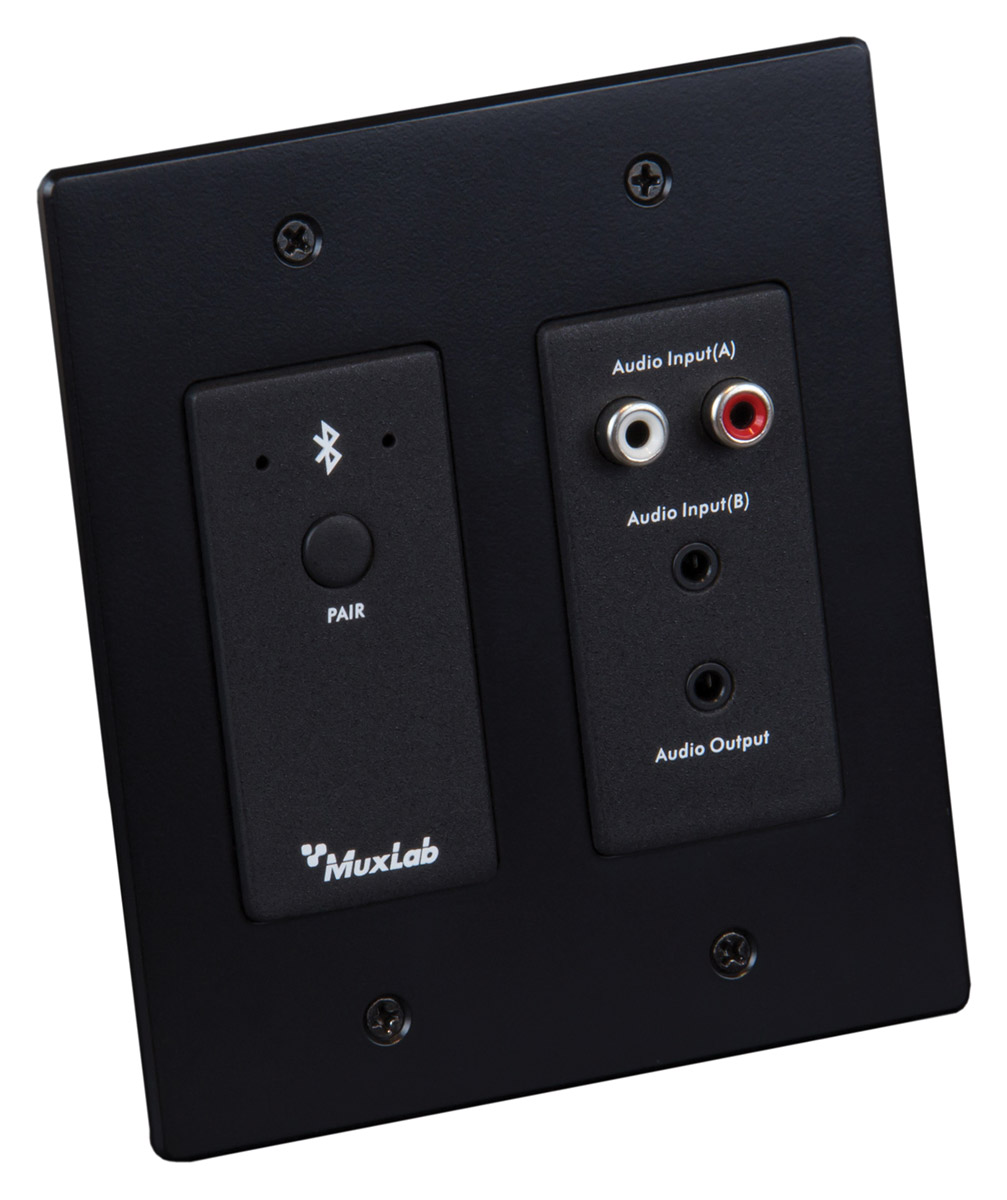

500555 - Bluetooth/Analogue to Dante

Available in black (500555) or white (500555-WH) finishes, this faceplate has the Bluetooth and Dante functionality of 500554, however in addition analogue audio via dual RCA (phono)/3.5mm jack input connection or 3.5mm jack output is available. The panel has been designed to be compatible with a double single gang US wall box with Decora faceplate. Note the wall box and Decora faceplate are not included.

Dimensions (LxWxH): 123.5 x 109.1 x 30mm. Weight: 310g

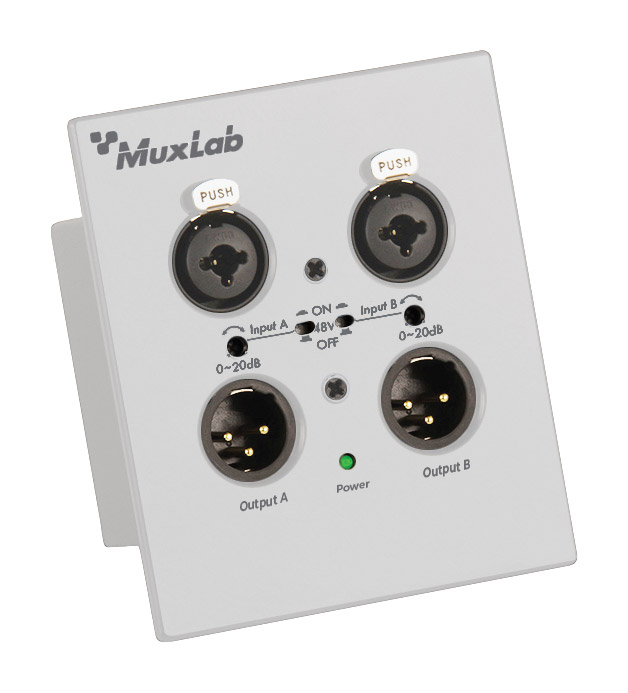

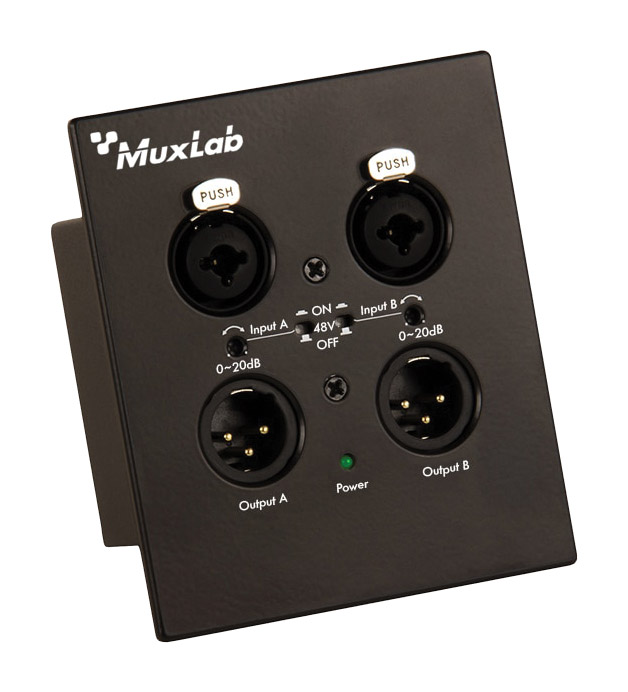

500558 - Analogue to Dante

Available in black (500558) or white (500558-WH) finishes, this faceplate allows two channels of analogue audio via 3-pin XLR to be interfaced with Dante compatible equipment. The analogue inputs offer a frequency response of 20Hz to 20kHz either balanced or unbalanced. The panel has been designed to be compatible with a double single gang US wall box with Decora faceplate. Note the wall box and Decora faceplate are not included.

Dimensions (LxWxH): 135.5 x 79 x 35mm. Weight: 156g

  Description Price £
ex. VAT
Add to basket
Delivery
MUXLAB 500765 AUDIO CONVERTER Analogue to Dante, 4-channel, mic/line Phoenix inputs Stock code: 89-0989
Available in 1‑2 weeks Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
£526.00
MUXLAB 500551 AUDIO CONVERTER Analogue to Dante, 2-channel, balanced/unbalanced Stock code: 89-1042
Available in 3‑4 weeks Ordered on demand, available in 3‑4 weeks. Need it sooner? Call us
£225.80
MUXLAB 500552 AUDIO CONVERTER Dante to analogue, 2-channel, balanced/unbalanced Stock code: 89-1043
Available in 3‑4 weeks Ordered on demand, available in 3‑4 weeks. Need it sooner? Call us
£225.80
MUXLAB 500550 AUDIO CONVERTER Dante to USB, 2-channel Stock code: 89-1041
Available in 3‑4 weeks Ordered on demand, available in 3‑4 weeks. Need it sooner? Call us
£225.80
MUXLAB 500554 AUDIO CONVERTER Bluetooth to Dante, wallplate, black Black Stock code: 89-1044
Available in 3‑4 weeks Ordered on demand, available in 3‑4 weeks. Need it sooner? Call us
£489.30
MUXLAB 500554-WH AUDIO CONVERTER Bluetooth to Dante, wallplate, white White Stock code: 89-1045
Available in 3‑4 weeks Ordered on demand, available in 3‑4 weeks. Need it sooner? Call us
£489.30
MUXLAB 500555 AUDIO CONVERTER Bluetooth/analogue to Dante, wallplate, black Black Stock code: 89-1046
Available in 3‑4 weeks Ordered on demand, available in 3‑4 weeks. Need it sooner? Call us
£602.00
MUXLAB 500555-WH AUDIO CONVERTER Bluetooth/analogue to Dante, wallplate, white White Stock code: 89-1047
Available in 3‑4 weeks Ordered on demand, available in 3‑4 weeks. Need it sooner? Call us
£602.00
MUXLAB 500558 AUDIO CONVERTOR Analogue XLR to Dante, 2-channel, black Black Stock code: 89-1048
Available in 3‑4 weeks Ordered on demand, available in 3‑4 weeks. Need it sooner? Call us
£526.00
MUXLAB 500558-WH AUDIO CONVERTOR Analogue XLR to Dante, 2-channel, white White Stock code: 89-1049
Available in 3‑4 weeks Ordered on demand, available in 3‑4 weeks. Need it sooner? Call us
£526.00
