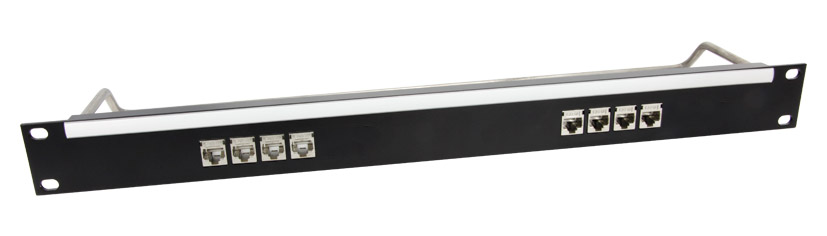

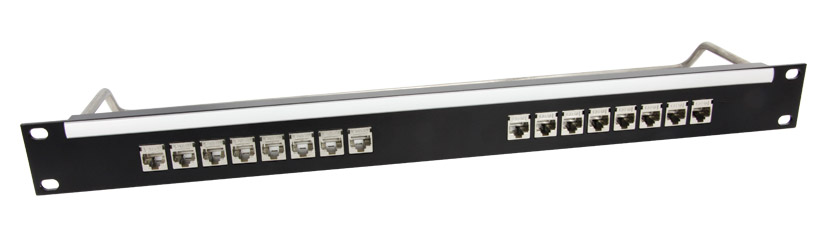

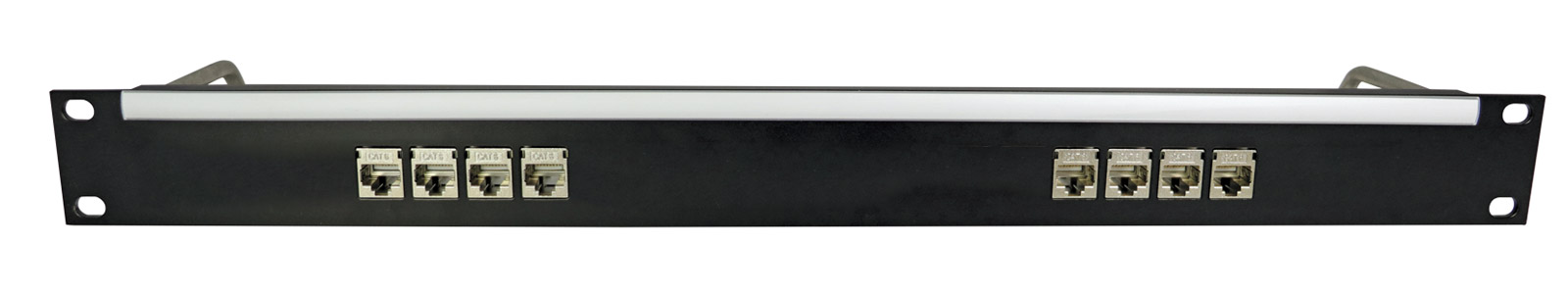

A range of panels supplied fully populated with feed-through (also known as double-sided or back-to-back) screened RJ45 CAT6A sockets enabling system patching and easy connection of portable or external equipment. A printable designation-strip with snap-on cover and a lacing-bar are fitted as standard.
Manufactured from a lightweight, but extremely rigid, broadcast style, aluminium extrusion. The individual connectors are mounted in a sub chassis and are presented flush with the face of the front panel. Panels are fitted with a cranked lacing-bar, giving easy access to the rear sockets. The connectors are arranged in equal groups either side of a central divide and a designation-strip holder with snap-on cover is fitted on the front panel to permit the supplied paper strips to be inserted before or after installation; 7.5mm of printable height is available. Templates for printing designation strip labels, available as a DWG file for AutoCAD and compatible applications, can be downloaded from the appropriate product page on the Canford website. Spare 432mm designation-strip paper (not suitable for printers) and covers are available, see CANFORD DESIGNATION STRIPS - Snap-on.

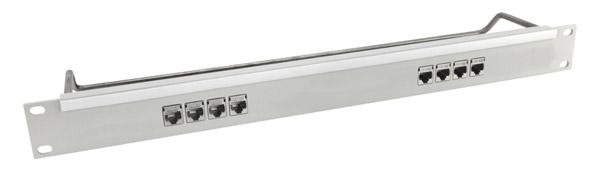

Available finished in Dawn Grey (BS4800-10A03), Dark Grey or Black.
Optional accessories: see Canford Rackbracket - Recess mounting brackets.
The CAT6A (or CAT6 'Augmented') system utilises all four pairs of copper wires and supports 10GBASE-T (10Gb/s) Ethernet over distances up to 100m.
Maximum transmission distances:
|100m (90m solid core installed + 10m stranded flexible patch cable) in any alien crosstalk environment.
|55m (45m + 10m patch) in favourable alien crosstalk environment, 37m (27m + 10m patch) in hostile alien crosstalk environments, i.e. where data cables are bundled together.
|100m (90m + 10m patch) in any alien crosstalk environment.
Manufactured by Canford.
