CANFORD SDV - HDTV DIGITAL VIDEO CABLE (0.6/2.8)

2 items

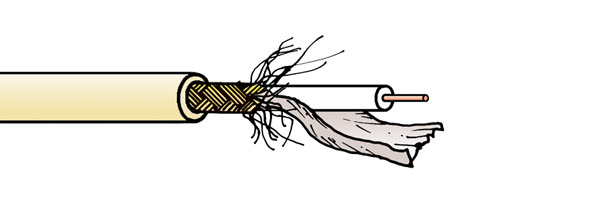

CANFORD SDV CABLE Cream
CANFORD SDV CABLE Cream

Coaxial 75 ohm cable specifically for serial digital video signals, with compact size.

Note: See suitable connectors for this cable in the drop-down lists below the full cable specification.

Technical Specification:
Cable size group: X
Inner conductor: 0.6mm plain copper
Dielectric: Foam polyolefin, 2.80mm O.D.
Screen 1: Aluminium/polyester/aluminium tape longitudinally applied
Screen 2: 0.122mm tinned copper braid, optical coverage 95%
Construction: Coaxial cable
Jacket: PVC, turquoise, cream, OD 4.5 ± 0.3mm
Impedance: 75 ± 1% ohms
Capacitance: 56pF/m nominal
Return loss: 26dB nom. 50-300 MHz
22dB nom. 300-3000 MHz
18dB nom. 3000–3500 MHz
15dB nom. 3500–5000 MHz
Attenuation: MHz 10 100 200 750 1500 3000 6000 9000 12000
dB/100m 5.1 11.4 15.7 30.2 42.4 61.3 89.4 109.5 126.4
Weight: 3.2kg/100m
Reel length: 1000m
Cut lengths: Available in any multiple of 1 metre
Suitable crimp connectors outlined below.

BNC Male - 12G

BNC Male, right-angled - 12G

BNC Male - 3G

BNC Male - HD-SDI - 1.5G

BNC Female - 12G

BNC Female - HD-SDI - 1.5G

Micro BNC Male - 12G

DIN 1.0/2.3 Male - 12G

DIN 1.0/2.3 Male - 3G

DIN 1.0/2.3 Male, right-angled - 3G

F Connector

Description Price $
Add to basket
CANFORD SDV CABLE Turquoise Turquoise Stock code: 36-506
10225 in stock Need more?
1+ $1.65
100+ $1.31
500+ $1.29
1,000+ $1.23
per metre
CANFORD SDV CABLE Cream Cream Stock code: 36-509
Discontinued. See the product page for suggested alternatives.
