CANFORD UNIVERSAL SERIES CONNECTORS

44 items
CANFORD D-SERIES BNC (solder), 75 ohm, black
CANFORD D-SERIES BNC (solder), 75 ohm, blackCANFORD IMPEDANCE CONVERTER AES/EBU, Universal mounting, BNC socket to solder terminalsCANFORD IMPEDANCE CONVERTER AES/EBU, Universal mounting, BNC socket to solder terminalsCANFORD XLR BLANKING PLATE D-series, blackCANFORD D-SERIES BNC 12G UHD (double-sided) 75 ohm, M3 tapped mounting holes, blackCANFORD D-SERIES BNC 12G UHD (double-sided) 75 ohm, M3 tapped mounting holes, blackCANFORD D-SERIES BNC (solder), 75 ohm, M3 tapped mounting holes, blackCANFORD D-SERIES BNC (solder), 75 ohm, M3 tapped mounting holes, black

A range of connectors, switches and cable glands mounted on insulating mouldings which fit the Neutrik ‘D’ series cut-out. Suitable for use with Canford Universal Connection Panels, connector plates, stageboxes or any application where a ‘D’ series cut-out is available and a non-’D’ housing connector (subject to size) must be fitted.

Available in two mounting versions, Plain 3.2mm diameter mounting holes or, on flush mounting black types only, M3 metal threaded inserts, permitting a faster assembly as shake-proofs and nuts are not required.

Flush Type

Flush mounting types are available with Black, White or Dawn Grey plates, pre-fitted with a variety of connectors, switches and cable glands. The white versions are well matched to connector plates used with electrical flush or surface mount boxes but care must be taken not to exceed the rear cable minimum bend radius, particularly with double sided BNC and F types.

Recessed Type

The recessed style is available in black, fitted with BNC double-sided or solder socket connectors. The front of the BNC socket is level with the front surface of the moulding giving enough room to connect and disconnect a BNC plug without the need for a fitting tool.

Impedance Converter AES/EBU

An AES/EBU impedance converter with a BNC female connector and wire termination points, mounted on an insulated plate suitable for mounting in a Neutrik ‘D’ series cut out.

For full details, see CANFORD IMPEDANCE CONVERTER AES/EBU – Universal mounting

Blank Plates

Black, White or Dawn Grey un-drilled flush plates are available and may be used to blank off unused holes in panels, stageboxes etc., or may be drilled to accept a wide variety of other connectors, switches, cable grommets and indicators.

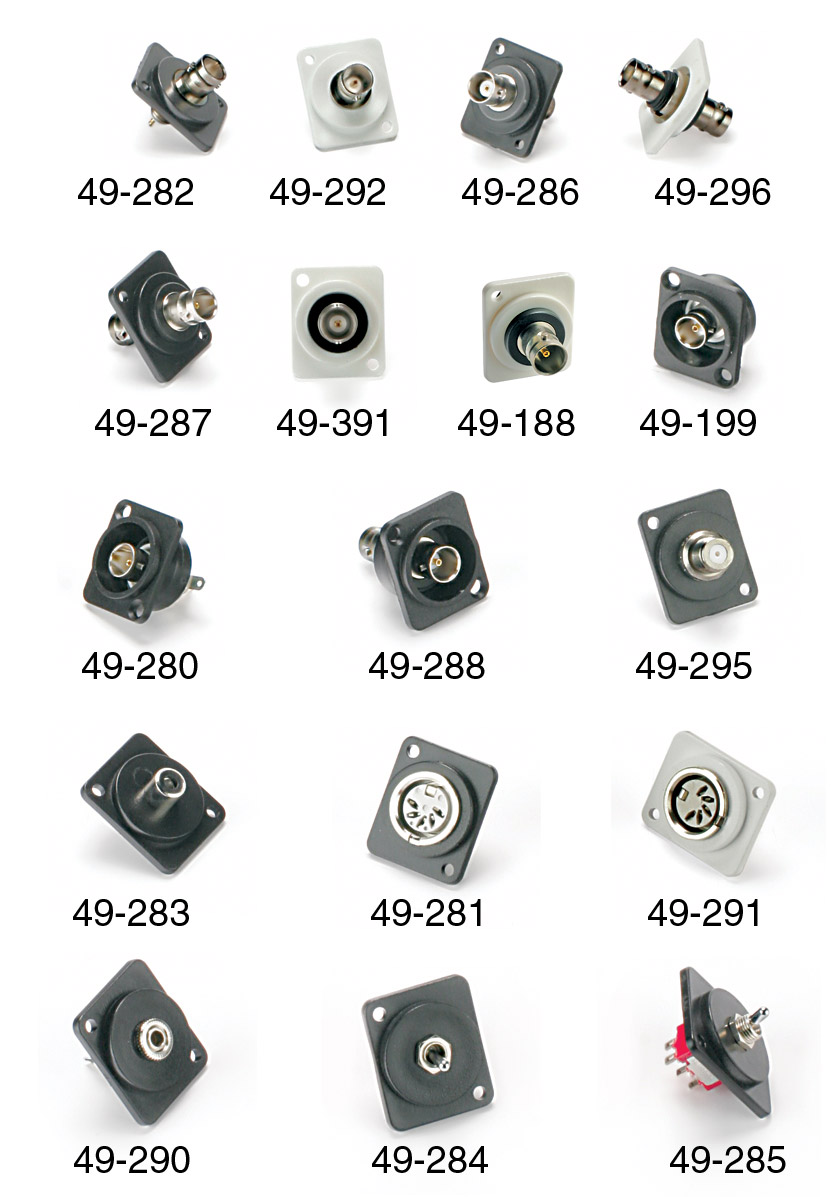

Connection Options
Fitted Connection Recessed/Black Flush/Black Flush/White Flush/Grey M3 Tapped
BNC 12G (double-sided) 75 ohm 49-289 49-395 49-396 - 49-491
BNC (double-sided), 50 ohm 49-280 49-286 49-296 - 49-490
BNC (solder), 75 ohm 49-199 49-282 49-292 - 49-492
RJ11 (double-sided) - 49-181 - - -
5 pin DIN - 49-281 49-291 - 49-494
Phono (RCA) - 49-283 - - -
Switch, single pole changeover - 49-284 - - -
Switch, double pole changeover - 49-285 - - -
3.5mm 3-pole jack, black - 49-290 - - 49-493
F-type connector (double-sided) - 49-295 - - -
Binding post terminal (black) - 49-383 - - -
Binding post terminal (Red) - 49-385 - - -
Impedance Converter AES/EBU - 20-210 - - -
M16 Plain cable gland - 49-175 - - -
M16 Spiral cable gland - 49-176 - - -
M20 Plain cable gland - 49-177 - - -
M20 Spiral cable gland - 49-178 - - -
Blank Plate - 40-991 40-990 40-996 40-299

Optional accessories: M3 x 10mm Pozidrive mounting-screws, pan head (Pan) or countersunk head (Csk), zinc-plated clear-passivated (ZCP), or chemical black (CH/BLK); nuts, locknuts and shakeproof washers. Other screw and nut styles and sizes are also available, see Fasteners.

‘Universal connection system’ is a series designation originated by Canford Audio®. Copyright Canford Audio 1987.

Manufactured by Canford.

Description Price $
 Add to basket
CANFORD D-SERIES BNC (solder), 75 ohm, black Black Stock code: 49-282
Manufactured to order, available in 2‑3 weeks. Need it sooner? Call us
1+ $18.43
10+ $16.76
50+ $15.85
100+ $14.00

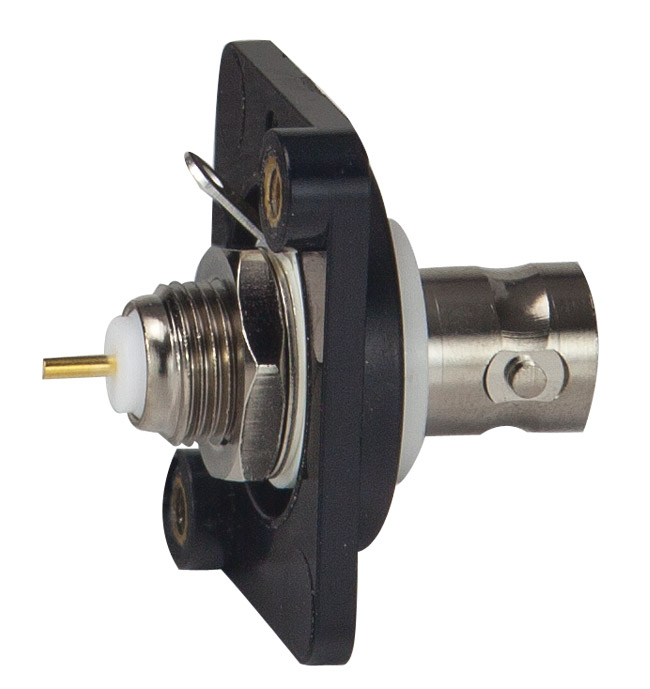

CANFORD D-SERIES BNC (solder), 75 ohm, M3 tapped mounting holes, black Black Stock code: 49-492
Manufactured to order, available in 2‑3 weeks. Need it sooner? Call us
1+ $19.10
10+ $17.38
50+ $16.43
100+ $14.51
CANFORD D-SERIES BNC (solder), 75 ohm, white White Stock code: 49-292
Manufactured to order, available in 2‑3 weeks. Need it sooner? Call us
1+ $18.55
10+ $16.87
50+ $15.95
100+ $14.10
CANFORD D-SERIES BNC (double-sided), 50 ohm, black Black Stock code: 49-286
173 in stock Need more?
1+ $7.30
10+ $6.65
50+ $6.28
100+ $5.55
CANFORD D-SERIES BNC (double-sided), 50 ohm, M3 tapped mounting holes, black Black Stock code: 49-490
67 in stock Need more?
1+ $8.15
10+ $7.41
50+ $7.01
100+ $6.19
CANFORD D-SERIES BNC (double-sided), 50 ohm, white White Stock code: 49-296
Manufactured to order, available in 2‑3 weeks. Need it sooner? Call us
1+ $11.24
10+ $10.22
50+ $9.67
100+ $8.55
CANFORD D-SERIES BNC 12G UHD (double-sided) 75 ohm, black Black Stock code: 49-395
530 in stock Need more?
1+ $9.18
10+ $8.35
50+ $7.89
100+ $6.98
CANFORD D-SERIES BNC 12G UHD (double-sided) 75 ohm, M3 tapped mounting holes, black Black Stock code: 49-491
230 in stock Need more?
1+ $10.08
10+ $9.17
50+ $8.67
100+ $7.66
CANFORD D-SERIES BNC 12G UHD (double-sided) 75 ohm, white White Stock code: 49-396
1 in stock Need more?
1+ $12.69
10+ $11.55
50+ $10.91
100+ $9.65
CANFORD D-SERIES Recessed BNC (solder), 75 ohm, black Black Stock code: 49-199
2 in stock Need more?
1+ $15.34
10+ $13.96
50+ $13.20
100+ $11.66
CANFORD D-SERIES Recessed BNC (double-sided), 50 ohm, black Black Stock code: 49-280
82 in stock Need more?
1+ $7.20
10+ $6.55
50+ $6.19
100+ $5.47
CANFORD D-SERIES Recessed BNC 3G HD (double-sided) 75 ohm, black Black Stock code: 49-185
Discontinued. See the product page for suggested alternatives.
CANFORD D-SERIES Recessed BNC 12G UHD (double-sided), 75 ohm, black Black Stock code: 49-289
3 in stock Need more?
1+ $9.25
10+ $8.42
50+ $7.95
100+ $7.02
CANFORD D-SERIES MINI DIN 6 S-VHS and P/S2 (double-sided), black Black Stock code: 49-189
Discontinued. Unfortunately we are not currently able to offer an alternative.
CANFORD D-SERIES F-type connector (double-sided) (Canare true 75 ohm), black Black Stock code: 49-295
7 in stock Need more?
1+ $21.20
10+ $19.30
50+ $18.24
100+ $16.11
CANFORD D-SERIES Phono (RCA), black Black Stock code: 49-283
Manufactured to order, available in 2‑3 weeks. Need it sooner? Call us
1+ $11.58
10+ $10.53
50+ $9.96
100+ $8.80
CANFORD D-SERIES 5 pin DIN, black Black Stock code: 49-281
6 in stock Need more?
1+ $15.65
10+ $14.24
50+ $13.45
100+ $11.90
CANFORD D-SERIES 5 pin DIN, M3 tapped mounting holes, black Black Stock code: 49-494
Manufactured to order, available in 2‑3 weeks. Need it sooner? Call us
1+ $15.49
10+ $14.10
50+ $13.32
100+ $11.78
CANFORD D-SERIES 5 pin DIN, white White Stock code: 49-291
Manufactured to order, available in 2‑3 weeks. Need it sooner? Call us
1+ $15.16
10+ $13.79
50+ $13.04
100+ $11.52
CANFORD D-SERIES 3.5mm 3-pole jack, black Black Stock code: 49-290
19 in stock Need more?
1+ $11.58
10+ $10.53
50+ $9.96
100+ $8.80
CANFORD D-SERIES 3.5mm 3-pole jack, M3 tapped mounting holes, black Black Stock code: 49-493
1 in stock Need more?
1+ $6.81
10+ $6.19
50+ $5.86
100+ $5.17
CANFORD D-SERIES RJ11 (double-sided), black Black Stock code: 49-181
19 in stock Need more?
1+ $8.63
10+ $7.85
50+ $7.42
100+ $6.55
CANFORD D-SERIES Binding post terminal (black), black BlackBlack Stock code: 49-383
1 in stock Need more?
1+ $8.47
10+ $7.71
50+ $7.29
100+ $6.43
CANFORD D-SERIES Binding post terminal (red), black RedBlack Stock code: 49-385
Manufactured to order, available in 2‑3 weeks. Need it sooner? Call us
1+ $8.47
10+ $7.71
50+ $7.29
100+ $6.43
CANFORD D-SERIES RJ11 (double-sided), white White Stock code: 49-182
Discontinued. See the product page for suggested alternatives.
CANFORD D-SERIES Switch, single pole changeover, black Black Stock code: 49-284
1 in stock Need more?
1+ $20.98
10+ $19.10
50+ $18.05
100+ $15.95
CANFORD D-SERIES Switch, double pole changeover, black Black Stock code: 49-285
Manufactured to order, available in 2‑3 weeks. Need it sooner? Call us
1+ $27.51
10+ $25.03
50+ $23.66
100+ $20.90
CANFORD IMPEDANCE CONVERTER AES/EBU, Universal mounting, BNC socket to solder terminals Stock code: 20-210
Assembled to order, available in 2‑3 weeks. Need it sooner? Call us
$51.64
CANFORD XLR BLANKING PLATE D-series, black Black Stock code: 40-991
Out of stock but available to backorder, stock expected: 18/07/2025.
1+ $1.42
10+ $1.29
50+ $1.22
100+ $1.09
CANFORD XLR BLANKING PLATE D-series, tapped mounting holes, black Black Stock code: 40-299
3381 in stock Need more?
1+ $2.65
10+ $2.41
50+ $2.28
100+ $2.01
CANFORD XLR BLANKING PLATE D-series, white White Stock code: 40-990
1576 in stock Need more?
1+ $1.82
10+ $1.66
50+ $1.57
100+ $1.38
CANFORD XLR BLANKING PLATE D-series, dawn grey Dawn Grey Stock code: 40-996
331 in stock Need more?
1+ $1.13
10+ $1.02
50+ $0.96
100+ $0.86
M3 POZI SCREW Pan, MS, ZCP, 10mm (pack of 100) Stock code: 14-123
38 in stock Need more?
1+ $2.64
10+ $2.51
per pack
M3 POZI SCREW Pan, MS, CB, 10mm (pack of 100) Stock code: 14-398
Out of stock but available to backorder, stock expected: 18/07/2025.
1+ $4.89
10+ $4.65
per pack
M3 POZI SCREW Csk, MS, ZCP, 10mm (pack of 100) Stock code: 14-223
20 in stock Need more?
1+ $3.50
10+ $3.32
per pack
M3 POZI SCREW Csk, MS, CB, 10mm (pack of 100) Stock code: 14-323
76 in stock Need more?
1+ $3.71
10+ $3.52
per pack
M3 FULL NUT Hex, MS, ZCP (pack of 100) Stock code: 14-002
35 in stock Need more?
1+ $0.71
10+ $0.67
per pack
M3 NYLOC NUT Type P, MS, ZCP (pack of 100) Stock code: 14-081
23 in stock Need more?
1+ $4.86
10+ $4.62
per pack
M3 LOCK NUT Hex, MS, ZCP (pack of 100) Stock code: 14-092
Out of stock but available to backorder, stock expected: 11/07/2025.
1+ $2.72
10+ $2.59
per pack
M3 SHAKEPROOF WASHER MS, ZCP (pack of 100) Stock code: 14-752
53 in stock Need more?
1+ $2.04
10+ $1.93
per pack
CANFORD D-SERIES CABLE GLAND Plain, M16 Stock code: 49-175
31 in stock Need more?
1+ $11.26
10+ $10.24
50+ $9.67
100+ $8.55
CANFORD D-SERIES CABLE GLAND Plain, M20 Stock code: 49-176
28 in stock Need more?
1+ $11.79
10+ $10.73
50+ $10.14
100+ $8.96
CANFORD D-SERIES CABLE GLAND Spiral, M16 Stock code: 49-177
25 in stock Need more?
1+ $12.29
10+ $11.18
50+ $10.57
100+ $9.34
CANFORD D-SERIES CABLE GLAND Spiral, M20 Stock code: 49-178
24 in stock Need more?
1+ $14.34
10+ $13.05
50+ $12.33
100+ $10.89
