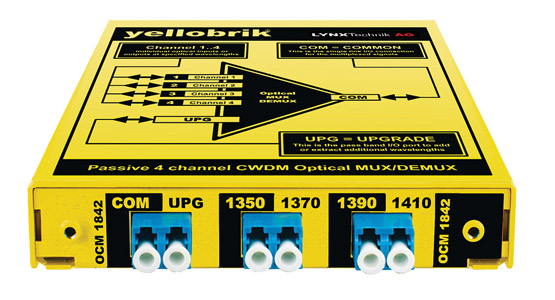

LYNX YELLOBRIK OCM 1842 PASSIVE CWDM OPTICAL MUX/DEMUX 4+1 exp Channel - 1350, 1370, 1390, 1410nm

Stock code
90-3072
Brand
Lynx (Lynx Technik)
Model number
  • OCM 1842
LYNX YELLOBRIK OCM 1842 PASSIVE CWDM OPTICAL MUX/DEMUX 4+1 exp Channel - 1350, 1370, 1390, 1410nm
LYNX YELLOBRIK OCM 1842 PASSIVE CWDM OPTICAL MUX/DEMUX 4+1 exp Channel - 1350, 1370, 1390, 1410nm

Order

VAT / Delivery
$1,008.70
each (ex. VAT)
Ordered on demand, cancellations may incur charges, available in 3‑4 weeks. Need it sooner? Call us

LYNX YELLOBRIK CWDM OPTICAL MULTIPLEXERS

The yellobrik range of fibre optic converters from Lynx Technik AG includes a range of multiplexing units and precision CWDM ('Coarse Wavelength Division Multiplexing') SFP modules to enable up to 18 video, Ethernet and data signals to be combined on a single fibre link.

Signals of different wavelengths can flow simultaneously in either direction in a CWDM system.

CWDM multiplexing units are available in 4 channel or 9 channel versions, each with a UPG (upgrade) expansion port allowing them to be combined to enable up to 18 signals in a single fibre. Optical connections are via LC singlemode connectors. The following models are available, supporting wavelengths in accordance with ITU-T G.694.2:

OCM 1841: 1270, 1290, 1310 and 1330nm.
OCM 1842: 1350, 1370, 1390 and 1410nm.
OCM 1843: 1470, 1490, 1510 and 1530nm.
OCM 1844: 1550, 1570, 1590 and 1610nm.
OCM 1891: 1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410 and 1430nm.
OCM 1892: 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590 and 1610nm.

The modules can be used standalone or mounted in the optional RFR 1018 0.5U rack frame, which can accommodate combinations of one or two OCM 9-channel optical MUX/DEMUX modules or up to four OCM 4-channel modules, providing a secure mounting platform in any standard 19 inch rack.

The OCM series optical multiplexers are entirely passive devices, requiring no power supply and generating no heat. They can be used in conjunction with the following yellobrik fibre optic converters (together with an appropriate CWDM SFP module, see LYNX YELLOBRIK FIBRE OPTIC SFP MODULES - TX, TT and TR - CWDM):

Fibre Optic Video Receivers ORX 1802, ORR 1802 & ORX 1702
Fibre Optic Video Transmitters OTX 1842, OTT 1842 & OTX 1742
Fibre Optic SDI Video Transceiver OTR 1840
Fibre Optic Ethernet Transceiver OET 1540
Fibre Optic Serial Data & GPI Transceiver ODT 1540
Common specifications
Channel insertion loss: 2.7dB
UPG Insertion loss: 2.7dB
Polarisation dependant loss: 0.2dB maximum
Return loss: Greater than 45dB
Isolation: Better than 30dB to adjacent channel
Directivity: More than 55dB
Temperature dependant loss: Less than 0.005dB/degree C
Temperature dependant change of wavelength: Less than 0.003nm/degree C
Maximum input power: 500mw (single or full duplex operation)
Power consumption: None required (passive operation)
Dimensions
OCM 1841, OCM 1842, OCM 1843 and OCM 1844: 100 x 110 x 19mm
OCM 1891 and OCM 1892: 198 x 108 x 19mm

Please contact Technical Support for further information and advice on the most practical and cost-effective solution for the application.
