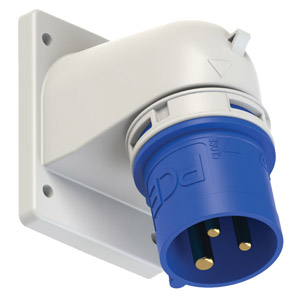

PCE 77713-6 SPLASHPROOF 16A PANEL MOUNTING APPLIANCE INLET, Angled, IP44, blue/grey

Stock code
42-767
Brand
PCE
Model number
  • 77713-6
Colour
  • BlueBlue
  • GreyGrey
PCE 77713-6 SPLASHPROOF 16A PANEL MOUNTING APPLIANCE INLET, Angled, IP44, blue/grey
PCE 77713-6 SPLASHPROOF 16A PANEL MOUNTING APPLIANCE INLET, Angled, IP44, blue/grey

Order

VAT / Delivery
$8.06
each (ex. VAT)
10+ $7.86
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
RoHS Compliant

PCE INDUSTRIAL AC MAINS POWER CONNECTORS

Industrial plugs, sockets and appliance inlets from PCE designed to meet BS EN 60309 - 1:1999, BS EN 60309 - 2:1999 standards.

Available in splashproof IP44 or watertight IP67 variants the standard blue/grey connector housing is manufactured from Polycaprolactam (PA6) with brass contact pins and are rated 220 - 240V AC, 16 amp, 32 amp or 63 amp, 2-pole plus earth.

For connectors with black housing see PCE INDUSTRIAL AC MAINS POWER CONNECTORS - Midnight range.

Model Rating Mounting Type Straight/angled IP rating
013-6 16A Cable Plug Straight IP44
0132-6 16A Cable Plug Straight IP67
613-6 16A Panel Appliance inlet Straight IP44
6132-6 16A Panel Appliance inlet Straight IP67
513-6 16A Wall Appliance inlet Straight IP44
5132-6K 16A Wall Appliance inlet Straight IP67
77713-6 16A Panel Appliance inlet Angled IP44
777132-6 16A Panel Appliance inlet Angled IP67
213-6 16A Cable Socket Straight IP44
2132-6 16A Cable Socket Straight IP67
113-6 16A Wall Socket Straight IP44
1132-6 16A Wall Socket Straight IP67
313-6 16A Panel Socket Straight IP44
3132-6 16A Panel Socket Straight IP67
413-6 16A Panel Socket Angled IP44
4132-6 16A Panel Socket Angled IP67
023-6 32A Cable Plug Straight IP44
0232-6 32A Cable Plug Straight IP67
623-6 32A Panel Appliance inlet Straight IP44
6232-6 32A Panel Appliance inlet Straight IP67
523-6 32A Wall Appliance inlet Straight IP44
5232-6 32A Wall Appliance inlet Straight IP67
77723-6 32A Panel Appliance inlet Angled IP44
777232-6 32A Panel Appliance inlet Angled IP67
223-6 32A Cable Socket Straight IP44
2232-6 32A Cable Socket Straight IP67
123-6 32A Wall Socket Straight IP44
1232-6 32A Wall Socket Straight IP67
323-6 32A Panel Socket Straight IP44
3232-6 32A Panel Socket Straight IP67
423-6 32A Panel Socket Angled IP44
4232-6 32A Panel Socket Angled IP67
033-6 63A Cable Plug Straight IP67
633-6 63A Panel Appliance inlet Straight IP67
533-6 63A Wall Appliance inlet Straight IP67
733-6 63A Panel Appliance inlet Angled IP67
2335-6 63A Cable Socket Straight IP67
1335-6 63A Wall Socket Straight IP67
3335-6 63A Panel Socket Straight IP67
4335-6 63A Panel Socket Angled IP67
