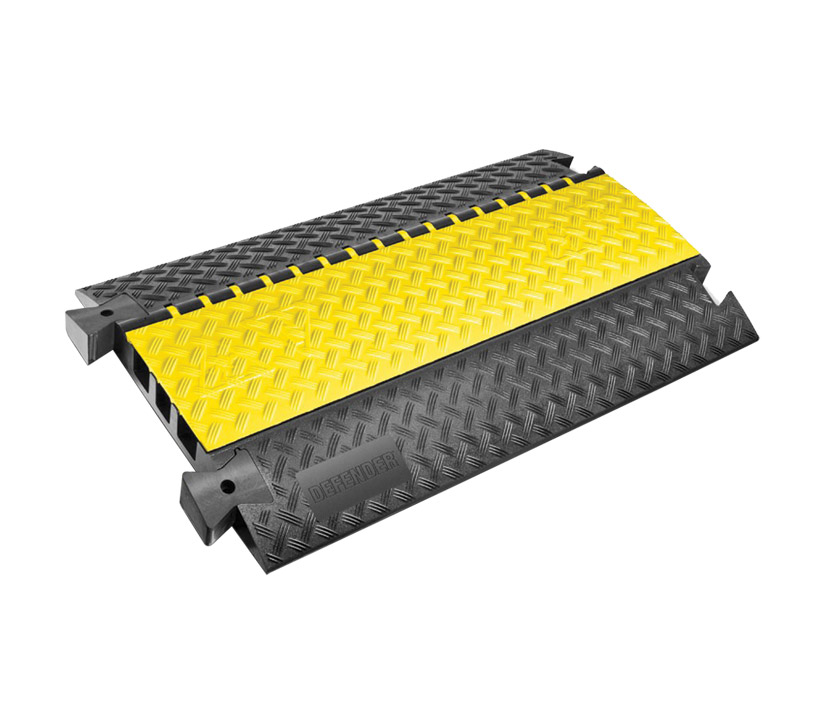

DEFENDER 3 CABLE PROTECTOR 3-Channel, straight, 1000 x 600mm, yellow

Stock code
39-345
Brand
Defender
Model number
  • 3
  • 85002
Colour
  • YellowYellow
DEFENDER 3 CABLE PROTECTOR 3-Channel, straight, 1000 x 600mm, yellow
DEFENDER 3 CABLE PROTECTOR 3-Channel, straight, 1000 x 600mm, yellowDEFENDER 3 CABLE PROTECTOR 3-Channel, straight, 1000 x 600mm, yellow

DEFENDER CABLE CROSSOVERS

Defender cable crossovers are for use across roadways and walkways and open venues, in fact anywhere that cables are left exposed in hostile environments such as construction sites, warehousing, carnivals, exhibitions and music events. Most are coloured black and yellow for high visibility and consequently maximum public safety, however some models are coloured blue to better signify wheelchair compatibility. The top surfaces have anti-slip treads with no ridges or crevices to trip a pedestrian.

Each section interlocks using connector plugs to make continuous lengths, and will withstand vehicle loadings (from a typical 200mm x 200mm tyre imprint) of up to 5 tons so even the largest articulated truck can pass over safely. The body of the crossover is manufactured from pressure-moulded polyurethane, which has a non-skid top surface and bottom, even when wet. The lid is moulded polyethylene, which is highly durable in extreme weather conditions and has a patented self-cleaning hinge that omits internally collected dirt to retain a clear track.

Defender cable protectors manufactured from a recycled/new mix TPU and are PVC-free, making them better for the environment. Fire protection class E requirements according to DIN EN 13501-1 are met, as well as having resistance to oil, petrol and short-term contact with solvent.

MINI Series - 3x small channels

Defender Mini cable protections has been designed for use in trade fairs, walkways, marketplaces, workshops, warehouses, events, and department stores. It features three small channels, with channels 1 and 3 measuring 35 x 30mm, and the middle channel (2) measuring 35 x 35mm. A 2.0 tonnes per 20cm sq. maximum load capacity offers a channel filling height of 19.8mm, whilst a 1.2 ton load offers a filling height of 25.2mm. Straight sections measure 1005 x 290mm and have a height of 50mm. A LUX version offers semi-transparent lid for use with light ropes for better ramp identification in dark areas.

Defender MINI series straight sections (85200/85200BLK/85200LUX) measure 1005 x 290 x 50mm (LxWxH).

Defender suggest MINI series cable crossovers are not suitable for road traffic.

Series Components
Model # Description Colour Weight
MINI 85200 Straight section Yellow 5.9kg
MINI BLK 85200BLK Straight section Black 5.9kg
MINI LUX 85200LUX Straight section, semi-transparent lid Yellow 5.9kg
MINI L 85210L 45-degree corner, left Yellow 2.4kg
MINI R 85210R 45-degree corner, right Yellow 2.4kg
MINI END RAMP 85208M End ramp, female connectors Black 0.375kg
MINI END RAMP 85208F End ramp, male connectors Black 0.375kg

3 Series - 3x large channels

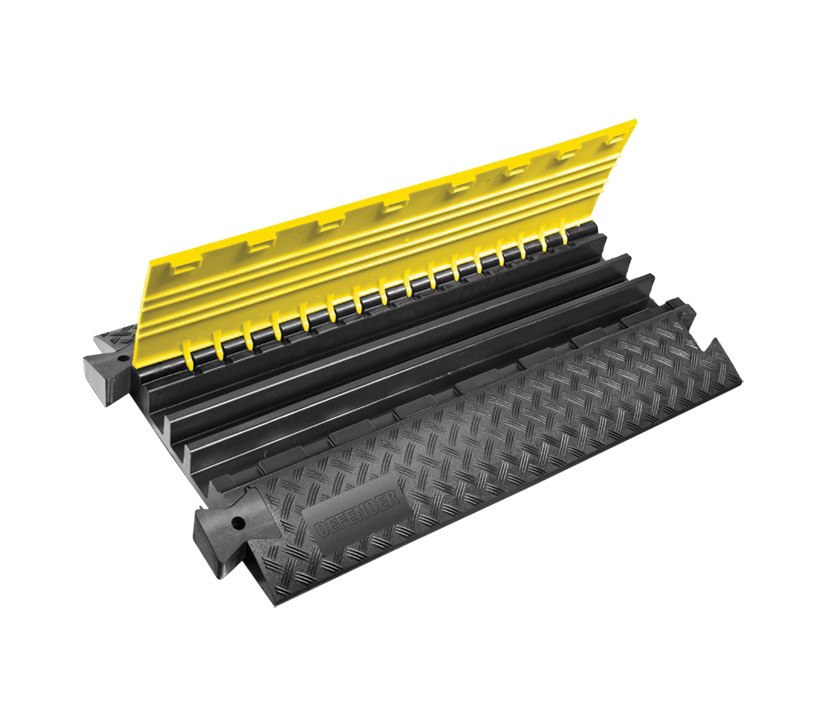

Defender 3 has been designed for use in trade fairs, market places, workshops, warehouses, shopping centres and department stores. The cable protection has a profile height of 73mm and has three cable channels, one (the centre channel) measuring 45 x 50mm and two measuring 52 x 49mm. A load-bearing capacity of 5.0 tonnes per 20cm sq. and class B2 (DIN 4102) fire resistance, along with resistance to oil, acids, solvents, and petrol ensure safe crossing for both pedestrians and vehicles.

Defender 3 series consists of the 85002 straight section measuring 1000 x 600 x 73mm (LxWxH), 85009 45-degree curve, 85008 end ramp and 85002LUX straight section with a semi-translucent lid measuring 1000 x 600 x 73mm (LxWxH). The semi-translucent lid of the 85002LUX allows the user to insert LED lighting strip into one or more of the channels to illuminate the crossover section for extra visibility and safety.

Additional 85004 connector plugs are also available to fit the Defender 3 series cable crossover protection. As they are removable, it is not necessary to replace an entire crossover because a connector lug was ripped off.

Series Components
Model # Description Colour Weight
3 85002 Straight section Yellow 23.6kg

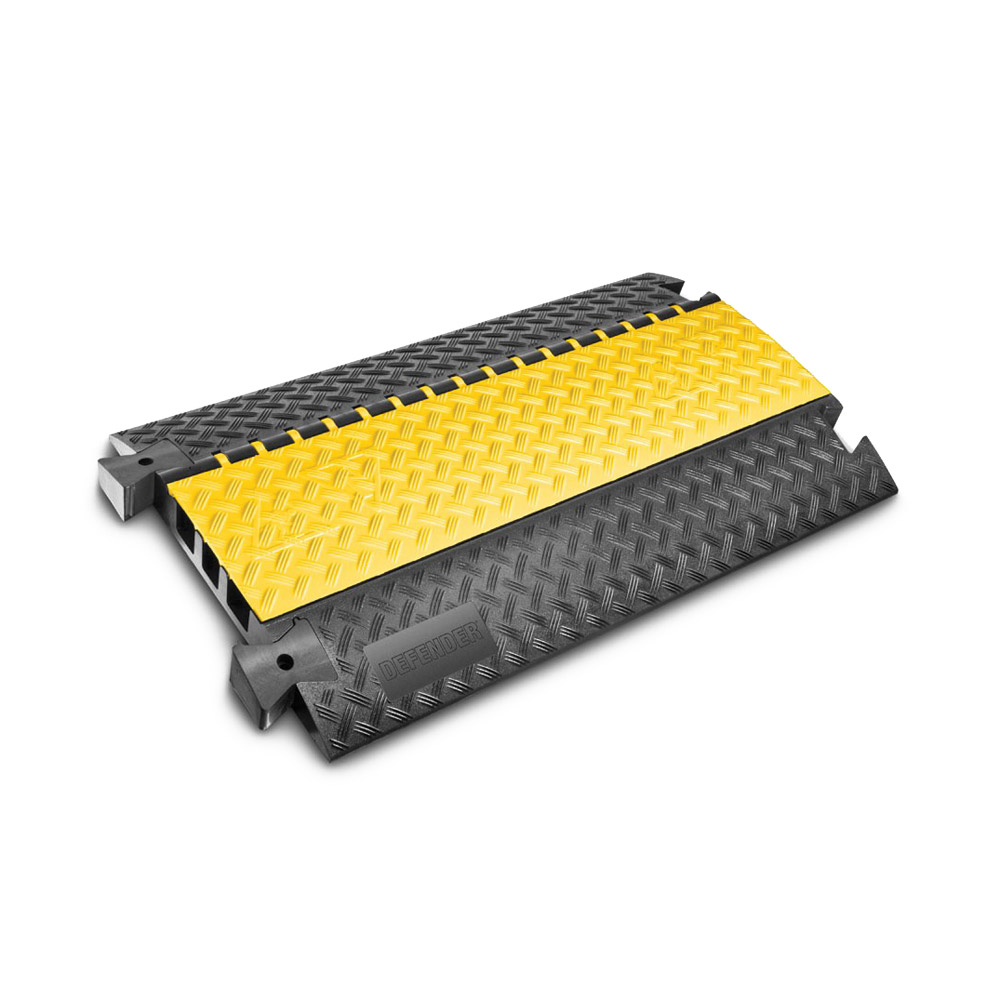

3 LUX 85002LUX Straight section, semi-transparent lid Yellow 23.6kg

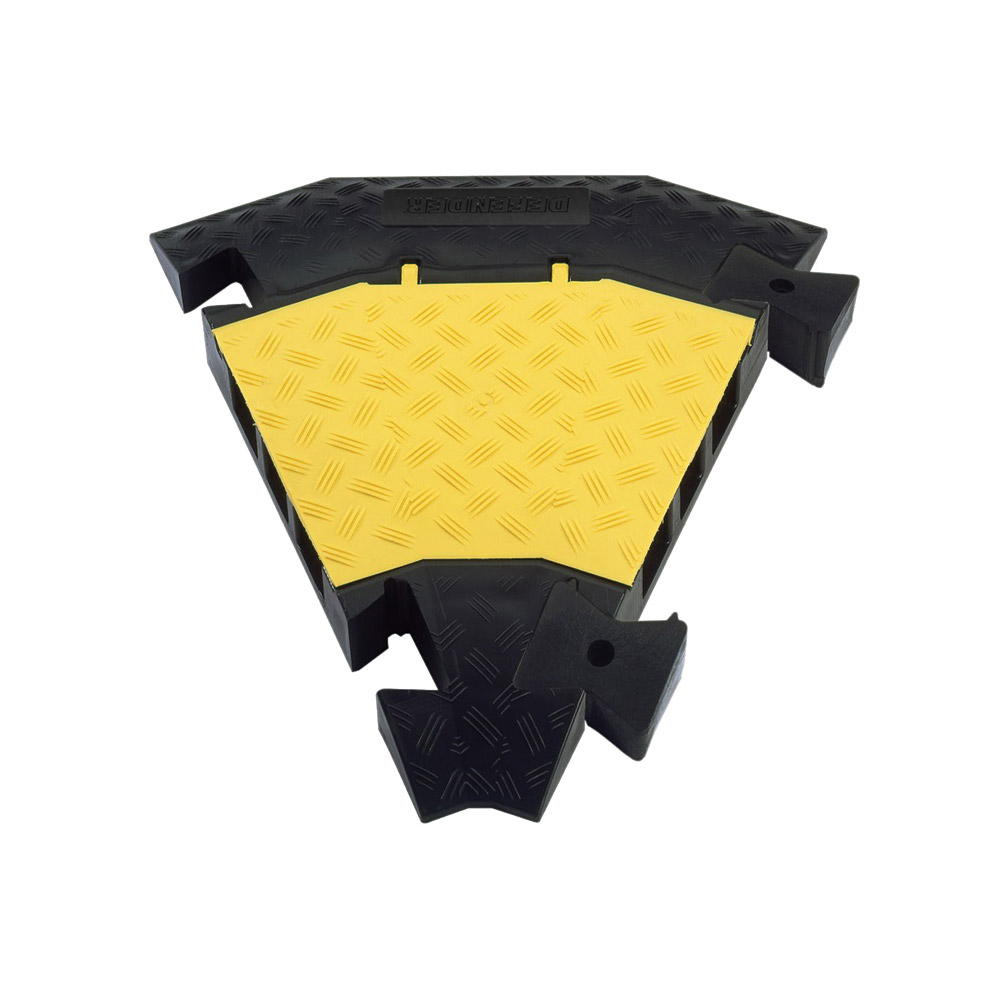

3 C 85009 45-degree curve Yellow 5.6kg
3 ER 85008 End ramp Black 1.9kg
3 CP 85004 Connector plug Black 0.1kg

3 2D Series - 3x large channels, modular

Defender 3 2D is a series of modular cable crossovers that allow linking in both length and depth orientation. This can be particularly useful for larger events whereby three channels may not be enough for the cable runs applicable. A 6-degree ramp can also be connected to allow wheelchairs or vehicles to cross without issue.

The cable crossover has three channels, with the centre channel of 45 x 50mm is flanked by two channels measuring 52 x 49mm. A half-length version is available as 86900250, and is particularly useful when creating a brick-style layout for strength. Maximum load is approximately 5.0 tonnes per 20cm sq. Adapters are available to ensure compatibility with Defender 3 series crossover - when using in lengthways layout.

Series Components
Model # Description Colour Weight

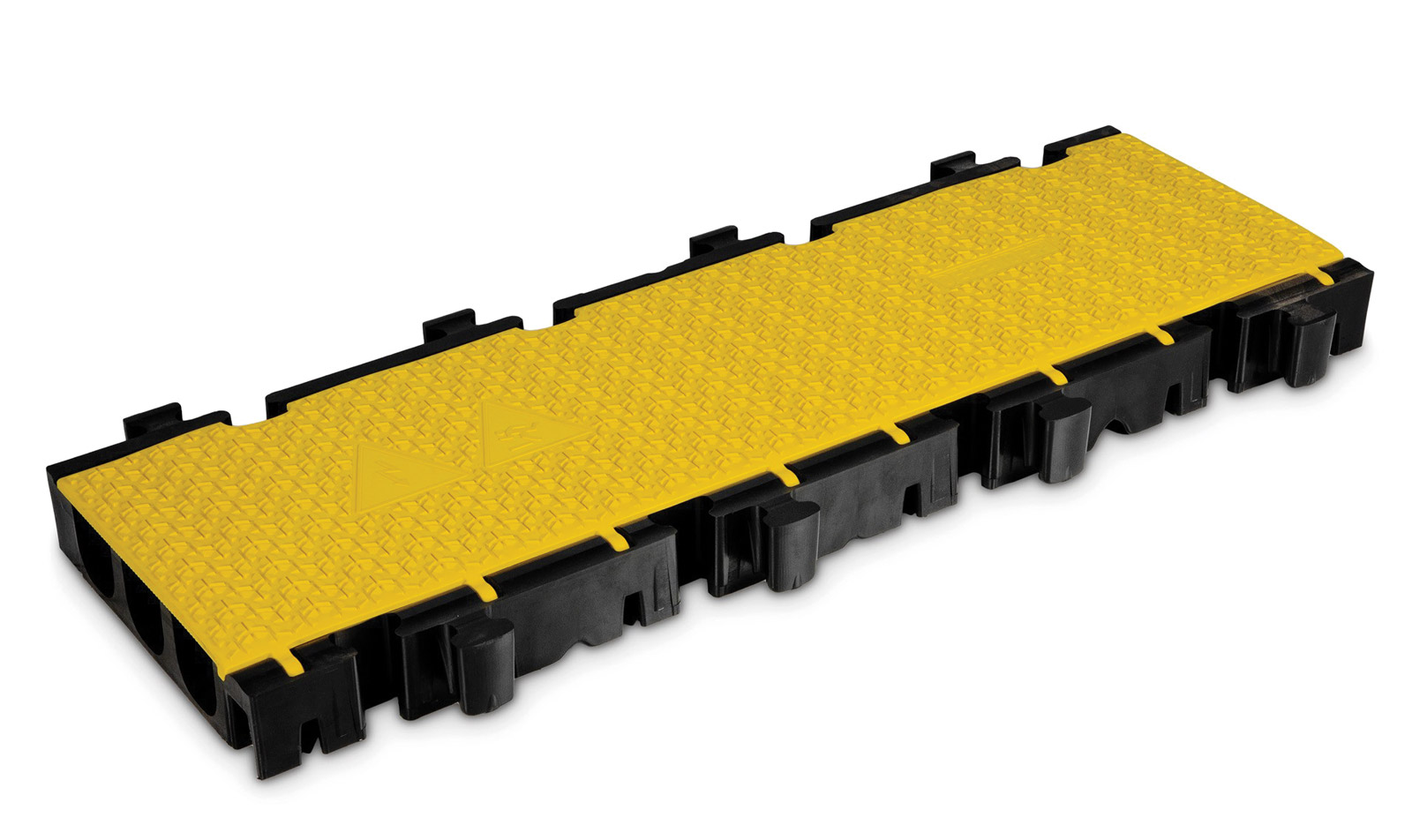

3 2D M 869002 Straight section Yellow 13.5kg

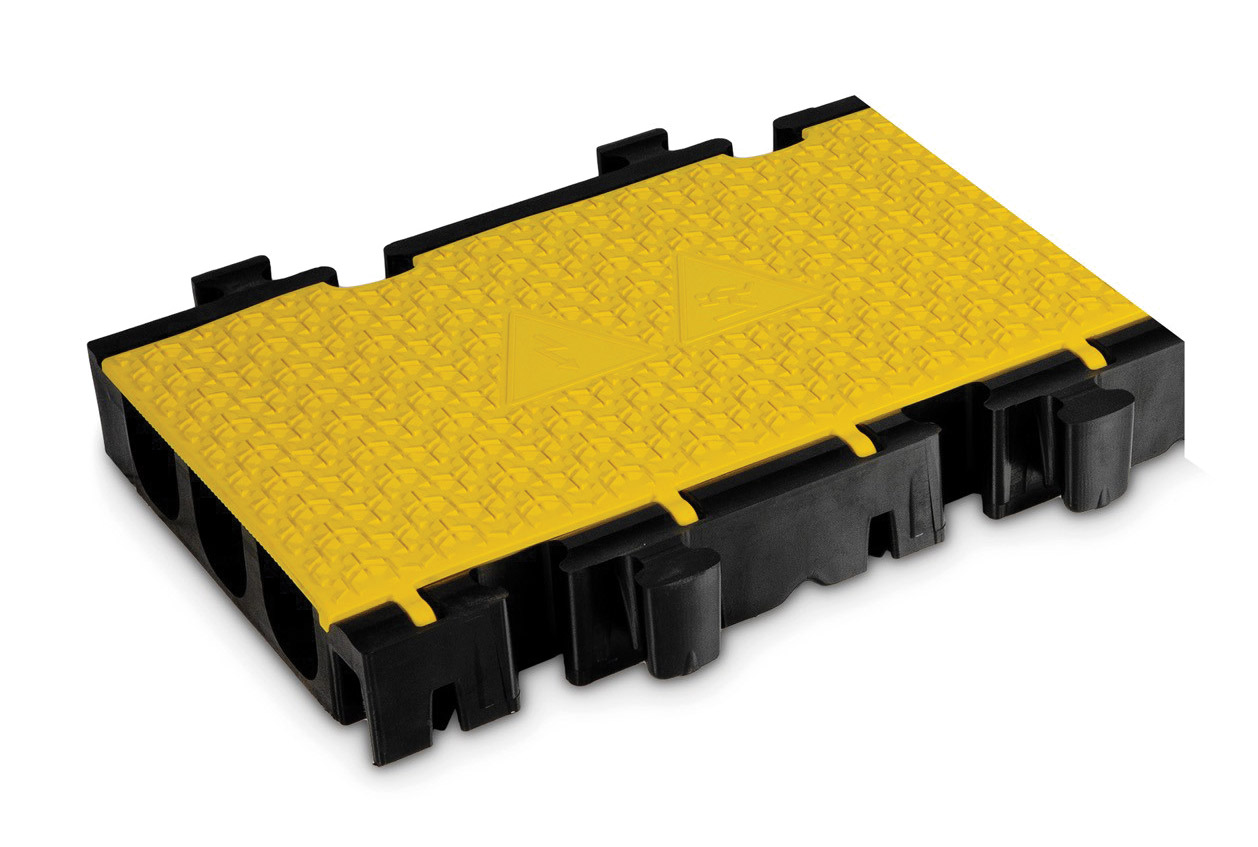

3 2D HV 86900250 Straight section, half length Yellow 6.75kg
3 2D R 8690021 Wheelchair accessible transition ramp Black 15.9kg

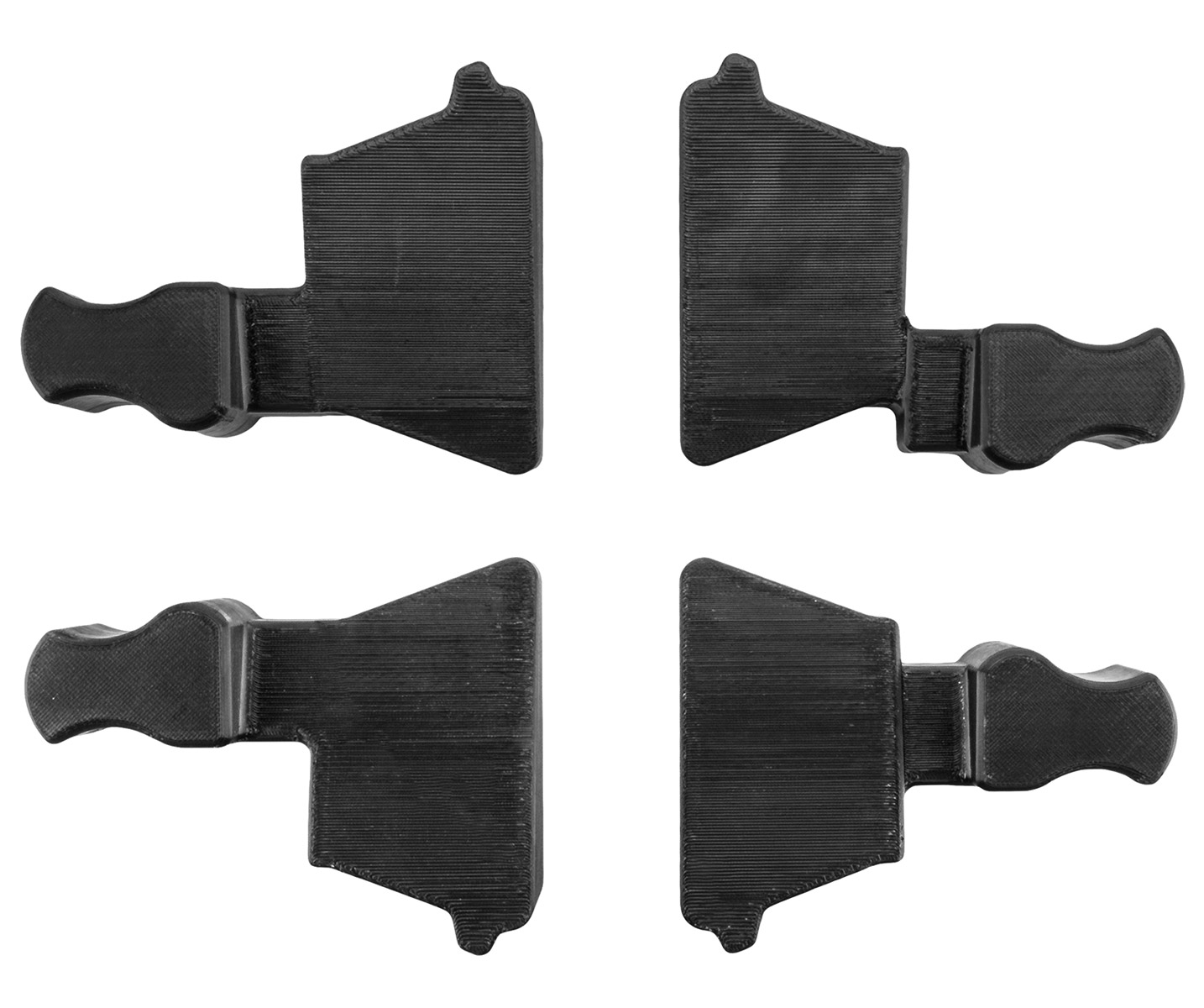

3 2D ADAPTER SET 8690021ASET Connecting adapters Black 0.56kg

MIDI 5 Series - 5x medium channels

Like Defender 3 series, MIDI 5 has been designed for use in trade fairs, market places, workshops, warehouses, shopping centres and department stores, and shares many of the same features as the Defender 3 series with the main difference being a lower height profile of 52mm and five cable ducts. Each of the five channels are 34 x 36mm and are protected by a hinged, yellow polyethylene lid. Like the Defender 3 series, the Defender MIDI 5 has class B2 fire resistance and is resistant to oils, acids, solvents and petrol. It has been tested to have a load-bearing capacity of 5 tonnes per 20cm sq.

Defender MIDI 5 series consists of the 8530 straight section measuring 890 x 542 x 52mm (LxWxH), 85340 45-degree curve, 85308 end ramp and 85300LUX straight section with semi translucent lid measuring 890 x 542 x 52mm (LxWxH). The semi translucent lid of the 85300LUX allows the user to insert LED lighting strip into one or more of the five available channels to illuminate the crossover section for extra visibility and safety.

Wheelchair ramp modules, coloured blue for identification are available, and are compatible with the predrilled 85300BLUE only. 85306 is a pack of six ramp pieces measuring 250mm each. Defender recommend using three pieces on each side of the cable crossover to form a total width of 80cm when used in conjunction with optional 85307L/85307R end pieces.

85304 replacement/spare connector plugs are also available as an optional spare part.

Series Components
Model # Description Colour Weight
MIDI 5 85300 Straight section Yellow 13.4kg
MIDI 5 BLU 85300BLUE Straight section Blue 13.4kg
MIDI 5 BLK 85300BLK Straight section Black 13.4kg
MIDI 5 LUX 85300LUX Straight section, semi-transparent lid Yellow 13.4kg
MIDI C 85310 45-degree curve Yellow 3.4kg
MIDI C BLK 85310BLK 45-degree curve Black 3.4kg
WHEELCHAIR RAMP LINE 85306 Wheelchair ramp, centre module Blue 4.91kg
WHEELCHAIR RAMP LINE ER L 85307L Wheelchair ramp, left end cap Blue 0.63kg
WHEELCHAIR RAMP LINE ER R 85307R Wheelchair ramp, right end cap Blue 0.63kg
MIDI ER 85308 End ramp Black 0.9kg
MIDI CON 85304 Connecting adapters Black 0.56kg

MIDI 5 2D Series - 5x medium channels, modular

Available in yellow or blue finish, this cable crossover has five channels all measuring 34.5 x 38.6mm. Like Defender 3 2D, MIDI 5 2D if of modular design and therefore allows linking in both length and depth orientation. This can be particularly useful for larger events whereby three channels may not be enough for the cable runs applicable. The maximum load is approximately 5.0 tonnes per 25 x 30cm and is commonly used in locations where trucks or forklifts are crossing.

A 6-degree ramp can also be connected to allow wheelchairs or vehicles to cross without issue. Alternatively, 869302, a short depth ramp for non-wheeled crossover can be used. A complete wheelchair crossover set can be purchased as 869300SETBLU. This set includes ramps for both sides along with the central cable protection measuring a total of 1000 x 1185mm. All blue ramps have an embossed wheelchair logo for identification.

A half-length version is available as 869350/869350BLU, and is particularly useful when creating a brick-style layout for strength. Maximum load is approximately 5.0 tonnes per 20cm sq. Adapters are available to ensure compatibility with Defender 3 series crossover - when using in lengthways layout.

Series Components
Model # Description Colour Weight
MIDI 5 2D 869300 Straight section Yellow 11.4kg
MIDI 5 2D BLU 869300BLU Straight section Blue 10.2kg
MIDI 5 2D HV 869350 Straight section, half length Yellow 5.7kg
MIDI 5 2D BLU HV 869350BLU Straight section, half length Blue 5.1kg
MIDI 5 2D SET BLU 869300SETBLU Complete crossover ramp set Blue 27.2kg
MIDI 5 2D R 869301 Wheelchair accessible transition ramp Black 9.5kg
MIDI 5 2D R BLU 869301BLU Wheelchair accessible transition ramp Blue 8.5kg
MIDI 5 2D RS 869302 Ramp, short Black 4.3kg
MIDI 5 2D ADAPTER AE F 869300AEF End ramp, female connections Yellow 3.8kg
MIDI 5 2D ADAPTER AE M 869300AEM End ramp, male connections Yellow 3.8kg
MIDI 5 2D ADAPTER SET 869301ASET Connecting adapters Black 0.56kg

ULTRA L Series - 2+2 extra-large channels

Designed for 'extra-heavy-duty' environments, Defender Ultra L cable crossover has two main channels measuring 120 x 113mm, and two outer channels measuring 33 x 55mm.

Ultra L series has a Shore A hardness of 88 +/-4, and an approximate load capacity of 5.0 tonnes per 20cm sq. Fire resistance is in accordance with Class E DIN EN 13501-1, and the crossover is resistant to oil, petrol, and short-term contact with solvent.

Series Components
Model # Description Colour Weight
ULTRA L 85600 Straight section Yellow 31.9kg
ULTRA L LUX 85600LUX Straight section, semi-transparent lid Yellow 31.9kg

ULTRA L2 Series - 2+4 extra-large channels

Designed for 'extra-heavy-duty' environments such as construction sites, warehouses or other places of heavy traffic, Defender Ultra L2 cable crossover has two main channels measuring 108 x 110mm, and four outer channels with a 25mm diameter.

Ultra L series has a Shore A hardness of 88 +/-4, and an approximate load capacity of 5.0 tonnes per 25 x 30cm. Fire resistance is in accordance with Class E DIN EN 13501-1, and the crossover is resistant to oil, petrol, and short-term contact with solvent. Ultra L2 series also have a 15mm diameter fixing hole on each corner of the cable crossover for use in street installations.

Series Components
Model # Description Colour Weight
ULTRA L2 85601 Straight section Yellow 27.4kg
ULTRA L2 LUX 85601LUX Straight section, semi-transparent lid Yellow 27.4kg

Recognised by Canford

Some products in this category are Recognised by Canford due to Defender’s environmental consideration while designing and manufacturing. Here’s how Defender explain their recycled manufacturing process:

"Most companies nowadays place high value on sustainability, and so do we. And most probably so does your company. This is why we recycle over 90% of the DEFENDER® materials in-house – from shredding to granulating. We even monitor the whole process here on our production premises. We know exactly which materials we are processing. Everything comes from Germany and exclusively from certified companies. DEFENDER continually recycles granulate and is an official recycler of materials from Bayer, BASF and DOW Chemical.

After processing the raw material from our German certified suppliers, the granulate remains in our recycling loop. At the end of their life cycle, the cable protectors are reprocessed into new granulate and the whole process is repeated.

DEFENDER products contain no environmentally harmful PVC."
