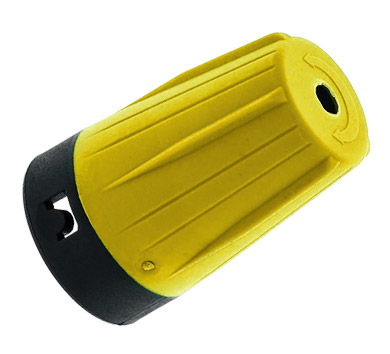

NEUTRIK BST-BNC-4 BNC REAR TWIST CABLE BOOT Yellow

Stock code
48-654
Brand
Neutrik
Model number
  • BST-BNC-4
Colour
  • YellowYellow
NEUTRIK BST-BNC-4 BNC REAR TWIST CABLE BOOT Yellow
NEUTRIK BST-BNC-4 BNC REAR TWIST CABLE BOOT Yellow

NEUTRIK BNC CONNECTORS - Male, cable - Crimp - 3G HD-SDI - Rear Twist

This range of high quality BNC connectors offers excellent mechanical and electrical performance and simple assembly. Precision machined components give true 75 ohm impedance and excellent return-loss, even at frequencies up to 4.5GHz, making them suitable for 3Gb/s HD-SDI 1080p, SD-SDI and analogue video. A compact variation on the traditional BNC twist-lock connector, mating / un-mating is achieved by twisting the whole connector, rather than just an awkward knurled front coupling nut as on conventional styles.

The integral cable strain relief boot gives an extended area of grip making these ideal for recessed connection panels or high-density termination panels , where restricted access to the ‘head’ of a conventional connector might be an issue. An integral black cable boot is standard with each connector (unless ordered in dissassembled packs - see ordering note at foot of group description) and provides strain relief. Additional coloured boots, for easy cable identification, may be ordered separately and substituted at the time of assembly. BST-BNC boots are for use with NBNC type connectors, BST-BLC boots are for use with NBLC type connectors. A rubber cap with cable attachment loop is also available.

Both the centre pin and outer screen (braid) are crimped using a Neutrik crimp tool and die-set, see NEUTRIK CRIMP TOOLS - Co-axial connectors.

The correct size connector and corresponding crimp dies must be used for each cable.

Sizes for popular cables are listed and stocked, versions for other cables are available to special order, please contact Technical Support.

Required accessories: Neutrik crimp tool and die-set.
Optional accessories: Colour coded cable strain relief boots.

Connector Canford Canare Draka Belden Other Hex Hex Pin
cables cables cables cables cables crimp crimp crimp
die die die
code size mm size mm
NBTC75B-FI4 179DT DIE-R-BNC-PDC 4.06 1.6
NBTC75B-NN5 SDV-M 0.41/1.9AF DIE-R-BNC-PDC 4.53 1.6
NBNC75B-DD6 1855A DIE-R-BNC-PDC 4.53 1.6
NBNC75B-FG7 SDV, SDV-X L-2.5CHWS 0.6/2.8AF 1855ENH Image 360 DIE-R-BNC-PG 5.0 1.6
NBNC75B-HK7 L-3CFB DIE-R-BNC-PJ 5.41 1.6 (sq.)
1.75 (hex)
NBNC75B-LP7 RG59B/U LV-61S 8241 DIE-R-BNC-PDC 6.47 1.6
NBNC75B-JP9 1505F DIE-R-BNC-PDC 6.47 1.6
NBNC75B-LP9 SDV-I-X-LFH L-4CFB 0.8/3.7AF 1505A Image 720 DIE-R-BNC-PDC 6.47 1.6
NBNC75B-LS7 VCS (PSF1/3) DIE-R-BNC-PS 7.01 1.6
NBNC75B-NP9 CAE VCB75 DIE-R-BNC-PDC 6.47 1.6
NBNC75B-TU11 1694A DIE-R-BNC-PU 7.36 1.6
NBNC75B-RU11 1694F DIE-R-BNC-PU 7.36 1.6
NBNC75B-UU11 SDV-L, SDV-L-X-LFH, 1.0/4.8AF Image 1000 DIE-R-BNC-PU 7.36 1.6
SDV-F, SDV-F-R, SDV-XF
NBNC75B-WU13 SDV-F-HD 1.2L/4.8Dz DIE-R-BNC-PU 7.36 1.6
NBNC75B-YY11 L-5CFB DIE-R-BNC-PY 8.23 1.6
NBNC75B-ZV14 1794A DIE-R-BNC-PY 8.23 1.6 (sq.)
1.75 (hex)
NBLC75B-VZ17 SDV-HD 7731A Image 2000 DIE-R-BNC-ZPLUS 10.0 1.8
Ordering note:

Some types are also available disassembled, in bulk packs of 100. Note that cable boots are NOT included, and should be ordered separately as required.
