MUXLAB LIVE STREAMING SOLUTIONS

500467 HDMI to USB, 4K/60

This video capture and streaming device allows a user to connect a HDMI device to a computer via USB 3.0 for recording. It is also designed for live video feeds, allowing a connection between 500791 HDMI camera and computer via USB. Once connected to a computer, 500467 is able to support 4K/60 sources, and streaming at resolution up to 1080p/60Hz. The device is OBS Studio and AMCap compatible, supporting a variety of sources including video cameras, gaming consoles, and media players.

The front facing panel of the unit has a single HDMI input connection, 3.5mm jack line-level audio input, and a 5VDC, 1A power connector via micro-USB port, for the included power supply. A 'Link' LED indicates the reception of input signal. The rear facing panel hosts an audio output via 3.5mm jack connection, USB 3.0 (Type A) output, and HDMI output for loop output to a HDMI display.

System requirements: Windows 7/8.1/10, Mac or Linux OS

Dimensions: 103 x 71 x 16 (DxWxH) mm. Weight: 0.38kg.

500705 SDI to USB, 1080p/60

In the same way as 500467, this device has been designed to convey video signals from source to USB output, however 500705 is compatible with SDI inputs and would therefore be more at home in a broadcast environment. 500705 supports 3G, HD, and SD-SDI source inputs, with auto-detection, before converting to USB 3.0 for computer interfacing. An SDI loop output is provided for monitoring the output signal on a secondary display.

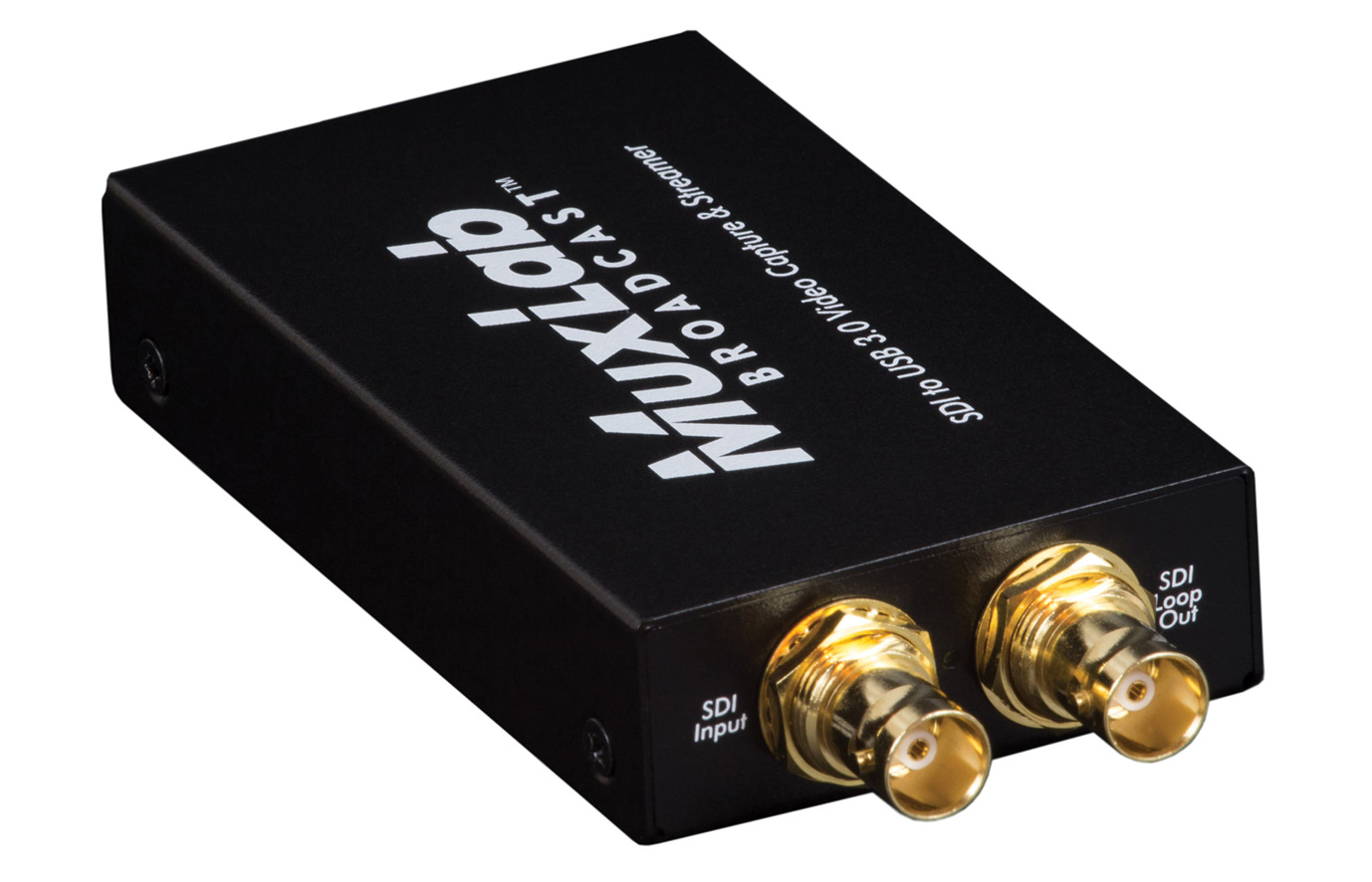

The front facing panel of the unit has two SDI connections, one for input and one for loop output. The rear facing panel hosts an audio line level input via 3.5mm jack connection, USB 3.0 (Type A) output, and sliding switch to set analogue or SDI audio use.

System requirements: Windows 7/8.1/10, Mac or Linux OS

Dimensions: 105 x 68 x 24 (DxWxH) mm. Weight: 0.4kg.

500786 Live Streaming Kit, single camera

Muxlab 500786 is a complete, single camera, live streaming kit that allows the user to stream video resolution up to 4K/30 over the internet. Designed for use with streaming online video services including YouTube and Facebook, this kit would be at home in places of education, video studios, fitness studios, houses of worship or conference rooms.

The kit includes an AV over IP transmitter, a single 500791 1080p PTZ camera, wireless lavalier microphone kit operating on the 2.4GHz frequency band, and HDMI cable. The user can download MuxStream Control App (for iOS and Android tablets, and Windows compatible PC) free of charge. This allows the user to manage the system set up, configure the transmitter, and manage the camera settings including pan, tilt, and zoom.

The connection panel of the transmitter unit houses a single HDMI connection for camera input, 3.5mm jack input for microphone or included wireless lavalier system, RJ45 Ethernet connector for connection to a wireless router or hub. There is also a single DC power input for included power supply, however alternatively the unit can be PoE powered.

Kit contents: 1x 500791 12X zoom HDMI/PTZ camera, 1x Transmitter unit, 1x 2m HDMI cable, 1x 2.4GHz lavalier wireless system, 1x Power supply

500786-PoE Live Streaming Kit, single camera, PoE

This has the same feature and functionality set as 500786 however it includes the 500932 30X zoom PTZ camera that supports PoE.

500785 Live Streaming Kit, multi-camera

This kit works in the same way as 500786, however including a 4x1 HDMI switcher, the user is able to use multiple cameras for more immersive video content.

Kit contents: 1x 500791 12X zoom HDMI/PTZ camera, 1x Transmitter unit, 1x 4x1 HDMI switcher, 1x IR emitter for 4x1 switcher, 2x 2m HDMI cable, 1x Lavalier wireless system, 1x Power supply

500785-PoE Live Streaming Kit, multi-camera, PoE

This has the same feature and functionality set as 500785 however it includes the 500932 30X zoom PTZ camera that supports PoE.

500791 PTZ Camera, 12X Zoom

A stand-alone, full HD 1080p camera has both HDMI and IP connectivity. Over HDMI the camera supports uncompressed video, and via IP H.254/H.265 compressed video is supported for internet streaming. A wide viewing angle of 72.5 degrees to 6.9 degrees horizontal and 44.8 degrees to 3.9 degrees vertical is complimented with a horizontal rotation range of -170 to +170 degrees, and a vertical rotation range of -30 to +90 degrees. This rotation can be controlled remotely via the included infrared remote control or via IP/RS232.

Along with 12X optical zoom and 16X digital zoom, the camera supports a focal length of 3.5mm to 42.3mm with apertures of F1.8 to F2.8. Shutter speeds of 1/30s to 1/10000s along with a minimum illumination of 0.5 Lux offer the ability to operate in bright or low-light conditions. The 1/2.7 inch CMOS sensor has a high SNR (signal to noise ratio) of greater than or equal to 55dB, and when combined with the camera's 2D and 3D noise reduction algorithm allows for low noise video under low light. White balance can be user selected with options including auto, indoor, outdoor, one push, and manual.

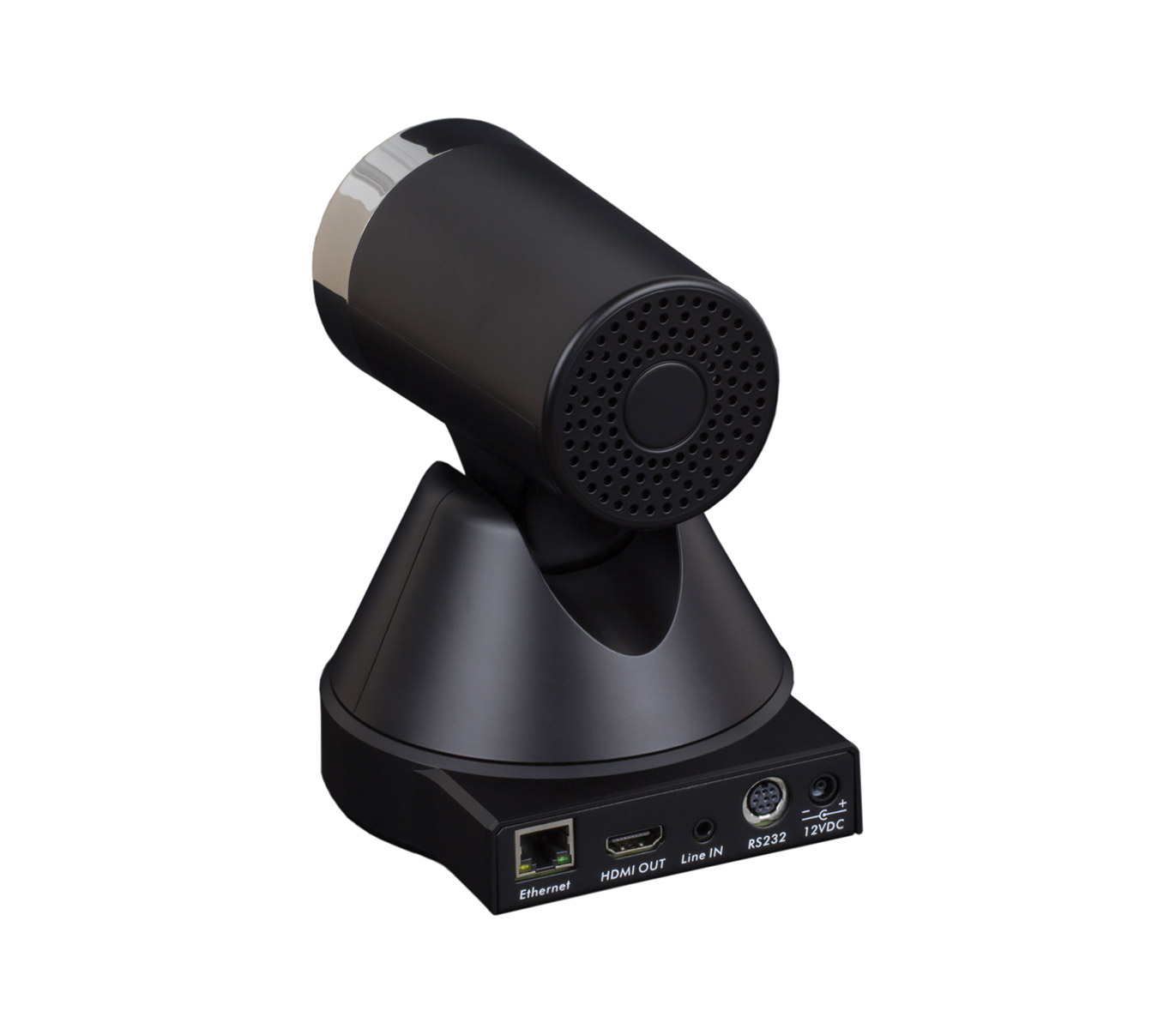

All connectivity is located on a panel on the side of the camera's base unit. This includes RJ45S Ethernet connection for control and video streaming, HDMI out, 2-channel line level audio input via 3.5mm jack connection, RS232 interface control (cable included), and 12V DC power connection for the included power supply.

Dimensions: 169 x 142 x 164mm. Weight: 0.92kg

500930 PTZ Camera, 12X Zoom

This camera has the same feature set as 500791 however it has been modified in order to work with 500785 and 500786 streaming kits.

500790 PTZ camera, 30X Zoom, PoE

A stand-alone, full HD 1080p camera with 30X zoom – making it a more powerful option than 500791. Designed for use in conferencing, education, places of worship, and live streaming, 500790 supports Panasonic’s 1/2.7inch CMOS sensor with 2.07million effective pixels. The high signal to noise ratio CMOS sensor is combined with both 2D and 3D noise reduction algorithms to ‘effectively reduce noise even under low light’.

The camera has a 60.7degree, wide-angle lens with focal length of 4.42m to 132.6mm and an aperture range of F1.8 to 2.8. Shutter speeds from 1/30s to 1/10000s can be utilised, with settings changeable via remote. Supports PoE. Connections include HDMI 1.3, CVBS (composite video) via 3.5mm jack connection, RS485 via 2-pin phoenix style connector, RS232 input via 8-pin DIN port, RS232 output via 8-pin DIN port, RJ45 Ethernet port, 3G-SDI via BNC, USB 2.0, 3.5mm jack connection for 2-channel audio output, and a single JEITA type connection for 12VDC power input.

Dimensions: 145.2 x 150.9 x 161.8mm. Weight: 1.52kg

500932 PTZ camera, 30X Zoom, PoE

This camera has the same feature set as 500790 however it has been modified in order to work with 500785-PoE and 500786-PoE streaming kits.
