A range of connector plates supplied with connectors ready fitted.

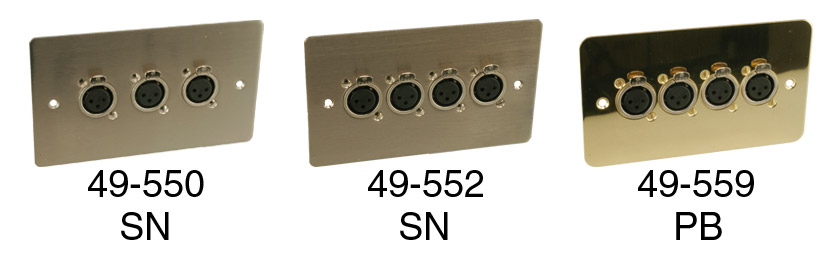

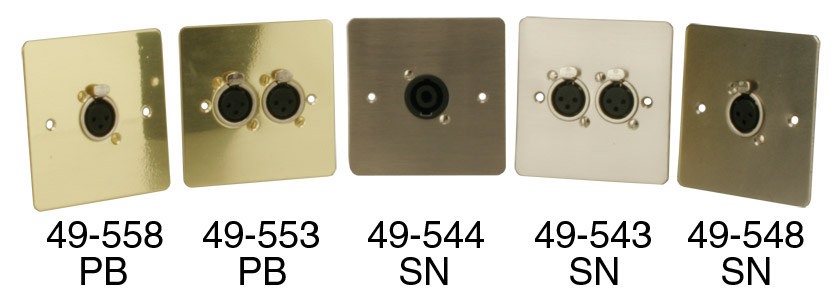

Type SN - Metal, satin nickel
Flat 1.5mm thick steel plates, with rounded corners. Plates are finished in satin nickel. Suitable black finished, cast alloy, rounded corner surface boxes are 49-549 and 49-551. Suitable flushmount boxes are 49-578 and 49-579.
Type PB - Metal, polished brass
Flat 1.5mm thick brass plates, with rounded corners. Plates are finished in polished brass. Suitable black finished, cast alloy, rounded corner surface boxes are 49-549 and 49-551. Suitable flushmount boxes are 49-578 and 49-579.

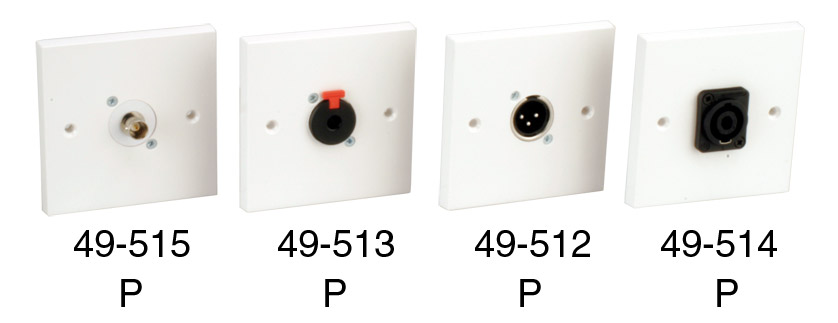

Type P - Plastic
Off-white hard plastic, with contours and rounded-corner style to match MK ‘Logic Plus’ and many other electrical fittings. Designed for connectors to be fitted on the front surface (mounting holes are not countersunk). Suitable rounded corner surface boxes are 49-4402 and 49-4404. Suitable flushmount boxes are 49-578 and 49-579.
Note; 47mm deep flushmount boxes are available for when additional depth is required, 49-601 and 49-602.
Plates are available fitted with the following connectors.
Neutrik XLR female, 3 pin panel connector (41-131)
Neutrik XLR male, 3 pin panel connector (41-136)
Neutrik NJ3FP6C, locking jack socket (43-273)
Neutrik NL4MP, 4 pole Speakon loudspeaker connector (43-042)
Canford BNC female, socket, solder 75 ohm, white (49-292)
Connector plates are supplied with mounting screws to suit standard electrical boxes.
For other combinations of plate/connectors, plates and connectors should be ordered separately as required - see Connector Plates for full details.
Manufactured by Canford.
