CABLE MARKERS - PRE FIT

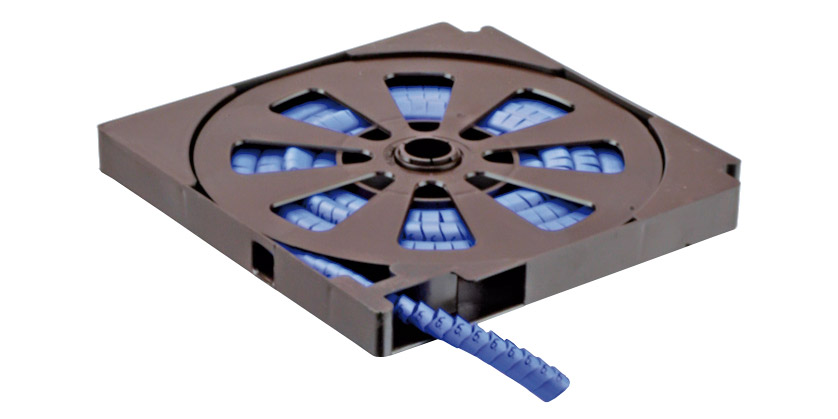

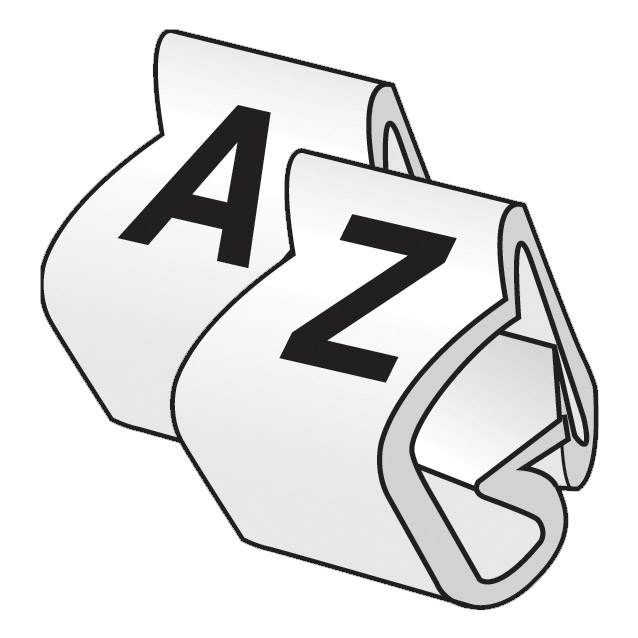

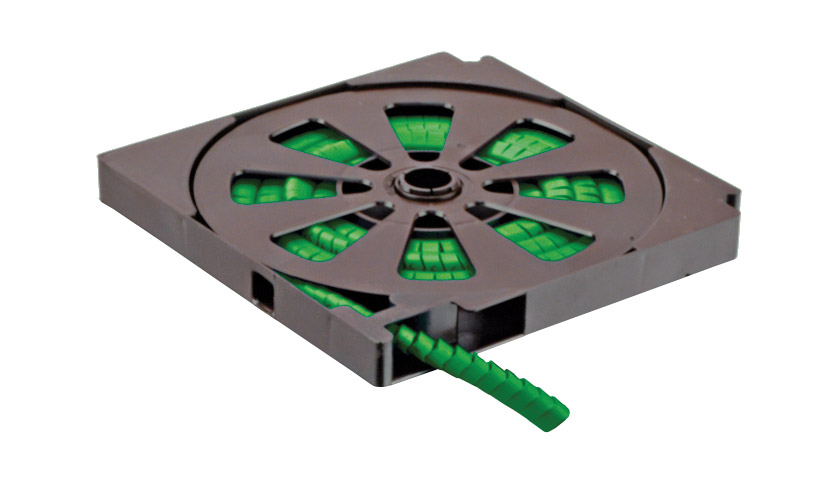

These markers embody a chevron shaped cut which assists in the alignment of the marker. They are made in a very flexible PVC, and are stocked in four sizes, covering cable diameters 1.5mm to 16.0mm. All sizes are supplied semi cut, on reels or in packs, and are stocked in various legends – numbers 0-9 and letters A-Z. Numerals are resistor colour coded, letters are black on white.

Type PTV+30:	Size range 1.5–3.0mm diameter. Packs of 100
Type PTV+45:	Size range 2.4–5.0mm diameter. Reels of 500 and packs of 100
Type PTV+90:	Size range 4.0–9.0mm diameter. Reels of 250 and packs of 100
Type PTV+150:	Size range 9.0–16.0mm diameter. Packs of 100

Fitting tools are also available. These are tapered guides which expand the markers to enable them to slide easily onto cables. Sometimes known as “thimble jigs”. See Cable Marker Fitting Tool for more details.

Ordering note:

These products are also available in sets - see Cable Markers - Pre Fit - Kits.

Some older stocks (discontinued, whilst stocks last) are of the earlier version of these markers, which has a different type code but is virtually identical in design.
