NEUTRIK JACK SOCKETS - Cable and panel types - Locking

6 items
NEUTRIK NJ3FC6 JACK SOCKET In-line
NEUTRIK NJ3FC6 JACK SOCKET In-lineNEUTRIK NJ3FC6-BAG JACK SOCKET In-lineNEUTRIK NJ3FP6C JACK SOCKET PanelNEUTRIK NJ3FP6C-B JACK SOCKET PanelNEUTRIK NJ3FP6C-BAG JACK SOCKET PanelNEUTRIK NJ3FP6P-BAG JACK SOCKET Panel, plastic

3-pole jack sockets in panel mounted or in-line versions. Panel mount type can be front or reverse mounted (the latch bar must be removed if reverse mounted) in a 24mm cutout. In-line types have cable gland as on ‘X’ series XLR connector, clamping on cables 2.8 to 8.0mm diameter.

Both types latch with standard mono and stereo jacks (A-gauge). Note that a 2-pole version is not made, the 3-pole type should be used with ring and sleeve commoned. Sleeve contact is isolated from connector shell.

In-line cable type has a metal body and is available in nickel (NJ3FC6) or black (NJ3FC6-BAG) with silver contacts. Panel mount type is available with a metal body in nickel finish with silver contacts (NJ3FP6C), or black finish with silver (NJ3FP6C-BAG) or gold (NJ3FP6C-B) contacts. The panel mount type is also available with a black plastic body and silver contacts (NJ3FP6P-BAG).

Description Price $
 Add to basket

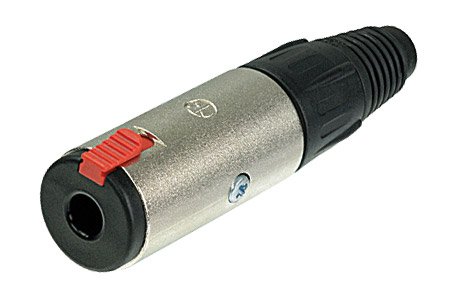

NEUTRIK NJ3FC6 JACK SOCKET In-line Stock code: 43-271
45 in stock Need more?
1+ $10.83
10+ $9.85
50+ $9.31
100+ $8.23

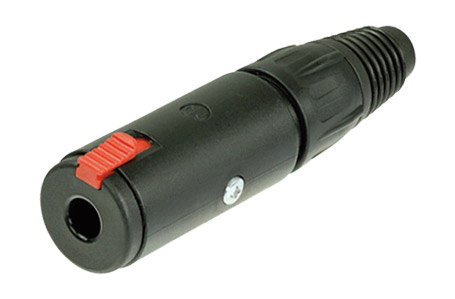

NEUTRIK NJ3FC6-BAG JACK SOCKET In-line Stock code: 43-272
38 in stock Need more?
1+ $11.20
10+ $10.20
50+ $9.63
100+ $8.51
NEUTRIK NJ3FP6C JACK SOCKET Panel Stock code: 43-273
53 in stock Need more?
1+ $9.06
10+ $8.24
50+ $7.79
100+ $6.89
NEUTRIK NJ3FP6C-B JACK SOCKET Panel Stock code: 43-266
6 in stock Need more?
1+ $11.12
10+ $10.12
50+ $9.57
100+ $8.46
NEUTRIK NJ3FP6C-BAG JACK SOCKET Panel Stock code: 43-274
76 in stock Need more?
1+ $9.73
10+ $8.86
50+ $8.36
100+ $7.40
NEUTRIK NJ3FP6P-BAG JACK SOCKET Panel, plastic Stock code: 43-275
Ordered on demand, available in 3‑4 weeks. Need it sooner? Call us
1+ $6.91
10+ $6.30
50+ $5.95
100+ $5.25
