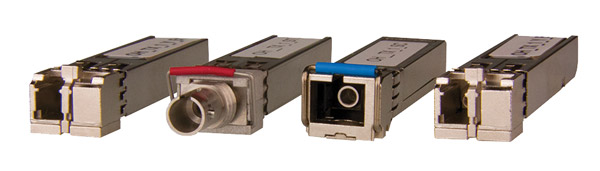

A range of fibre optic SFP modules which may be fitted to yellobriks equipped with an SFP cage. They provide single mode or multimode fibre extension for SDI, AES and analogue audio signals, depending on the yellobrik module.
These SFP modules must be ordered in addition to the yellowbrik module where they are shown as optional accessories. Dedicated yellowbrik fibre transmitters, receivers and transceivers are supplied complete with the appropriate SFP module.
A range of CWDM ('Coarse Wavelength Division Multiplexing') fibre transmitter and transceiver modules allowing multiple media signals to be transported up to 80km on a single fibre may also be fitted, please contact Technical Support for further information.
Fibre transmitter options (TX) for yellobrik utility modules
Optical transmitter SFP module, singlemode - 10km. Wavelength 1310nm, LC connector.
Optical transmitter SFP module, singlemode - 10km. Wavelength 1310nm, SC connector.
Optical transmitter SFP module, singlemode - 10km. Wavelength 1310nm, ST connector.
Fibre receiver options (RX) for yellobrik utility modules
Optical receiver SFP module, singlemode. Wavelengths 1260 - 1620nm, LC connector.
Optical receiver SFP module, singlemode. Wavelengths 1260 - 1620nm, SC connector. (Suitable for yellobrik only)
Optical receiver SFP module, singlemode. Wavelengths 1260 - 1620nm, ST connector. (Suitable for yellobrik only)
Fibre transceiver options (TR) for yellobrik utility modules
Optical transceiver SFP module, singlemode - 10km. Dual fibre (send plus receive), TX wavelength 1310nm, LC connectors.
Optical transceiver SFP module, multimode - 300m. Dual fibre (send plus receive), TX wavelength 850nm, LC connectors.
For use ONLY with PDM 1383. Optical transceiver SFP module, singlemode - 10km. Single fibre (bi-directional), TX wavelength 1310nm, LC connector. Must be used in conjunction with OH-BD-1-1550-Y at the other end.
For use ONLY with PDM 1383. Optical transceiver SFP module, singlemode - 10Km. Single fibre (bi-directional), TX wavelength 1550nm, LC connector. Must be used in conjunction with OH-BD-1-1310-Y at the other end.
