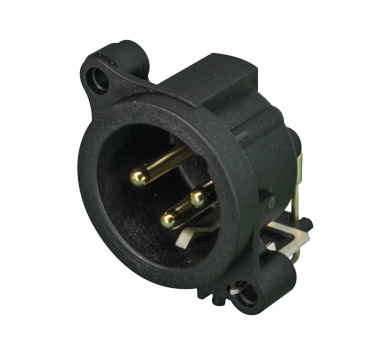

NEUTRIK XLR PANEL CONNECTORS - AA series

These are a lower cost version of the Neutrik A series plastic-bodied XLR panel connectors from Neutrik. They have the smallest size and highest packing-density (23mm between centres). The AA series offers low-cost, basic, plastic-shell connectors. Female and male connectors have the same panel cutout and mountings and all connectors have 'tulip' profile, hard gold-plated contacts, for the highest durability.

Panel fastening of these connectors is by self-tapping screws, type PT, with thread 2.9 x 1.06 (DIN7990), stock codes 40-927 (pan head) and 40-932 (countersunk).

Two orientations of the PCB pins are available in this series.

H = Horizontal PCB, i.e. angled pins
V = Vertical PCB, i.e. straight pins

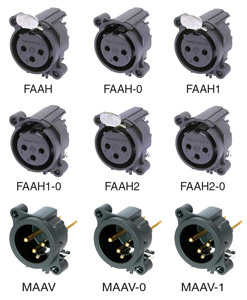

Further options exist for the female connectors, denoted by suffix numbers and letters:

[no suffix]No panel or shell ground contact
1Pin 1 directly connected to panel and shell ground
2Pin 1 isolated from panel and shell ground, separate ground contact to shell and panel
-0No latch, fitted instead with retention spring

Further options exist for the male connector, denoted by suffix numbers and letters:

[no suffix]Pin 1 isolated from panel and shell ground, separate ground contact to shell and panel
-0Pin 1 isolated from panel and shell ground, separate ground contact to shell
-1Pin 1 directly connected to panel and shell ground
  Description Price (£) Add to basket
NEUTRIK NC3FAAH XLR Female PC mounting horizontal   Stock code:
Please login for stock availability and lead times.
1+ £0.70
10+ £0.64
50+ £0.60
100+ £0.53
NEUTRIK NC3FAAH-0 XLR Female PC mounting horizontal   Stock code:
Please login for stock availability and lead times.
1+ £0.64
10+ £0.58
50+ £0.55
100+ £0.49
NEUTRIK NC3FAAH1 XLR Female PC mounting horizontal   Stock code:
Please login for stock availability and lead times.
1+ £0.78
10+ £0.71
50+ £0.67
100+ £0.59
NEUTRIK NC3FAAH1-0 XLR Female PC mounting horizontal   Stock code:
Please login for stock availability and lead times.
1+ £0.72
10+ £0.66
50+ £0.62
100+ £0.55
NEUTRIK NC3FAAH2 XLR Female PC mounting horizontal   Stock code:
Please login for stock availability and lead times.
1+ £0.78
10+ £0.71
50+ £0.67
100+ £0.59
NEUTRIK NC3FAAH2-0 XLR Female PC mounting horizontal   Stock code:
Please login for stock availability and lead times.
1+ £0.72
10+ £0.66
50+ £0.62
100+ £0.55
NEUTRIK NC3FAAV XLR Female PC mounting vertical   Stock code:
Please login for stock availability and lead times.
1+ £0.70
10+ £0.64
50+ £0.60
100+ £0.53
NEUTRIK NC3FAAV-0 XLR Female PC mounting vertical   Stock code:
Please login for stock availability and lead times.
1+ £0.64
10+ £0.58
50+ £0.55
100+ £0.49
NEUTRIK NC3FAAV1 XLR Female PC mounting vertical   Stock code:
Please login for stock availability and lead times.
1+ £0.78
10+ £0.71
50+ £0.67
100+ £0.59
NEUTRIK NC3FAAV1-0 XLR Female PC mounting vertical   Stock code:
Please login for stock availability and lead times.
1+ £0.72
10+ £0.66
50+ £0.62
100+ £0.55
NEUTRIK NC3FAAV2 XLR Female PC mounting vertical   Stock code:
Please login for stock availability and lead times.
1+ £0.78
10+ £0.71
50+ £0.67
100+ £0.59
NEUTRIK NC3FAAV2-0 XLR Female PC mounting vertical   Stock code:
Please login for stock availability and lead times.
£0.72
Clearance £0.50
NEUTRIK NC3MAAH XLR Male PC mounting horizontal   Stock code:
Please login for stock availability and lead times.
1+ £0.74
10+ £0.67
50+ £0.64
100+ £0.56
NEUTRIK NC3MAAH-0 XLR Male PC mounting horizontal   Stock code:
Please login for stock availability and lead times.
1+ £0.70
10+ £0.64
50+ £0.60
100+ £0.53
NEUTRIK NC3MAAH-1 XLR Male PC mounting horizontal   Stock code:
Please login for stock availability and lead times.
1+ £0.74
10+ £0.67
50+ £0.64
100+ £0.56
NEUTRIK NC3MAAV XLR Male PC mounting vertical   Stock code:
Please login for stock availability and lead times.
1+ £0.72
10+ £0.66
50+ £0.62
100+ £0.55
NEUTRIK NC3MAAV-0 XLR Male PC mounting vertical   Stock code:
Please login for stock availability and lead times.
1+ £0.72
10+ £0.66
50+ £0.62
100+ £0.55
NEUTRIK NC3MAAV-1 XLR Male PC mounting vertical   Stock code:
Please login for stock availability and lead times.
1+ £0.62
10+ £0.56
50+ £0.53
100+ £0.47
NEUTRIK XLR FIXING SCREWS For A, AA and BA series, pan, black (pack of 100) Black Stock code:
Please login for stock availability and lead times.
1+ £4.00
5+ £3.76
per pack
NEUTRIK XLR FIXING SCREWS For A, AA and BA series, csk, black (pack of 100) Black Stock code:
Please login for stock availability and lead times.
1+ £2.44
5+ £2.29
per pack
