These remote I/O interfaces utilise DANTE to operate in conjunction with compatible Yamaha mixing consoles. Once implemented the operator gains remote inputs and/or outputs away from the front of house mixing console yet maintain full digital control of the signal processing.
RUio1608SB-D - 16x8 analogue I/O, 8x16 Dante I/O

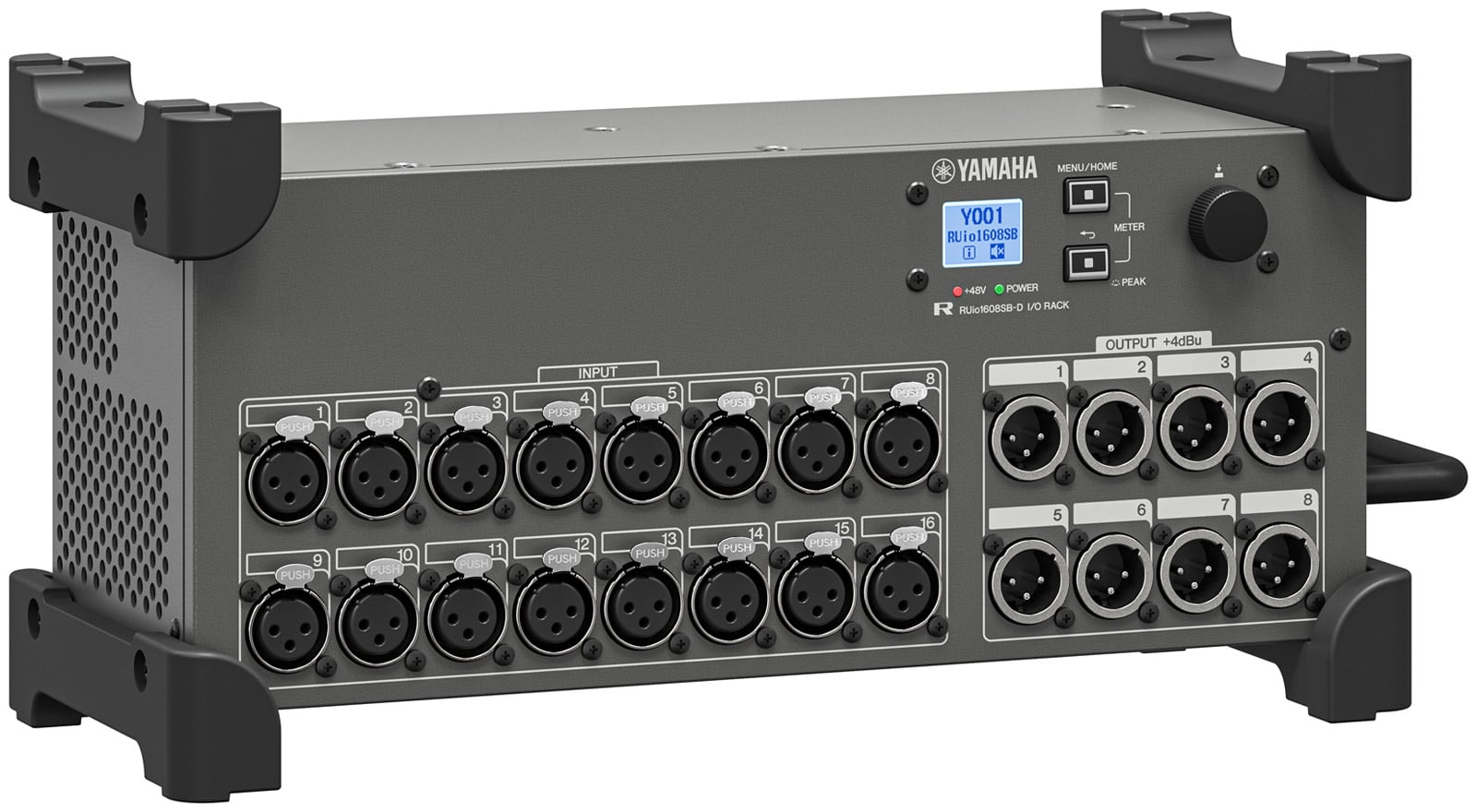

RUio1608SB-D is a compact I/O stagebox featuring 16x analogue inputs and 8x analogue outputs via 3-pin XLR connections. The interface has been designed for seamless integration with Yamaha digital mixers and processors, and has been constructed in a durable stagebox design for on-stage deployment. The interface has 'damage-resistant' rubber protectors to prevent the stage floor from being scratched, and as a secondary function allow the stacking of up to two units on top of one another to make even better use of the available space.
The optional RK-RUio1608SB rack-mount kit provides additional installation flexibility.
The front facing panel houses all analogue I/O including 16x 3-pin XLR input connections and 8x balanced 3-pin XLR output connections. A small display with associated rotary encoder and press-keys allows for menu navigation. The display allows visible access to gain settings and phantom power status. The side face of the interface houses both primary and secondary Dante connections, network connector via RJ-45 for connection to a computer, and with IEC connection for AC power input.
Power consumption: 40W. Dimensions (WxHxD): 374 x 170 x 145mm. Weight: 3.5kg.
RUio0804-D - 8x4 analogue I/O, 4x8 Dante I/O
RUio0804-D is a compact 1U stagebox featuring 8x analogue inputs and 4x analogue outputs. Designed for seamless integration with Yamaha digital mixers and processors, the interface provides a portable and flexible solution for expanding system connectivity.
The front facing panel houses all analogue I/O including 8x 3-pin XLR input connections and 4x balanced 3-pin XLR output connections. A small display with associated rotary encoder and press-keys allows for menu navigation. The display allows visible access to gain settings and phantom power status. The rear facing panel houses both primary and secondary Dante connections and network connector via RJ-45 for connection to a computer, along with IEC connection for AC power input.
Dimensions (WxHxD): 480 x 44 x 369mm, 1U. Weight: 3.7kg.
RUio16FLX-D - 16x16 analogue I/O, 16x16 Dante I/O, Euroblock connectors

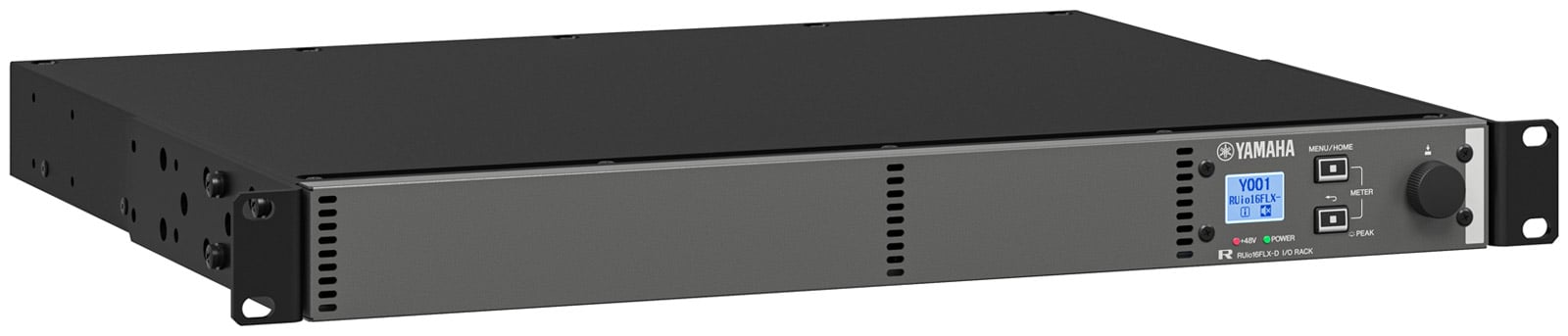

RUio16FLX-D is a Dante-compatible I/O rack processor designed for use with DM series mixing consoles. The interface allows the user to freely select and combine sixteen I/O channels from analogue in, analogue out, and AES/EBU out. Sources can be selected in two-channel groups, so each unit can handle three sources simultaneously. Fitting into a 1U chassis, RUio16FLX-D has been designed for many applications, particularly when additional input or output channels may be needed in the future. To save space used for I/O connections, the interface employs Euroblock connectors on the rear facing panel. A built-in mini-LCD screen on the front facing panel allows the user to conveniently check and set Dante and input/output parameters directly, therefore removing the need to connect to a mixing console or PC. In the event of an error, the unit's keys and LEDs light up to alert the user to take action.
With compatibility with Yamaha's R Remote control app, RUio16FLX-D can be used as a lightweight, compact Dante interface with R Remote controlling HA gain and other parameters, for recording and other applications where a mixing desk is not needed.
Dimensions (WxHxD): 480 x 44 x 369mm, 1U. Weight: 4.0kg.
RUio16-D - 2x2 analogue I/O, 16x16 Dante I/O, 18x16 USB I/O

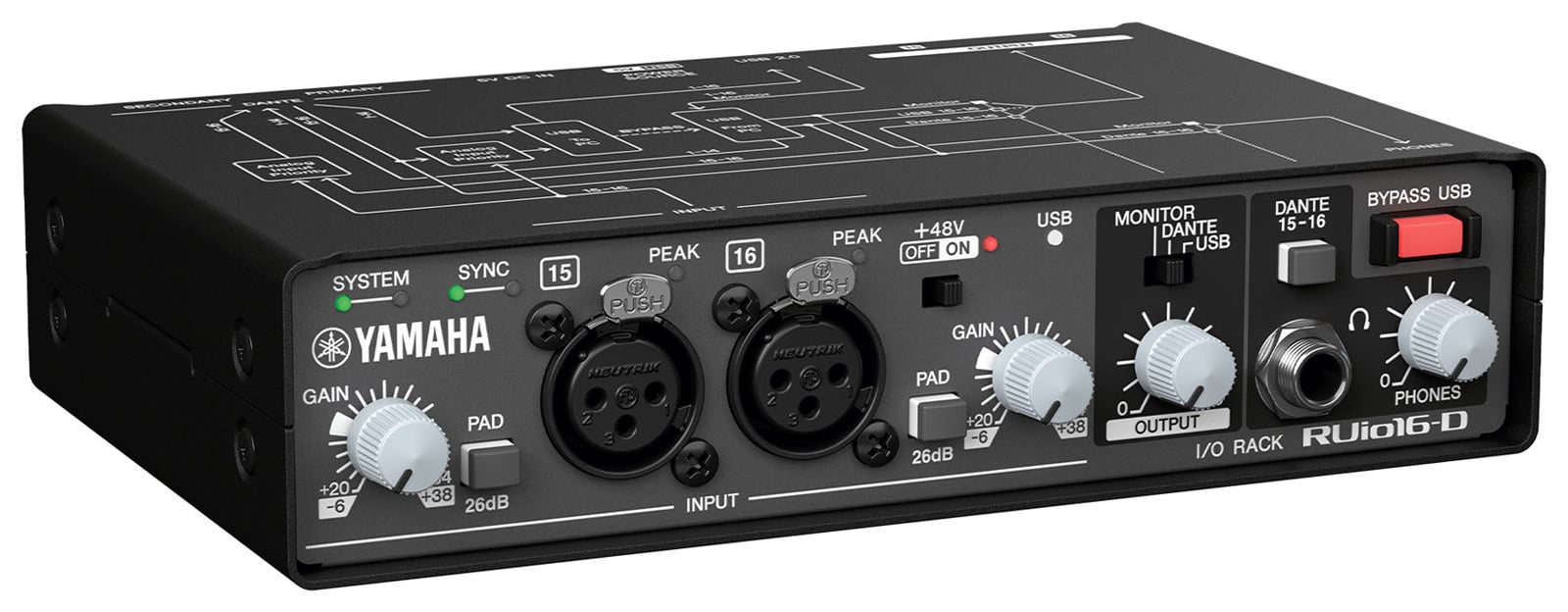

Yamaha RUio16-D offers Dante, USB and analogue input/output jacks and ports, and is useful in a wide range of situations. The audio interface has a compact, rugged form designed to withstand the needs of touring, serving as a bridge between Dante, analogue, and USB signals. Combining this product with the bundled VST Rack Pro plug-in host software creates a plug-in environment that gives users a great deal of freedom and makes it easy to integrate the VST plug-ins preferred in the system.
RUio16-D features a variety of input/output connections including 2x 3-pin XLR microphone inputs and 6.35mm headphone output jack on the front facing panel; and 2x 3-pin XLR output connections on the rear panel. Both primary and secondary Dante connections are positioned on the rear panel. This unit also offers stability in case a problem occurs with the connected computer. If this happens the unit bypasses the audio processing on the plug-in side to prevent any trouble that might stop the sound on the entire system.
The included VST Rack Pro hosts an array of more than 30 popular plug-ins created by Yamaha and Steinberg, including the Buss Comp 369, REVerence for sampled reverbs, and the SuperVision, which is useful for managing loudness, together with other plug-ins that can be used in wide variety of other applications.
Dimensions (WxHxD): 180 x 42 x 121mm. Weight: 1.0kg.
Tio1608-D2 - 16x mic/line inputs, 8x line outputs
Tio1608-D2 is a Dante-compatible I/O rack equipped with 16 mic/line inputs and 8 line outputs. It can control gain from TF Series and DM3 consoles remotely, allowing the construction of a stage¬box system. Tio1608-D2 also supports 96k, making it useful as an I/O rack in large installations with products such as the RIVAGE PM or DME7. Sampling rates of 44.1kHz, 48kHz, 88.2kHz and 96kHz are supported in the Tio1608-D2.
The Dante audio network standard is utilized in the DM3 and TF series, as well as in the CL and QL digital mixers. Up to three Tio1608-D2s can be used in combination with a TF series console with optional NY64-D expansion card, while only a single Tio1608-D2 is compatible with the DM3. These consoles can be freely combined with the Tio1608-D2 or an R series I/O rack to create a system that matches the required scale and budget. Patching can be enabled via ‘Dante Controller’ while Remote HA can be controlled by ‘R Remote’ software.
Power consumption: 50W. Dimensions (WxHxD): 2U, 480 x 88 x 364mm. Weight: 5.7kg.
Rio1608-D3 - 16x8 analogue I/O, 10x16 Dante I/O
This Dante-compatible unit features 16x analogue inputs and 8x analogue outputs, enabling flexible system configuration with Yamaha digital mixers and processors. Rio1608-D3 is housed in a 3U 'sturdy' chassis and features a redundant power supply that ensures reliability, while the newly added headphone socket and output delay provide additional versatility.
Rio1608-D3 has a greater dynamic range in comparison to Rio1608-D2, with 120dB typical DA converter and 115dB typical input to output. It also has a lower residual output noise level of -93dBu when the main stereo channel is off. The Dante connectivity includes 10 receiving channels and 16 transmitting channels.
Power consumption: 60W. Dimensions (WxHxD): 3U, 480 x 132 x 370mm. Weight: 9.4kg.
Rio3224-D3 - 32x16 analogue I/O, 26x32 Dante I/O
This Dante-compatible unit features 32x analogue inputs, 16x analogue outputs, and 8x digital AES/EBU outputs, enabling flexible system configuration with Yamaha digital mixers and processors. Rio3224-D3 is housed in a 5U rack-mounting chassis and features a redundant power supply that ensures serious reliability. A headphone socket and output delay provide additional versatility.
Rio3224-D3 has a greater dynamic range in comparison to Rio3224-D2, with 120dB typical DA converter and 115dB typical input to output. It also has a lower residual output noise level of -93dBu when the main stereo channel is off. The Dante connectivity includes 26 receiving channels and 32 transmitting channels.
Power consumption: 100W. Dimensions (WxHxD): 5U, 480 x 220 x 370mm. Weight: 13.2kg.
RSio64-D - Dante/Mini-YGDAI format to 64x64 I/O
RSio64-D is an audio interface that can convert between Dante and Mini-YGDAI formats for up to 64 inputs and 64 outputs. It provides versatile routing capability as well. Four Mini-YGDAI card slots allow cards for a wide variety of input/output formats as well as processing functions to be connected to a Dante network for live sound, broadcast, recording, post production, and other applications. RSio64-D also supports remote setup from CL and QL series consoles. Presets for seven basic routing patterns are built in, including routing between Mini-YGDAI cards. A rotary switch on the front panel allows direct selection of one-to-one Dante/Mini-YGDAI routing, branched Mini-YGDAI/Mini-YGDAI routing, and other options designed to suit a variety of applications. One programmable user setup is also provided.
Card compatibility
| Processing cards: |
MY8-LAKE, DUGAN-MY16, WSG-Y16 V2 |
| Analog cards: |
MY8-ADDA96, MY8-AD96, MY8-AD24, MY4-AD, MY8-DA96, MY4-DA |
| Digital cards: |
MY16-AT, MY8-AT, MY16-AE, MY8-AE96S, MY8-AE96, MY8-AE, MY8-AEB, MY16-MD64, MY8-SDI-ED, MY8-SDI-D, MY16-TD, MY8-TD |
| Network cards: |
AVIOM16/O-Y1, AVIOM6416Y2, MY16-CII, DANTE-MY16-AUD2, MY16-ES64, AVY16-ES100, MY16-EX, YG2, YS2, RN.341.MY, RN.141.MY, Pivitec e16i/o-MY |
Power consumption: 60W. Dimensions (WxHxD): 480 x 88 x 365mm. Weight: 6.1kg
