LD Systems’ range of portable, battery powered are supplied with either handheld or headworn wireless transmitter and integrated wireless receiver. Within this range of loudspeakers, there are options for MP3, WAV and WMA playback via wired connection, Bluetooth, USB media, or inserted SD card.
ANNY 10 80W, 10-inch, 6-channel
LD Systems ANNY 10 is a 6-channel, battery-powered sound solution designed for use at gatherings, at sports events, at parties, at school or at dance events. Equipped with a 10-inch low frequency driver and 1-inch tweeter, ANNY 10 has a Class-D amplifier with an RMS output of 80W and peak output of 160W with a maximum SPL of 118dB. A frequency response of 45Hz to 20kHz is accompanied by a 3-band EQ for fine tuning, and internal DSP effects such as reverb & delay.
The battery-powered loudspeaker has various input connection options including two microphone/line combination inputs, a single stereo channel via 3.5mm jack socket, and RCA (phono) inputs, as well as Bluetooth 5.0 with AAC codec. A 6.35mm jack socket allows the connection of a compatible footswitch to allow the remote switching of reverb and delay effects. A priority function allows the user to automatically attenuate the levels so that a microphone channel can be audible. The loudspeaker has wheels along with a telescopic handle for portability. A True Wireless Stereo (TWS) feature allows the user to link two ANNY 10 loudspeakers to enjoy your music in stereo. THis can be linked and activated from the Bluetooth menu on both units.
The internal batteries are charged when the unit is connected to main power via the included IEC power cable. A 4-segment battery charge status display illustrates 100% battery life remaining when 4x LEDs are lit; 75% battery remaining when 3x LEDs are lit; 50% battery life remaining when 2x LEDs are lit, and 25% batter remaining with 1 LED lit. If only the first LED flashes the current battery remaining is below 10%. At this point the unit should be connected to mains power immediately for charging. Battery operating time is 5 hours with music played at full volume; 25 hours with ECO preset and mid-volume output; 3.5 hours when 80% remaining and no output. Charging time from 0-100% is 7 hours.
A smartphone or tablet tray is located on the top of the loudspeaker, between the transport handle and accessory compartment. The accessory compartment has space for handheld and bodypack transmitters as well as other
accessories such as antennas for the receivers.
Versions available

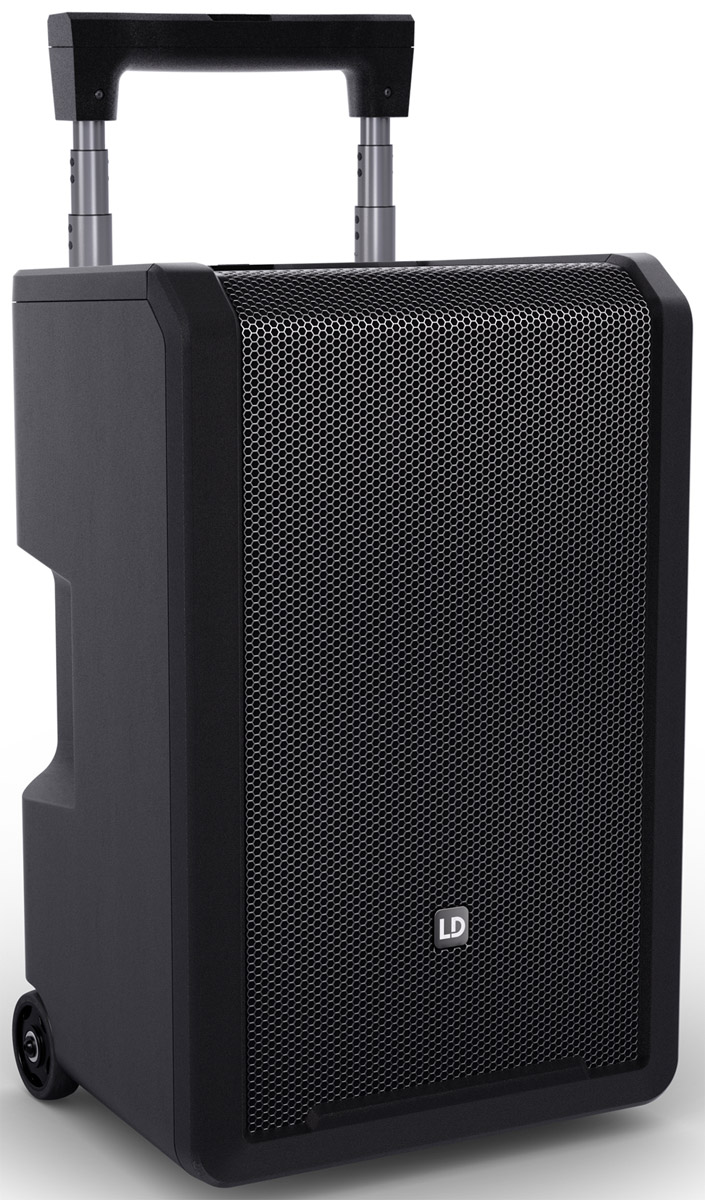

ANNY 10 without wireless TX/RX

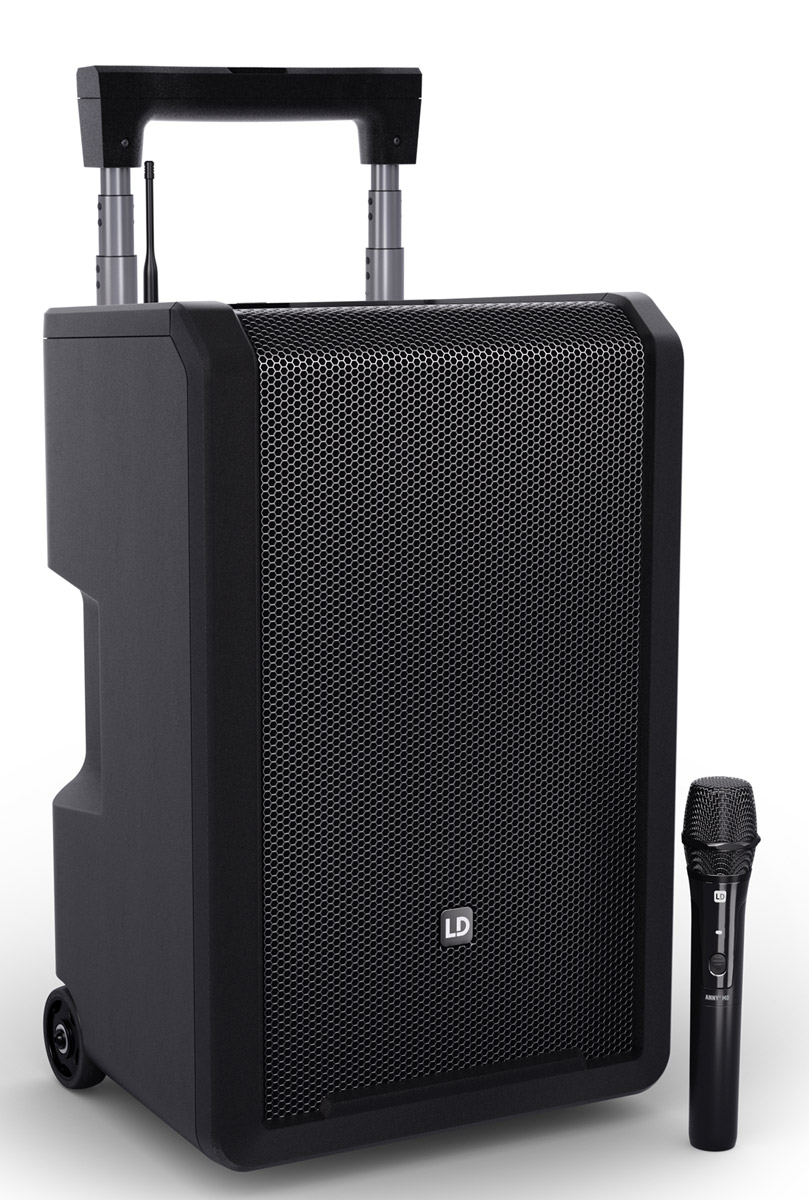

ANNY 10 HHD with single handheld microphone transmitter/receiver

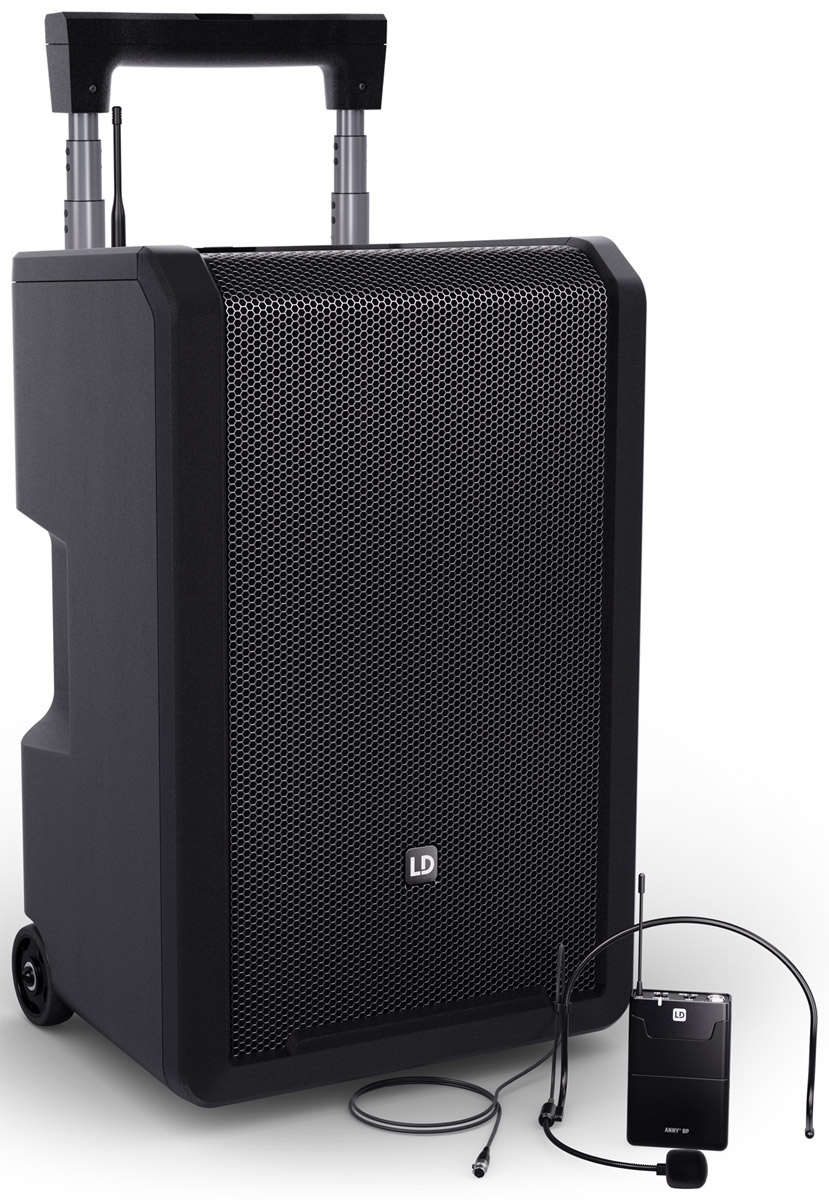

ANNY 10 BPH with single headset microphone, beltpack transmitter and receiver module

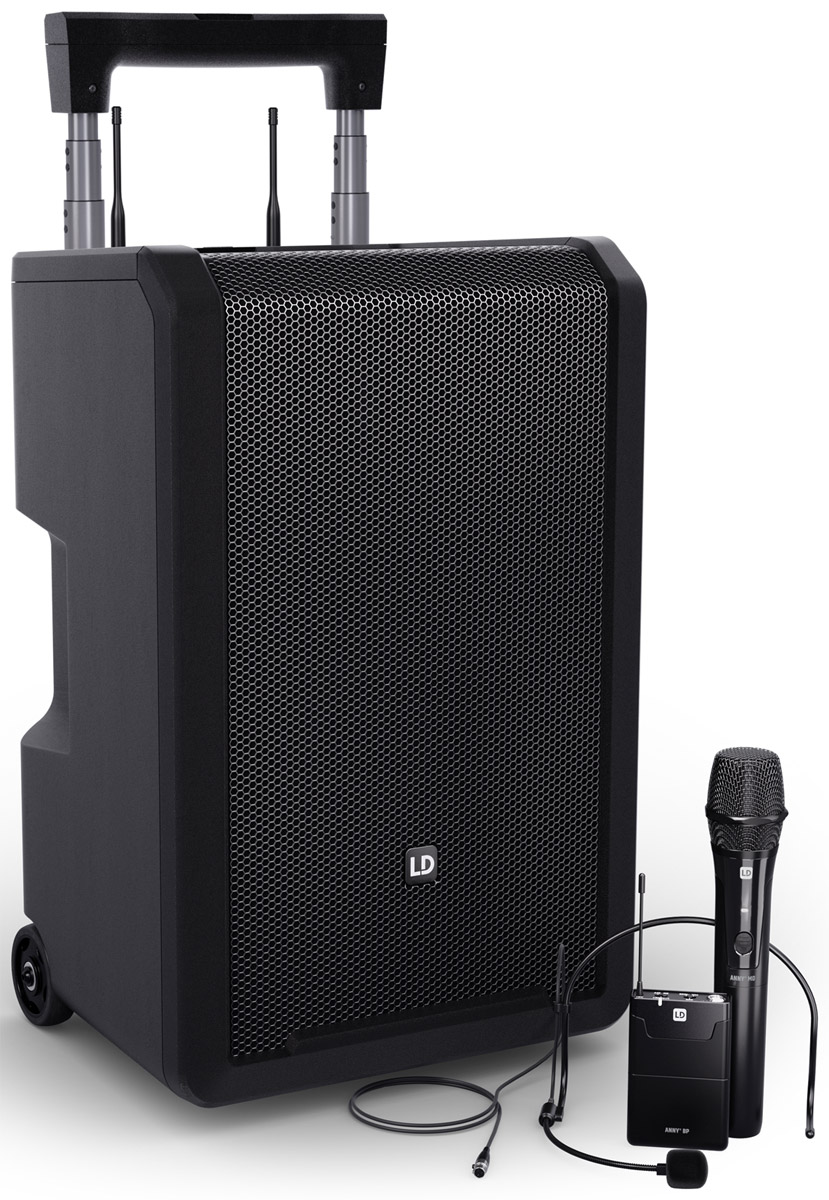

ANNY 10 HBH2 with single handheld transmitter, single headset, beltpack transmitter, and 2x receiver modules

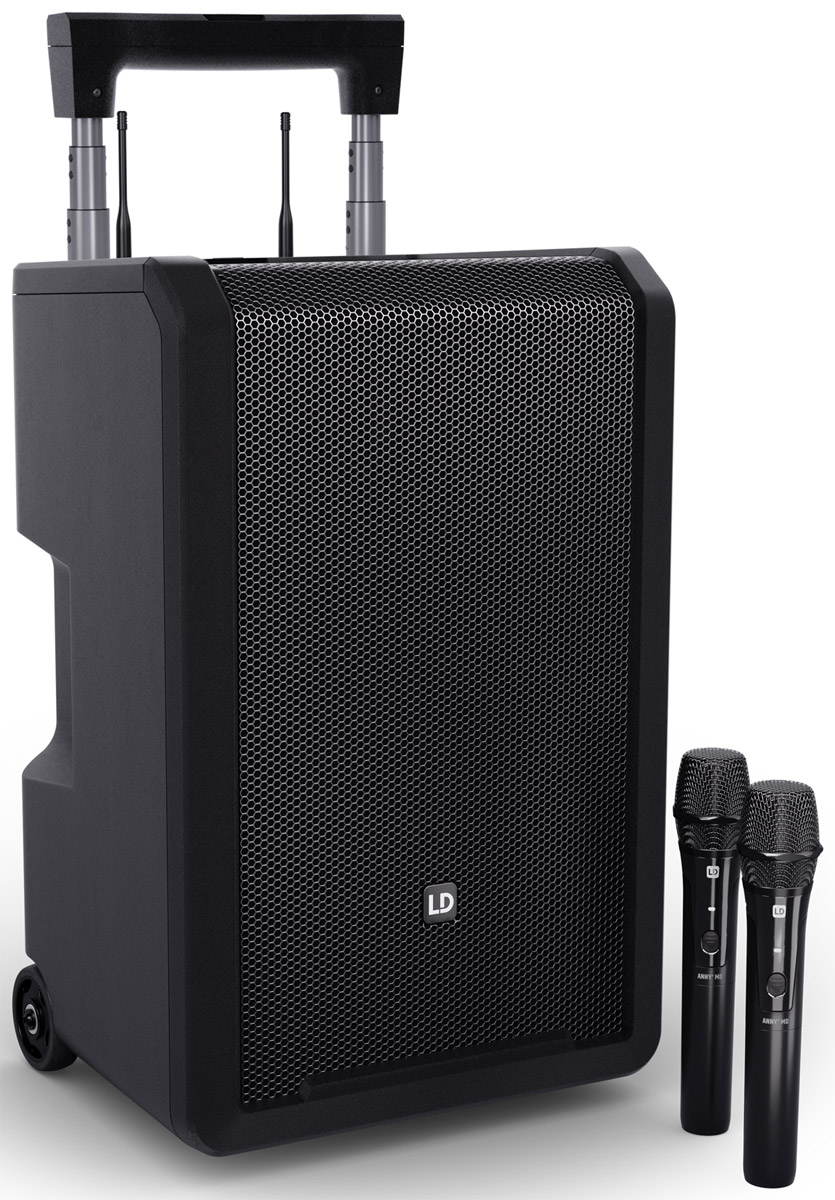

ANNY 10 HHD2 with 2x handheld transmitters and 2x receiver modules

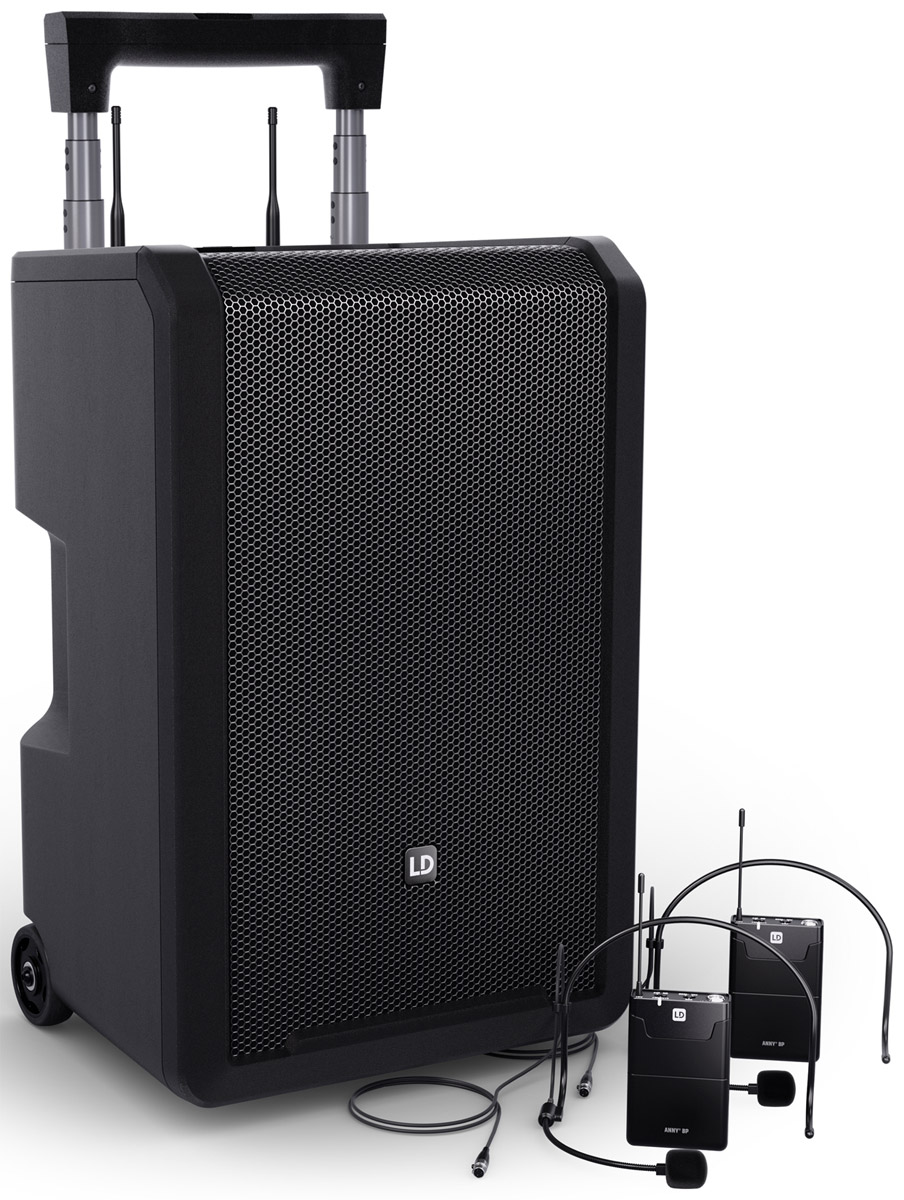

ANNY 10 BPH2 with 2x headset transmitter and 2x receiver modules
All models have two receiver module slots on the rear facing panel, however models with a single transmitter are shipped with a single module, models with two transmitters are shipped with two modules, and models without transmitters are shipped with cover plates only. The user is able to add receiver modules to a maximum of two.
Optional accessories: ANNY 10 PC water-repellent transport bag with additional storage space.
Frequency response: 45Hz - 20kHz. Crossover frequency: 1800Hz. Dispersion (HxV): 120 x 60-degrees. Dimensions (WxDxH): 361 x 300 x 566mm. Weight: 18.22kg, without wireless TX/RX; 15.35kg without batteries.
ANNY 12 185W, 12-inch, 6-channel
Like ANNY 10, ANNY 12 has been designed as an all-in-one solution for those wanting to amplifier a microphone and music whist retaining portability. ANNY 12 is equipped with a 12-inch low frequency driver and 1-inch tweeter, and the internal Class-D amplifier can provide an RMS output of 185W and peak output of 215W with a maximum SPL of 122dB. A frequency response of 40Hz to 20kHz is accompanied by a 3-band EQ for fine tuning, and internal DSP effects such as reverb & delay. All I/O connectivity and option of wireless receiver module is as ANNY 10.
Unlike ANNY 10, ANNY 12 has 4x hot-swappable Lithium-Ion batteries that allow the user to use their ANNY 12 continuously and without interruption. Providing one of the four batteries is plugged in, ANNY will continue to play at full power, so the empty batteries can simply be swapped with fully charged ones during operation or charged alternately. The battery LEDs status section remains the same as ANNY 10.
Battery operating time
Versions available

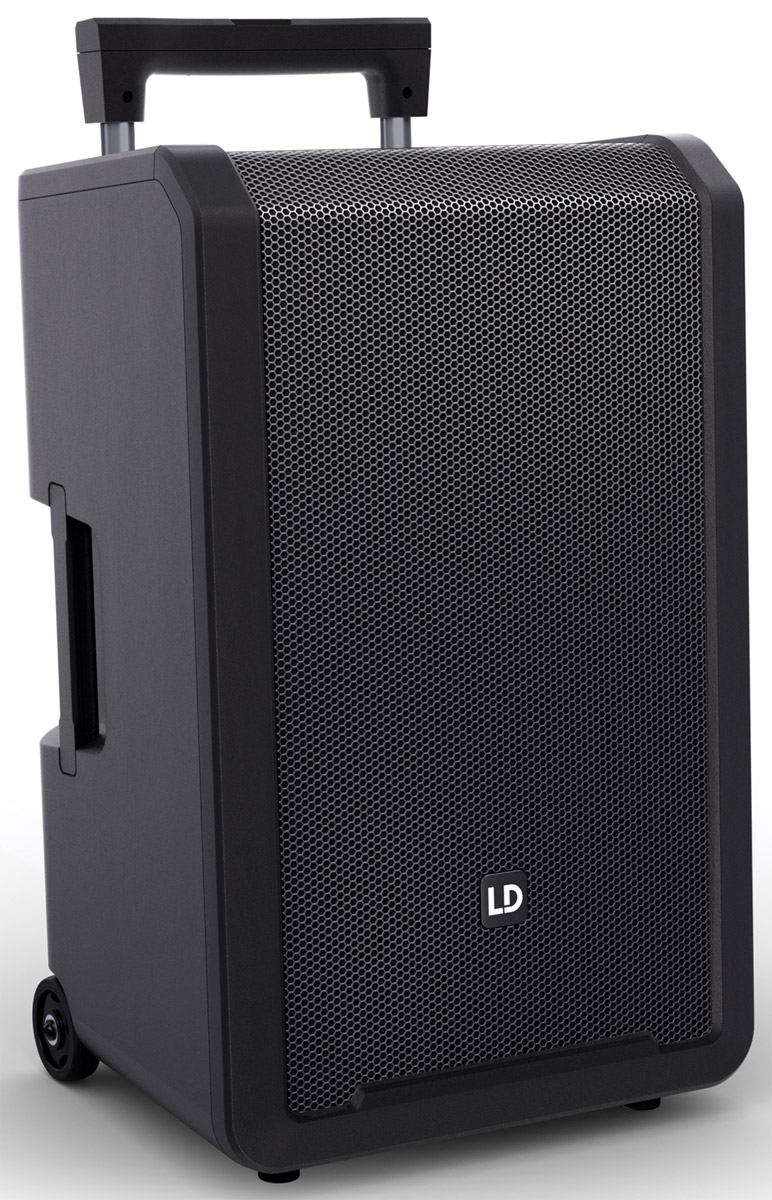

ANNY 12 without wireless TX/RX

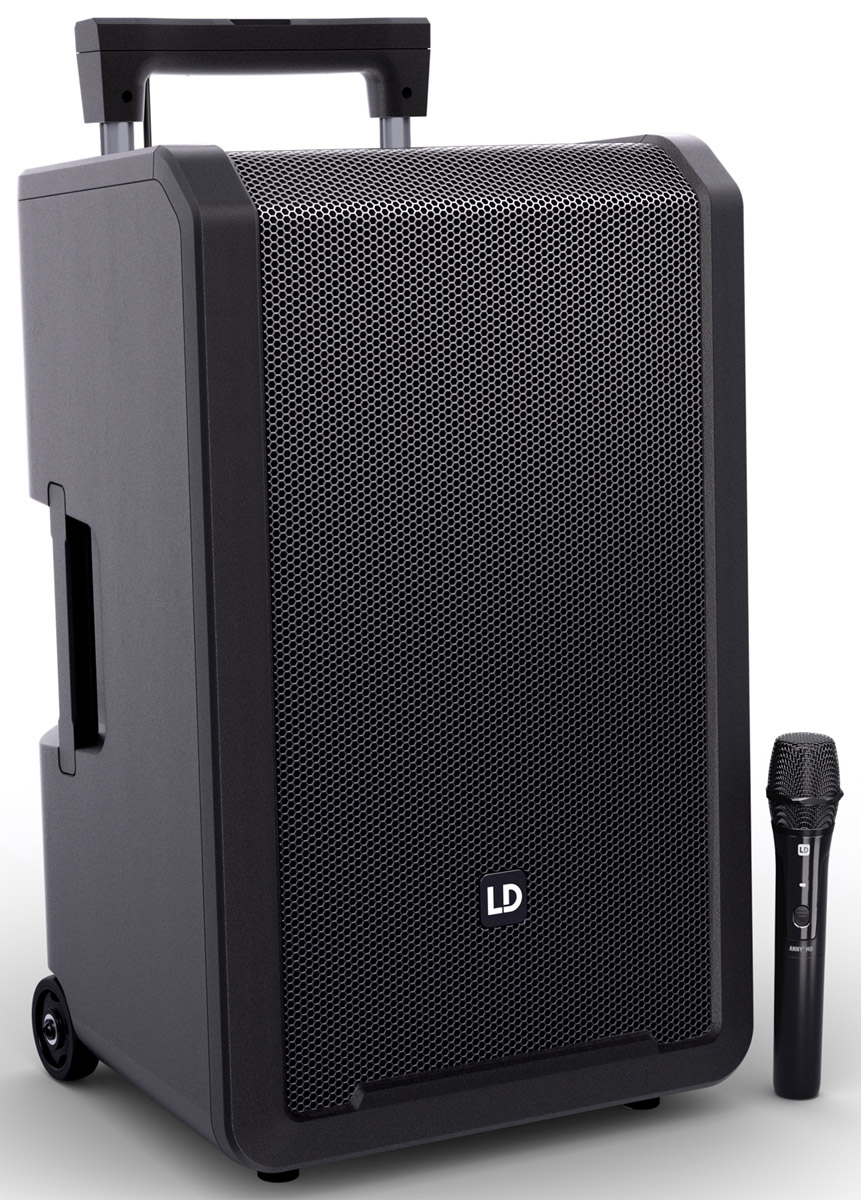

ANNY 12 HHD with single handheld microphone transmitter/receiver
ANNY 12 BPH with single headset microphone, beltpack transmitter and receiver module

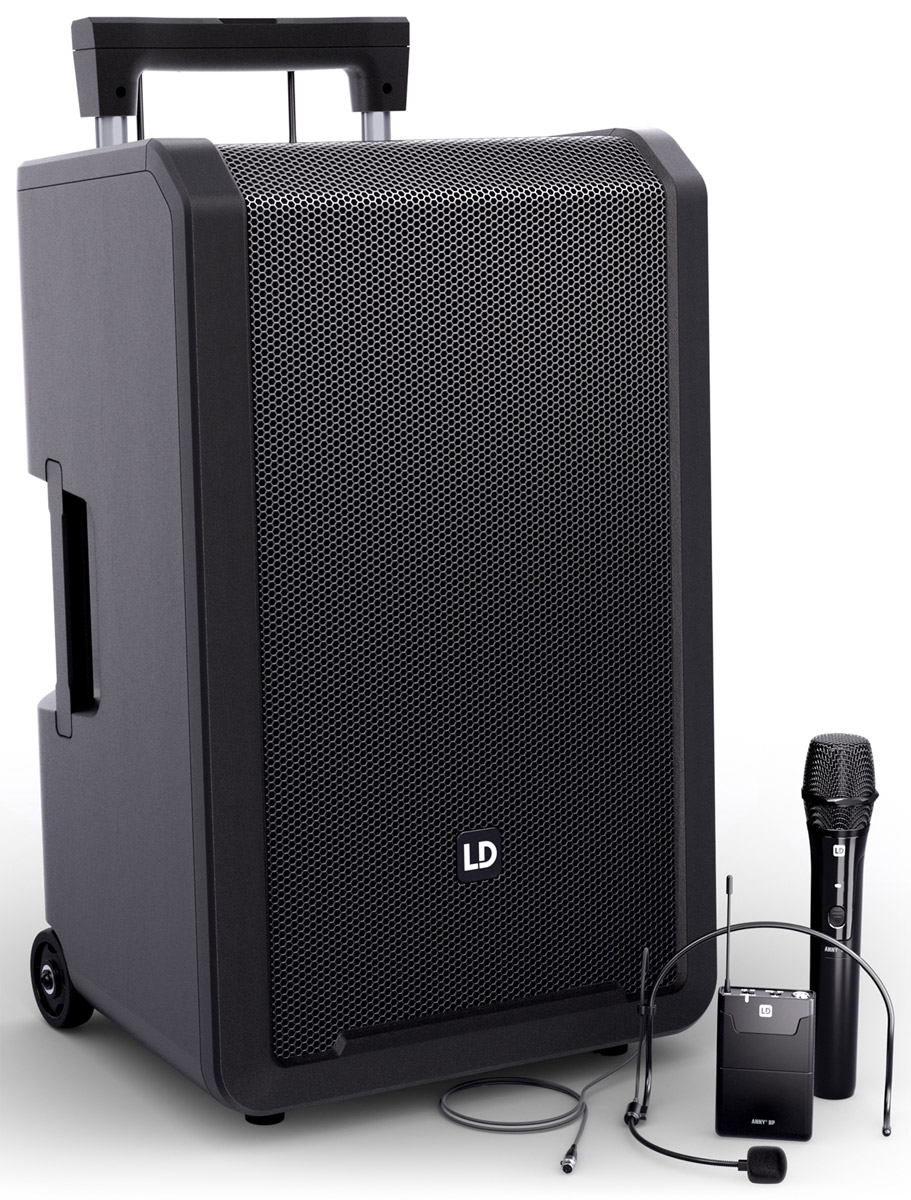

ANNY 12 HBH2 with single handheld transmitter, single headset, beltpack transmitter, and 2x receiver modules
ANNY 12 HHD2 with 2x handheld transmitters and 2x receiver modules

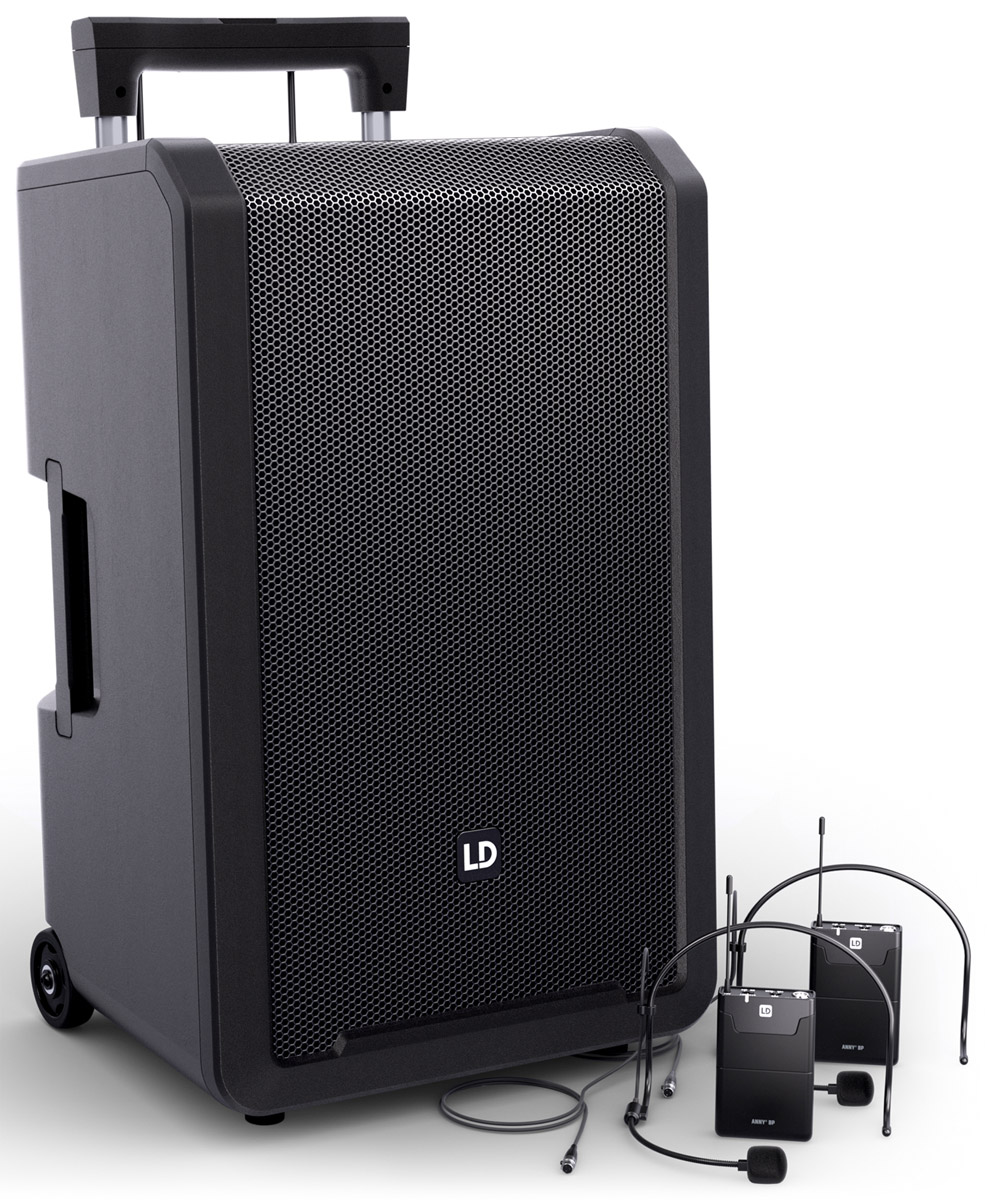

ANNY 12 BPH2 with 2x headset transmitter and 2x receiver modules
All models have two receiver module slots on the rear facing panel, however models with a single transmitter are shipped with a single module, models with two transmitters are shipped with two modules, and models without transmitters are shipped with cover plates only. The user is able to add receiver modules to a maximum of two.
Optional accessories: ANNY 12 PC water-repellent transport bag with additional storage space, ANNY 12 BATTERY spare battery.
Ordering note: ANNY 12 is supplied with mains power cable only and not battery.
Frequency response: 40Hz - 20kHz. Crossover frequency: 1600Hz. Dispersion (HxV): 90 x 50-degrees. Dimensions (WxDxH): 405 x 341 x 655mm. Weight: 18.925kg, without wireless TX/RX.
ROADBUDDY 120W, Bluetooth/CD/SD/USB media playback
LD Systems Roadbuddy is a full-range, portable, AC/battery powered, PA system that includes a 16-channel handheld wireless microphone with automatic tuning. Roadbuddy 10 PA also has a built-in media player that can read, support and play MP3, WAV and WMA files (FAT16/32), directly from the SD card or USB slots on the rear panel, or stream directly from a connected Bluetooth device within a range of 10m. Roadbuddy 10 models have moulded speaker stand mounts, compatible with 35mm speaker stands.
There are three input channels available in addition to the inbuilt UHF receiver; Channel 1 can be used to connect a stereo device such as CD player, smart phone or media playing device, with input options of single stereo 3.5mm jack socket or dual RCA phono socket inputs. A switch situated above the channel inputs allow the user to switch between the auxiliary source or the internal MP3 media player. Channels 2 and 3 can be used as microphone or line by using the 6.3mm Jack/XLR combination inputs and the line/mic switch, while an ‘Echo’ control allows the global application of effect to the wireless microphone channel and input channels 2 and 3. A 6.3mm jack line out socket is provided to send the global signal, controlled by the master volume control, to a separate amplified speaker for additional dispersion.
Powered by an internal Class D amplifier 2-way Roadbuddy 10 can produce 120W RMS (480W peak) for up to 8 hours. The 10-inch woofer and 1-inch high-frequency compression-driver produce a frequency response of 55Hz to 18kHz, and two-band equalisation gives the user the option of fine-tuning the output signal. A 4-stage LED display shows the remaining internal battery life.
Wheels are integrated into the bottom-rear edge for easy transportation.
Variants
| Roadbuddy 10 includes a single wireless handheld microphone transmitter. |
| Roadbuddy 10 HS includes a single headworn microphone with beltpack transmitter. |
| Roadbuddy 10 HHD 2 includes two wireless handheld microphone transmitters. |
Optional accessories: Roadbuddy 10 PC is an optional protective carry cover for all Roadbuddy 10 variants.
Power output: 120W, RMS; 480W, peak. Frequency response: 55Hz – 18kHz. SPL: 96dB, 1w/1m; 115dB, maximum. Batteries: 12V, 5AH rechargeable. Operating voltage: 100-120V, 60Hz; 220-240 V AC, 50Hz, switching. Dimensions (WxHxD): 415 x 525 x 328mm. Weight: 16.5kg.
