BELDEN 4694R CABLE Black

Stock code
60-4694R
Brand
Belden
Model number
  • 4694R
Colour
  • BlackBlack

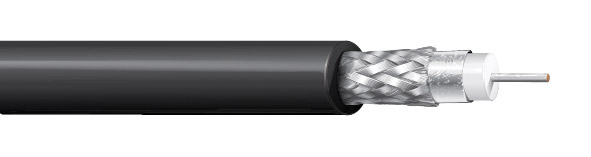

BELDEN 4694R CABLE Black
BELDEN 4694R CABLE Black

BELDEN 4694R - UHDTV DIGITAL VIDEO CABLE

75 ohm coaxial cable specifically for 4K 12G video signals with PVC outer jacket. Industry type RG6/U.

Note: See suitable connectors for this cable in the drop-down lists below the full cable specification.

Technical Specification:

Cable size group: Y (with Neutrik exception)
Inner conductor: (18AWG) 1.02mm silver plated copper
Dielectric: Foam polyethylene, 4.57mm O.D.
Screen 1: Aluminium/polypropylene/aluminium tape
Screen 2: Tinned copper braid, optical coverage 95%
Construction: Coaxial cable
Jacket: PVC, black and orange
Overall diameter: 6.96mm
Minimum bend radius: 69.85mm
Impedance: 75 ohms
Capacitance: 52.2pF/m nominal
Attenuation: MHz 10 100 180 750 1500 3000 6000 12000
dB/100m 2.3 6.2 8.0 16.7 23.9 34.8 50.8 75.4
Weight: 6.10kg/100m
Reel length: 305m
Cut lengths: Available in any multiple of 1 metre
Suitable crimp connectors outlined below.

BNC Male - 12G

Brand Code Description
Canford Connect 48-6026 CANFORD CONNECT CCBNCY BNC 12G, crimp, 75 ohm, Group Y
COAX Connectors 48-5063 COAX CONNS 10-005-W126-FC BNC 12G UHD Male cable, crimp, 75 ohm, black, group Y
COAX Connectors 48-5073 COAX CONNS 10-005-W126-FC BNC 12G UHD Male cable, crimp, 75 ohm, black, group Y (pack of 100)
Neutrik 48-6375 NEUTRIK NBNC75BTU11X BNC 12G UHD Male cable, rear twist, Belden 1694A

BNC Male, right-angled - 12G

Brand Code Description
COAX Connectors 48-5082 COAX CONNS 10-104-W66-FC BNC 12G UHD Male cable, right-angle, crimp, 75 ohm, black, group Y
COAX Connectors 48-5092 COAX CONNS 10-104-W66-FC BNC 12G UHD Male cable, r/angle, crimp, 75 ohm, black, gp Y (pack of 100)

BNC Male - 3G

Brand Code Description
Canare 48-458 CANARE BCP-B53 BNC Male cable, group Y
Canare 48-459 CANARE BCP-B53 BNC Male cable, group Y (pack of 100)
COAX Connectors 48-5043 COAX CONNS 10-005-B36-FC BNC 3G HD Male cable, crimp, 75 ohm, group Y
COAX Connectors 48-5053 COAX CONNS 10-005-B36-FC BNC 3G HD Male cable, crimp, 75 ohm, group Y (pack of 100)
Neutrik 48-6303 NEUTRIK NBNC75BTU11 BNC 3G Male cable, rear twist, Belden 1694A
Neutrik 48-638 NEUTRIK NBNC75BTU11-D BNC 3G Male cable, rear twist, Belden 1694A (pack of 100, disassembled)
Telegartner 48-788 TELEGARTNER BNC 3G HD Male cable, crimp, 75 ohm, group Y
Telegartner 48-778 TELEGARTNER BNC 3G HD Male cable, crimp, 75 ohm, group Y (pack of 100)

BNC Male - HD-SDI - 1.5G

Brand Code Description
Telegartner 48-714 TELEGARTNER BNC Male cable, crimp, 75 ohm, group Y
Telegartner 48-774 TELEGARTNER BNC Male cable, crimp, 75 ohm, group Y (pack of 100)

Micro BNC Male - 12G

Brand Code Description
COAX Connectors 48-5026 COAX CONNS 67-005-B66-FC MICRO BNC 12G UHD Male cable, crimp, group Y
COAX Connectors 48-5036 COAX CONNS 67-005-B66-FC MICRO BNC 12G UHD Male cable, crimp, group Y (pack of 100)

DIN 1.0/2.3 Male - 3G

Brand Code Description
COAX Connectors 48-5006 COAX CONNS 52-005-B6-FC DIN 1.0/2.3 3G HD Male cable, crimp, group Y
COAX Connectors 48-5016 COAX CONNS 52-005-B6-FC DIN 1.0/2.3 3G HD Male cable, crimp, group Y (pack of 100)

MUSA - 3G

Brand Code Description
Canford 48-4436 CANFORD MUSA 3G HD Female, cable, group Y

MUSA Metrology grade

Brand Code Description
Canford 48-4486 CANFORD MUSA Metrology grade, silver, female, cable, group Y

F Connector

Brand Code Description
Canare 48-878 CANARE FP-C53A F CONNECTOR Male cable, group Y
Canare 48-879 CANARE FP-C53A F CONNECTOR Male cable, group Y (pack of 100)
Telegartner 48-8282 TELEGARTNER F CONNECTOR Male cable, crimp, 75 ohm, group Y
Telegartner 48-8292 TELEGARTNER F CONNECTOR Male cable, crimp, 75 ohm, group Y (pack of 100)

RCA Phono

Brand Code Description
Canare 43-069 CANARE RCAP-C53 RCA (PHONO) PLUG Group Y
Canare 43-070 CANARE RCAP-C53 RCA (PHONO) PLUG Group Y (bulk pack of 100)

Ordering note: Other colours available to special order, contact sales for further details.

  Description Price £
ex. VAT
Add to basket
Delivery
BELDEN 4694R CABLE Black Black Stock code: 60-4694R
1045 in stock Need more?
2 cable oddments available
1+ £7.85
100+ £6.28
500+ £6.12
1,000+ £5.89
per metre
BELDEN 4694R CABLE Orange Orange Stock code: 60-4694R-3
Ordered on demand, available in 1‑2 months. Need it sooner? Call us
1+ £7.85
100+ £6.28
500+ £6.12
1,000+ £5.89
per metre
