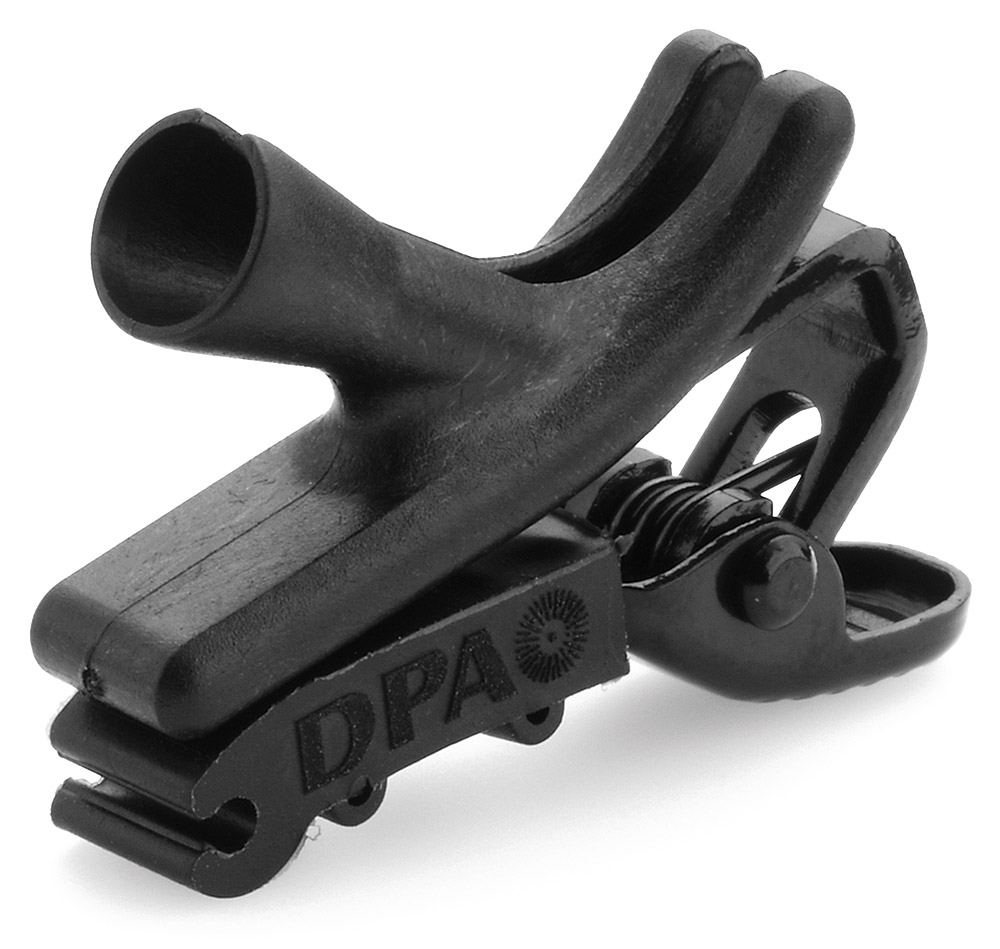

DPA SCM0017-B MICROPHONE MOUNT Single clip, for 4060 series lav, curved, black

Stock code
74-172
Brand
DPA (DPA Microphones)
Model number
  • SCM0017
  • SCM0017-B
Colour
  • BlackBlack
DPA SCM0017-B MICROPHONE MOUNT Single clip, for 4060 series lav, curved, black
DPA SCM0017-B MICROPHONE MOUNT Single clip, for 4060 series lav, curved, black

DPA MICROPHONES - Spares and Accessories

A series of DPA microphone accessories and spares compatible with DPA pencil, instrument, lavalier, miniature, subminiature, headworn, earset, and handheld microphones.

WINDSHIELDS


AIR1

DPA AIR1 have been designed for broadcaster and content creators, and offer consistent wind protection with 'swift and effortless' mounting. Available in six colours including black, grey, brown, beige, off-white, and white; and available in two sizes, large and small; AIR1 features a handle system with metal spring to create the opening for microphone insertion, and clasp for securing the microphone in place. A mic stop prevents the microphone from being inserted too far, and is combined with two arches to keep the outer fur away from the microphone capsule for consistency. The large and small versions can be identified with the colour of spring, with a red spring denoting small and silver spring denoting large.

Each version is supplied in a pack two of the same colour and size.

Compatibility
Small Large
Countryman B6 -
Countryman H6 -
DPA 4060 / 4061 / 4062 / 4063 -
DPA 4066 / 4266 / 4466 -
DPA 4071 -
DPA 4660 / 4661 -
DPA 6060 / 6061 -
DPA 6066 -
Sanken COS-11 -
Sennheiser HSP 2 -
Sennheiser HSP Essential Omni -
Sennheiser MKE 1 -
Sennheiser MKE 2 -
Sennheiser SL Headmic -
Shure Twinplex -
Shure Twinplex TH53 -
Sony ECM-77B -
Sony ECM-90 -

DUA0571 - Fur

A fur windscreen designed for use with the DPA 4071 lavalier microphone in heavier wind. The windscreen fur coat is sewn onto the inner mesh, making it 'totally insensitive' to handling noise caused by friction between the layers. DPA suggest 'the presence boost of the 4071 Omnidirectional Microphone will be virtually unaffected by the windscreen, however the high frequency roll off will set in a little earlier'.


DUA0020

A foam windscreen designed to fit a DPA pencil microphone. Coloured dark grey and manufactured from expanded foam with 25-30 pores per inch. The foam has a total length of 56mm and and inner bore diameter of 19mm.


DUA0028

Designed to fit the DPA 2011C pencil microphone, this windscreen is described as being 'well suited for outdoor applications for speech and close miking'. Finish is dark grey with a outer length of 72mm and inner bore diameter of 19mm.


DUA0040

A foam windscreen designed for the 4041 large diaphragm pencil microphone or microphone with a 24mm cartridge.


DUA0041

A foam windscreen designed to fit DPA pencil microphones with an active cable and 24mm cartridge.


DUA0073

Designed specifically for the DPA 4017 shotgun microphone, this dark grey foam is 'well suited' for outdoor applications where only a light breeze is present.


DUA0531

A selection of foam windscreens designed for DPA 4166 Slim and 4188 Slim headset and earset microphones. Each model denotes a different coloured foam with DUA0531-B being black, DUA0531-C being brown, DUA0531-F being beige. All models sold as a set of five pieces.


DUA0560, DUA0566, DUA0567, DUA0568

A selection of DPA foam windscreens for headsets and earsets with round capsule, or DPA 4060 series lavaliers. The size and construction of the foam ensures that the windscreen does not attenuate the higher frequencies more than the tolerance field of the microphone frequency response. Simultaneously it provides ‘excellent protection’ from wind and pop noises. Each model denotes a different coloured foam, with all sold as sets of five pieces.


DUA0570

A selection of DPA foam windscreens for headsets and earsets with round capsule, or DPA 4060 series lavaliers. The size and construction of the foam ensures that the windscreen does not attenuate the higher frequencies more than the tolerance field of the microphone frequency response. Simultaneously it provides ‘excellent protection’ from wind and pop noises. Sold as set of 8x assorted colours including black, blue, green, red, yellow, white, beige, and brown.


DUA0573

A single, dark grey foam designed for use in outdoor or indoor application with the DPA 4090 or 4091 pencil microphone.


DUA0580

Designed for compatibility with DPA SC4098, this windscreen is available in either black (DUA0580-B) or white (DUA0580-W) foam. Each comes in pack of five pieces.


DUA0587

A set of five replacement windscreens for DPA 4099 CORE instrument microphone. Also available for DPA 4099 Legacy version microphones, see DUA4099 - which is also sold as a pack of five. Finish (for both models) is black foam.


DUA9531

Available in black, white, beige, or brown finish, and supplied in packs of 5 pieces, and compatible with 6060/6061 lavalier microphones or 6066 headworn microphones.


DAK4060

This is an accessory kit designed for the 4060 series of miniature lavalier microphones. The kit comprises of black DPA zippered case, 8x windshields of assorted colour (green, red, white, beige, brown, yellow, black, and blue), 1x DMM0003-B, and 1x SCM0017-B.

MICROPHONE MOUNTS - Lavalier


SCM0001

Design for use with DPA 4660 series, heavy duty miniature microphones. This crocodile style, metal clip allows the user to mount a single microphone on the lapel or tie. The clip is finished in black.


SCM0004

SCM0004 small miniature clip is a ‘specially-designed’ clip for quick and easy chest mounting of DPA miniature microphones. Replacing the DMM0004, which does not fit the reinforced omnidirectional microphones, the holder is backwards compatible with the non-cable reinforced miniature microphones via an included sliced-cable relief. The mount is available in black (SCM0004-B) or white (SCM0004-W) finish. Also available in pack of 10x, see SCM0004-BX (black), or SCM0004-WX (white).


SCM0008

SCM0008 miniature clip is a double clip designed for quick and easy mounting of a lavalier miniature microphone on the chest of a speaker. When mounting a microphone on the two holes, cable noise is attenuated ‘dramatically’. The holder replaces the DMM00084, which does not fit the lavalier omnidirectional microphones. SCM0008 is backwards compatible with the non-cable reinforced lavalier miniature microphones via an included sliced-cable relief. The holder is available in black and white. Also available in pack of 10x, see SCM0008-BX (black)


SCM0013

A versatile, 4-way clip for DPA’s omnidirectional lavalier microphones. It allows the user to mount a single microphone in an upwards, downwards, left- or right-side position. SCM0013-B has a rear cable hook that can be used to control the cable run behind clothes whilst minimising the microphone’s visual appearance. SCM0013-B does not fit heavy duty lavalier microphones and is available in black finish only. Also available in pack of 10x, see SCM0013-BX.


SCM0017

SCM0017 is a holder for DPA miniature microphones. The clip creates distance to the capsule, minimizing noise created from clothes and fabric contact. It is flexible in the sense it allows you to use it for both left and right-side mounting. This holder is used with omnidirectional microphones that pick-up sound no matter which direction the microphone is placed in. SCM0017 replaces DMM0017, which does not fit the reinforced lavalier omnidirectional microphones. The holder is backwards compatible with the non-cable reinforced lavalier miniature microphones via an included sliced-cable relief. A rear cable hook controls cable run behind clothes and minimizes the mic’s visual appearance. This holder is available in black (SCM0017-B) or white (SCM0017-W) finishes. Also available in pack of 10x, see SCM0017-BX (black), or SCM0017-WX (white).


SCM0018

Discontinued

SCM0018 is essentially the same as SCM0017, however having dual microphone holders attached side by side it is in effect 2x SCM0017 mounting clips. Compatible with DPA 4060 series lavalier microphones. Finished in black.


SCM0020

An improved clip for DPA’s 4660 series heavy duty miniature microphones. The holder is an alternative to the SCM0001 heavy duty clip. SCM0020 is ‘extremely easy to mount’ and ‘intuitive to use’. The clamping mechanism ensures quick and easy chest mounting of heavy-duty miniature lavalier microphone. The mic can be mounted in two ways using this clip. The clip is finished in black.


SCM0030

An 8-way, 360degree clip that allows the DPA 6060 series lavalier microphone to be mounted in eight positions, chosen in fixed 45degree incremental steps. This makes it very easy to change the mics from women’s to men’s shirts (left to right-buttoned), or even t-shirts and the like where the neckline is used. Available in black (SCM0030-B) or white (SCM0030-W) finish.


SCM0032

Discontinued

Designed for use when extra audio security and redundancy is required. SCM0032 double clip for DPA 4060 series miniature lavalier microphones offers a flexible and sturdy solution. Available in black finish.


SCM0034

When extra audio security and redundancy is required, SCM0034 double clip for subminiature lavaliers offers a flexible and sturdy solution. The 360degree clip allows the DPA 6060 series lavalier to be mounted in eight fixed positions, chosen in 45degree incremental steps. This makes it very easy to change the mics from women’s shirts to men’s shirts (left- to right-buttoned) or even t-shirts and the like where the neckline is used. Available in black finish.


SCM0035

A clip designed specifically for DPA 2061 series miniature lavalier microphones. Available in black or white versions, the clip offers 360degree rotation for best microphone positioning, and a cable management solution for more discreet placement. The mount features a non-slip surface for the fingers and for clothing. DUA0593 is a pack of 5x replacement/spare mic mounts for SCM0035 clip.


DMM0002

DMM0002-B miniature microphone holder with double pin has been designed for the quick and easy mounting of a lavalier miniature microphone onto the chest of a speaker. The double pin ensures maximum mounting stability and makes it possible to fit the microphone even on t-shirts and sweaters. Compatible with DPA 4060 series miniature microphones. Available in black (DMM0002-B) finish.


DMM0003

DMM0003 uses a strong magnet for mounting a miniature microphone on a speaker. The magnet mount is supplied together with a small iron tag on an elastic necklace for placing inside clothes behind the magnet. As the magnet is mounted on the microphone holder it is also possible to use the holder on all other magnetic surfaces. DMM0003 can carry up to two DPA 4060 series lavalier miniature microphones by their cables or one by the housing. Available in black (DMM0003-B) finish.


DMM0007

A universal surface mount which is manufactured from soft rubber. The holder can connect miniature microphones to numerous instruments, using a special non-marking adhesive. The adhesive tape allows the microphone to be placed at virtually any location on the musical instrument. This adhesive, while providing a firm location for microphone mounting, retains its ability to adhere through multiple uses. The mount is compatible with DPA 4060 series omnidirectional miniature microphones. The holder is supplied in a box with five holders and 20 pieces of adhesive tape.


DMM0011

Designed for DPA 4060 series miniature microphones, DMM0011-B is a strong magnetic microphone holder that can accommodate up to two lavalier microphones by their cables or one by the housing. It is suited for use on anything that is magnetic, such as a grand or up-right piano (in the frame) or drums with magnetic rims. Sold singularly. Finished in black.


MHS6005

A pack of 5 pcs of soft rubber that can be used to attach a lavalier miniature microphone on a violin, viola, cello or double bass. The holder should be mounted between the tailpiece and the bridge. It can be turned upwards or downwards so that the mic will be placed either over or under the strings, depending on the desired sound colour or sound level. The lavalier miniature microphone is secured by its cable in a little clip, while the holder itself has a firm grip on two strings of the instrument with small hooks.


DMM0021

DMM0021 is a concealer for the DPA 4060 series miniature omnidirectional microphones. It features a separable construction; the top of the concealer can be separated from the base. This allows the user to affix the base to clothing with the top part remaining removable independently. A detachable space bracket is included with the concealer. This bracket allows distance to the clothing, preventing the creation of noise. The space bracket clicks in and out of the top of the concealer. DMM0021 concealer for lavalier 4060 series replaces both the DMM0012 concealer for 4060, concealer for lavalier 4060 and the DMM0009 concealer for lavalier 4071. Also available as a pack of 5x pieces, see DMM0521.

MICROPHONE MOUNTS – Instrument


AC4099 for Accordion

A clip designed to mount a DPA 4099 instrument microphone to an accordion. The mic clip can be attached permanently to the instrument using screws. The mic can be easily unclipped and repositioned or moved to another instrument whilst the mounting system is ‘designed to never blemish or scratch the finish’ of the instrument. The flexible design supports a wide variety of mounting and positioning possibilities.


BC4099 for Bass

A clip designed to connect a DPA 4099 instrument microphone to an acoustic upright bass, allowing several placement possibilities. The mic attaches to the E- and G-string below the bridge ensuring mic placement in the sweet spot between the bridge and fingerboard. The microphone can be easily unclipped and repositioned or moved to another instrument. The mounting system is ‘designed to never blemish or scratch the finish’ of the instrument. Also available in pack of 10x, see BC4099X.


CC4099 for Cello

A clip designed to connect a DPA 4099 instrument microphone to a cello. The clamp attaches to the C and A strings below the bridge allowing the placement of the microphone capsule in the sweet spot between the bridge and fingerboard. The mic can be easily unclipped and repositioned or moved to another instrument, whilst the mounting system is ‘designed to never blemish or scratch the finish’ of your instrument. Also available in pack of 10x, see CC4099X.


CM4099 Clamp Mount

CM4099 clamp mount has been designed to easily and quickly connect a DPA 4099 instrument microphone to many types of instruments, such as saxophones and brass instruments. The mounting mechanism makes it easy to move the mic between instruments with one hand. The mic can be easily unclipped and repositioned or moved to another instrument, whilst the mounting system is ‘designed to never blemish or scratch the finish’ of your instrument.


DC4099 for Drum

DC4099 drum mic clip has been designed to connect a DPA 4099 instrument microphone to any type of drum. A ‘revolutionary’ 90degree system provides a wide range of mounting options. By detaching the clip from the gooseneck and re-mounting it turned 90degrees, the number of mic positions is doubled. For the bass drum, the instrument VC4099 clip would be preferred for a better fir to the drum rim. The mic can be easily unclipped and repositioned or moved to another instrument, whilst the mounting system is ‘designed to never blemish or scratch the finish’ of your instrument. Also available in pack of 10x, see DC4099X.


GC4099 for Guitar

This clip is designed to connect a DPA 4099 instrument microphone to an acoustic guitar, mandolin, ukulele or dobro. It offers ‘practically unlimited placement possibilities’. The mic can be easily unclipped and repositioned or moved to another instrument, whilst the mounting system is ‘designed to never blemish or scratch the finish’ of your instrument. A flexible design supports a wide variety of mounting and positioning possibilities. Also available in pack of 10x, see GC4099X.


MS4099 for Mic Stand

MS4099 is a mic stand mount from DPA that can be used on both 3/8inch as well as 5/8inch threads, using the included insert. The barrel design of the actual mic holder, known from other DPA mounting options, makes it easy to insert and remove the microphone quickly and easily. In addition, the holder can be turned so the microphone can point vertically or horizontally, as the situation requires.


PC4099 for Piano

PC4099 is a magnet mount designed to place a 4099 instrument microphone onto a piano. The magnet mount provides stable and repeatable positioning, and the microphones can easily be positioned at different angles to provide a variety of sound nuances. The mounting system is ‘designed to never blemish or scratch the finish’ of your instrument. PC4099 mount can also be used with various instruments with magnetic surfaces. Also available in pack of 10x, see PC4099X.


STC4099 for Saxophone/Trumpet

Designed to connect a 4099 instrument microphone to a saxophone or trumpet, this mounting mechanism allows the user to move the microphone between instruments with one hand. The musician can use a mute together with the microphone clip and it remains easy to place your instrument in a stand with the mic and clip on. The mic can be easily unclipped and repositioned or moved to another instrument, whilst the mounting system is ‘designed to never blemish or scratch the finish’ of your instrument. A flexible design supports a wide variety of mounting and positioning possibilities. Also available in pack of 10x, see STC4099X.


UC4099 Universal

UC4099 universal mount has been designed to connect a DPA 4099 instrument microphone to slim bodied and unusually shaped instrument. The design of the microphone clip includes a hook-and-loop fastener strap which allows it to fit instruments of varying sizes and diameters such as the oboe, clarinet, bassoon, recorder, and flute. The fastener strap pulls tight to fit the circumference of the instrument, like a wristwatch on your arm. On instruments of a large diameter, additional fastener straps can easily be added to extend the clip’s reach. A 90degree system provides a wide range of mounting options. By detaching the clip from the gooseneck and re-mounting it turned 90degree, the number of mic positions is doubled.

The mic can be easily unclipped and repositioned or moved to another instrument, whilst the mounting system is ‘designed to never blemish or scratch the finish’ of your instrument. A flexible design supports a wide variety of mounting and positioning possibilities. Also available in pack of 10x, see UC4099X.


VC4099 for Violin

A clip designed to connect a DPA 4099 instrument microphone to a violin, viola, banjo, or mandolin. The mounting mechanism makes it easy to move the mic between instruments with one hand, whilst the mounting system is ‘designed to never blemish or scratch the finish’ of your instrument. A flexible design supports a wide variety of mounting and positioning possibilities. Also available in pack of 10x, see VC4099X.


GE4099 Gooseneck Extension

This gooseneck extension is specifically designed to be compatible with all DPA 4099 microphone solutions. It adds an additional 80mm of length so you can position the microphone slightly further off the instrument. GE4099 is compatible with 4099 instrument mics, 4097 micro shotgun microphone, and 4097 Interview Kit.

MICROPHONE MOUNTS – Pencil microphones


CSM4000 Compact Shock Mount

CSM4000 compact shock mount, also known as ‘the radiator mascot’, is a shock-mount designed for rubber suspension of pencil microphones with MMP-ER/ES or MMP-GR/GS preamplifiers on standard microphone stands, TB4000 table base, or MB4000 magnet base.

The soft rubber mount provides efficient absorption of vibrations that might occur during use. It is fitted with one DDS0019 rubber mount for 19mm diameter microphones as standard, however it can also be fitted with rubber mounts for both 11-13mm diameter and 16mm diameter microphones. A ‘robust’ plastic ring offers excellent protection of the microphone if used in more testing applications, for example, on a drum kit.

CSM4000 compact shock mount is fitted with a thread adapter which allows it to be used on up to three of the most popular international standard threads used on microphone stands.

Note: CSM4000 is not compatible with the DPA 4017 shotgun microphone.


UA0897 Shock Mount

UA0897 shock mount is designed for use in environments where vibration levels are unusually high. It's compact design significantly reduces the amount of vibration that reaches the mic. The shock mount was designed using modern vibration measuring techniques using Brüel & Kjær's world famous vibration test equipment. Unlike other shock mounts, the vibration reduction is clearly specified. UA0897 can be used stand mounted in the studio or in hand-held boom applications.

UA0897 is supplied as standard with a rubber mount for 19mm microphones.


CXO4000 XY/ORTF Stereo Holder

CXO4000 compact XY/ORTF stereo holder allows the mounting DPA pencil microphones with MMP-ER/ES or MMP-GR/GS preamplifiers in both a coincident XY stereo configuration as well as in a near-coincident ORTF combined time and intensity difference stereo configuration. Two hooks in the middle of the stereo holder are for XY stereo, while the two hooks on the side are for ORTF stereo. It is possible to use both stereo setups simultaneously in order to compare afterwards in the editing process. The user can also use the holder to record in surround sound using one front and one back-orientated stereo setup.

This lightweight holder is a convenient and practical tool for mounting pencil microphones on a single microphone stand so they take up very little space. CXO4000 is manufactured from black anodized aluminium and ethyl propylene rubber rings to ensure durability and stability. For flexibility, the holder also includes a thread adapter for attachment to most common microphone stands.

Note: CSM4000 is not compatible with the DPA 4017 shotgun microphone.


SM1500 Double Pole Shock Mount

This shock mount uses a double-pole construction on an adjustable microphone stand base. Both omnidirectional and directional microphones, compact as well as larger, are compatible with this mount. It is an especially important piece of gear when using pressure gradient (directional) microphones, which need extra suppression of vibrations.

Almost any microphone can be used in this shock mount by simply adding another Lyre rubber piece, with softer rubber used for lighter microphone. The design of this shock mount ensures the holders can be mounted facing both upwards or downwards. The poles can be adjusted by pushing to one side or the other.


SM4000-C Suspension Mount

This is an optional accessory for all short pencil microphones that have an MMP-C, MMP-E or MMP-G preamp. By wrapping the coil around the cable of the microphone preamp, the mount allows the microphone to be hung from the ceiling or the like and be oriented in any direction desired, just by bending the holder. SM4000-C is compatible with DPA 4007 (12mm), and DPA 4015 microphones.


UA0639 Microphone Clip

This microphone clip is based on a traditional design, but with additional modifications resulting in a tighter and firmer grip on the microphone. The clip has been designed with compatibility for all DPA pencil recording microphones and other microphones with 19mm diameter housings. Available in black finish.


UA0961 Microphone Clip

This microphone clip fits all DPA large diaphragm and standard pencil microphones or other mics with 19mm housing. The clip has a unique design, which ensures that the microphone is held securely at all times. It is best suited for use in permanent or semi-permanent set-ups, where the stability of the microphone is of important.


SBS0400 Stereo Boom

This lightweight stereo boom with shock mounted microphone holders, addresses the need for quick, precise, and repeatable ways to switch between AB, XY, ORTF and DIN stereo principles. The shock mounts included in this solution hold both omnidirectional and directional microphones, compact as well as larger. Additional holders can be attached to it for mounting more than two microphones.

Markers indicate parallel microphones positioning plus 90degree and 110degree offset for XY an ORTF configurations. A central base with a rotary joint allows the microphones to be angled equally. The stereo boom has hooks for suspending the boom in wires. The boom measures 40cm in length.


UA0836 Stereo Boom

UA0836 stereo boom is a ‘precision-crafted’ microphone boom for secure mounting of microphone pairs for A-B stereo recordings. It allows the user to adjust both microphone spacing and microphone angle. The boom can be mounted on a stand or suspended from wires. There are centimetre graduations marked on the boom, and angle graduations on the microphone holder for quick and easy configuration of the recording set-up. Boom length: 54cm.

COVERS AND GRIDS


DUA0523 Makeup and Moisture Filter

A makeup and moisture filter for headset and earset microphones with a slim capsule, including 4166, 4266, 4188, and 4288 slim microphones. This filter is pre-mounted on all DPA slim headset microphones. Sold as a pack of five pieces. Available in black (DUA0523B), beige (DUA0523F), or brown (DUA0523C).


DUA0590 Makeup Cover

Used to protect the microphone capsule when applying make on the talent. Fits most round-headed omnidirectional DPA lavalier and headset microphones, including 4060, 4061, 4062, 4063, 4066, 4266 (also in-ear versions) and 4488. Sold as a pack of five pieces. Colour: Blue.


DUA0591 Makeup Cover

Used to protect the microphone capsule when applying make on the talent. Fits most round-headed, directional dpa headset microphones, including 4088, 4288 (also in-ear versions). Sold as a pack of five pieces. Colour: Red.


DUA0592 Makeup Cover

DUA0592 is a makeup cover designed for compatibility with DPA headset and earsets with slim capsule. The makeup cover protects the microphone when applying makeup. Compatible with 4166, 4266, 4188, and 4288 slim variants. Sold as a pack of five pieces. Colour: Red.


DUA0585 Makeup Cover and ID Tags

A single DUA0592 in red with a set of 5x coloured ID rings.


DUA9501 Makeup Cover

Used to protect the microphone capsule when applying make on the talent. DUA9501 is compatible with DPA subminiature lavalier and headset microphones including 6060, 6061, and 6066. Sold as a pack of five pieces. Colour: Orange.


DUA0572 Miniature Mesh

A miniature mesh for use with DPA 4071 omnidirectional microphone. The mesh reduces slight wind noise or pop noise from a speaker's voice or any other turbulence that can cause the diaphragm to disperse. DUA0572 will give a high frequency boost that is strongest on axis. For use on a speaker’s chest, DPA recommend the user to mount the microphone pointing upwards in order to avoid boosting the reflections.


DUA6001, DUA6003, DUA6005, Miniature Grid

A miniature grid with soft boost for lavalier miniature and headset microphones. When fitted, the grid introduces a 3dB soft boost around 8-20kHz for applications where the miniature microphones need to be placed on the head of the performer.

The metal grid is anodized stainless steel and available in beige (DUA6003), brown (DUA6017), white (DUA6005) and black (DUA6001). Sold in packs of five pieces.


DUA6002, DUA6004, DUA6006 Miniature Grid

A miniature grid with soft boost for lavalier miniature and headset microphones. When fitted, the grid introduces a 10dB soft boost around 8-20kHz for applications where the miniature microphones need to be placed on the chest of the performer.

The metal grid is anodized stainless steel and available in beige (DUA6004), brown (DUA6018), white (DUA6006) and black (DUA6002). Sold in packs of five pieces.


DUA9301 Microphone Grid

A durable protective cap for the subminiature lavalier and headset microphones that can easily be removed for cleaning. A tactile and audible ‘click’ ensures that the cap has been secured properly to the microphone housing. The grid resembles the well-known DPA logo and the tiny grid holes help protect the microphone capsule from water and sweat. Compatible with 6060 and 6066 microphones. Available in black (DUA9301-B), beige (DUA9301-F), brown (DUA9301-C), or white (DUA9301-W).


DUA9302 Subminiature Cap, paintable

A white-painted, stainless steel cap for 6000 series, subminiature microphones. The cap can be painted and/or covered in makeup which allows for better and more discreet mic placement when miking up talent for theatre productions.

When the DUA9302 is attached to the 6060 subminiature microphone, IP58 certification is still applicable.
