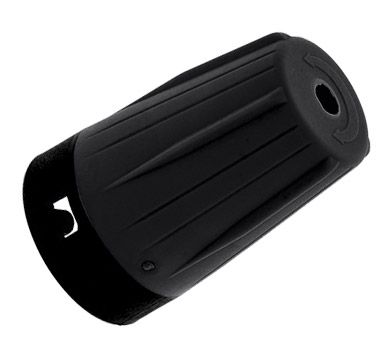

NEUTRIK BST-BNC-0 BNC REAR TWIST CABLE BOOT Black

Stock code
48-650
Brand
Neutrik
Model number
  • BST-BNC-0
Colour
  • BlackBlack
NEUTRIK BST-BNC-0 BNC REAR TWIST CABLE BOOT Black

NEUTRIK BNC CONNECTORS - Male, cable - Crimp - 3G HD-SDI - Rear Twist

This range of high quality BNC connectors offers excellent mechanical and electrical performance and simple assembly. Precision machined components give true 75 ohm impedance and excellent return-loss, even at frequencies up to 4.5GHz, making them suitable for 3Gb/s HD-SDI 1080p, SD-SDI and analogue video. A compact variation on the traditional BNC twist-lock connector, mating / un-mating is achieved by twisting the whole connector, rather than just an awkward knurled front coupling nut as on conventional styles.

The integral cable strain relief boot gives an extended area of grip making these ideal for recessed connection panels or high-density termination panels , where restricted access to the ‘head’ of a conventional connector might be an issue. An integral black cable boot is standard with each connector (unless ordered in dissassembled packs - see ordering note at foot of group description) and provides strain relief. Additional coloured boots, for easy cable identification, may be ordered separately and substituted at the time of assembly. BST-BNC boots are for use with NBNC type connectors, BST-BLC boots are for use with NBLC type connectors. A rubber cap with cable attachment loop is also available.

Both the centre pin and outer screen (braid) are crimped using a Neutrik crimp tool and die-set, see NEUTRIK CRIMP TOOLS - Co-axial connectors - Multi purpose, including Rear Twist, Push-Pull, BNC.

The correct size connector and corresponding crimp dies must be used for each cable.

Sizes for popular cables are listed and stocked, versions for other cables are available to special order, please contact Technical Support.

Required accessories: Neutrik crimp tool and die-set.
Optional accessories: Colour coded cable strain relief boots.

Connector Canford Canare Draka Belden Other Hex Hex Pin
cables cables cables cables cables crimp crimp crimp
die die die
code size mm size mm
NBTC75B-FI4 179DT C 4.06 1.6
NBTC75B-NN5 SDV-M 0.41/1.9AF C 4.53 1.6
NBNC75B-DD6 L2.5CHWS 1855A D 4.5 1.6
NBNC75B-FG7 SDV, SDV-X 0.6/2.8AF 1855ENH Image 360 G 5 1.6
NBNC75B-HK7 L-3CFB J 5.41 1.6
NBNC75B-LP7 RG59B/U LV-61S 8241 P 6.47 1.6
NBNC75B-JP9 1505F P 6.47 1.6
NBNC75B-LP9 SDV-I-X-LFH L-4CFB 0.8/3.7AF 1505A Image 720 P 6.47 1.6
NBNC75B-LS7 VCS (PSF1/3) S 7.01 1.6
NBNC75B-NP9 CAE VCB75 P 6.47 1.6
NBNC75B-TU11 1694A U 7.36 1.6
NBNC75B-RU11 1694F U 7.36 1.6
NBNC75B-UU11 SDV-L, SDV-L-X-LFH, SDV-F, SDV-XF 1.0/4.8AF Image 1000 U 7.36 1.6
NBNC75B-WU13 SDV-F-HD 1.2L/4.8Dz U 7.36 1.6
NBNC75B-XU13 CAE VCB100 U 7.36 1.6
NBNC75B-YY11 L-5CFB Y 8.23 1.6
NBLC75B-SX14 1.4/6.6AF X 9.73 1.75
NBLC75B-VZ17 SDV-HD 7731A Image 2000 ZPLUS 10.0 1.8

Note: The Neutrik letter code indicating screen crimp die sizes do not relate to the Canford cable group. See Coaxial connector selection guidance for Canford cable groups.

Ordering note:

Some types are also available disassembled, in bulk packs of 100. Note that cable boots are NOT included, and should be ordered separately as required.

  Description Price (£) Add to basket
Show carriage
NEUTRIK NBTC75BFI4 BNC 3G Male cable, rear twist, group J   Stock code: 48-623
Please login for stock availability and lead times.
1+ £4.46
10+ £4.06
50+ £3.84
100+ £3.39
NEUTRIK NBTC75BNN5 BNC 3G Male cable, rear twist, group W   Stock code: 48-620
Please login for stock availability and lead times.
1+ £4.46
10+ £4.06
50+ £3.84
100+ £3.39
NEUTRIK NBNC75BDD6 BNC 3G Male cable, rear twist, Belden 1855A   Stock code: 48-6301
Please login for stock availability and lead times.
1+ £2.48
10+ £2.26
50+ £2.13
100+ £1.88
NEUTRIK NBNC75BFG7 BNC 3G Male cable, rear twist, group X   Stock code: 48-611
Please login for stock availability and lead times.
1+ £2.48
10+ £2.26
50+ £2.13
100+ £1.88
NEUTRIK NBNC75BHK7 BNC 3G Male cable, rear twist, Canare L-3CFB   Stock code: 48-6302
Please login for stock availability and lead times.
1+ £2.48
10+ £2.26
50+ £2.13
100+ £1.88
NEUTRIK NBNC75BLP7 BNC 3G Male cable, rear twist, group Q   Stock code: 48-612
Please login for stock availability and lead times.
1+ £2.48
10+ £2.26
50+ £2.13
100+ £1.88
NEUTRIK NBNC75BJP9 BNC 3G Male cable, rear twist, Belden 1505F   Stock code: 48-619
Please login for stock availability and lead times.
1+ £2.48
10+ £2.26
50+ £2.13
100+ £1.88
NEUTRIK NBNC75BLP9 BNC 3G Male cable, rear twist, Canare L-4CFB   Stock code: 48-613
Please login for stock availability and lead times.
1+ £2.48
10+ £2.26
50+ £2.13
100+ £1.88
NEUTRIK NBNC75BLS7 BNC 3G Male cable, rear twist, group B   Stock code: 48-614
Please login for stock availability and lead times.
1+ £2.48
10+ £2.26
50+ £2.13
100+ £1.88
NEUTRIK NBNC75BNP9 BNC 3G Male Cable, rear twist, for CAE VCB75   Stock code: 48-627
Please login for stock availability and lead times.
1+ £2.48
10+ £2.26
50+ £2.13
100+ £1.88
NEUTRIK NBNC75BTU11 BNC 3G Male cable, rear twist, Belden 1694A   Stock code: 48-6303
Please login for stock availability and lead times.
1+ £2.48
10+ £2.26
50+ £2.13
100+ £1.88
NEUTRIK NBNC75BRU11 BNC 3G Male cable, rear twist, Belden 1694F   Stock code: 48-622
Please login for stock availability and lead times.
1+ £2.48
10+ £2.26
50+ £2.13
100+ £1.88
NEUTRIK NBNC75BUU11 BNC 3G Male cable, rear twist, Draka 1.0/4.8AF   Stock code: 48-6304
Please login for stock availability and lead times.
1+ £2.48
10+ £2.26
50+ £2.13
100+ £1.88
NEUTRIK NBNC75BWU13 BNC 3G Male cable, rear twist, Canford SDV-F-HD   Stock code: 48-617
Please login for stock availability and lead times.
1+ £2.48
10+ £2.26
50+ £2.13
100+ £1.88
NEUTRIK NBNC75BXU13 BNC 3G Male Cable, rear twist, for CAE VCB100   Stock code: 48-628
Please login for stock availability and lead times.
1+ £2.48
10+ £2.26
50+ £2.13
100+ £1.88
NEUTRIK NBNC75BYY11 BNC 3G Male cable, rear twist, Canare L-5CFB   Stock code: 48-616
Please login for stock availability and lead times.
1+ £2.48
10+ £2.26
50+ £2.13
100+ £1.88
NEUTRIK NBLC75BSX14 BNC 3G Male cable, rear twist, for Draka 1.4/6.6AF   Stock code: 48-629
This item is discontinued. Please contact Technical Support for advice on alternatives.
NEUTRIK NBLC75BVZ17 BNC 3G Male cable, rear twist, group Z   Stock code: 48-618
Please login for stock availability and lead times.
1+ £4.76
10+ £4.33
50+ £4.09
100+ £3.62
NEUTRIK BST-BNC-0 BNC REAR TWIST CABLE BOOT Black Black Stock code: 48-650
Please login for stock availability and lead times.
1+ £0.32
10+ £0.29
50+ £0.28
100+ £0.24
NEUTRIK BST-BNC-1 BNC REAR TWIST CABLE BOOT Brown Brown Stock code: 48-651
Please login for stock availability and lead times.
1+ £0.32
10+ £0.29
50+ £0.28
100+ £0.24
NEUTRIK BST-BNC-2 BNC REAR TWIST CABLE BOOT Red Red Stock code: 48-652
Please login for stock availability and lead times.
1+ £0.32
10+ £0.29
50+ £0.28
100+ £0.24
NEUTRIK BST-BNC-3 BNC REAR TWIST CABLE BOOT Orange Orange Stock code: 48-653
Please login for stock availability and lead times.
1+ £0.32
10+ £0.29
50+ £0.28
100+ £0.24
NEUTRIK BST-BNC-4 BNC REAR TWIST CABLE BOOT Yellow Yellow Stock code: 48-654
Please login for stock availability and lead times.
1+ £0.32
10+ £0.29
50+ £0.28
100+ £0.24
NEUTRIK BST-BNC-5 BNC REAR TWIST CABLE BOOT Green Green Stock code: 48-655
Please login for stock availability and lead times.
1+ £0.32
10+ £0.29
50+ £0.28
100+ £0.24
NEUTRIK BST-BNC-6 BNC REAR TWIST CABLE BOOT Blue Blue Stock code: 48-656
Please login for stock availability and lead times.
1+ £0.32
10+ £0.29
50+ £0.28
100+ £0.24
NEUTRIK BST-BNC-7 BNC REAR TWIST CABLE BOOT Violet Violet Stock code: 48-657
Please login for stock availability and lead times.
1+ £0.32
10+ £0.29
50+ £0.28
100+ £0.24
NEUTRIK BST-BNC-8 BNC REAR TWIST CABLE BOOT Grey Grey Stock code: 48-658
Please login for stock availability and lead times.
1+ £0.32
10+ £0.29
50+ £0.28
100+ £0.24
NEUTRIK BST-BNC-9 BNC REAR TWIST CABLE BOOT White White Stock code: 48-659
Please login for stock availability and lead times.
1+ £0.32
10+ £0.29
50+ £0.28
100+ £0.24
NEUTRIK BST-BNC-CY BNC REAR TWIST CABLE BOOT Turquoise Turquoise Stock code: 48-6338
Please login for stock availability and lead times.
1+ £0.32
10+ £0.29
50+ £0.28
100+ £0.24
NEUTRIK BST-BLC-0 BNC REAR TWIST CABLE BOOT Large, black Black Stock code: 48-6330
Please login for stock availability and lead times.
1+ £0.46
10+ £0.42
50+ £0.40
100+ £0.35
NEUTRIK BST-BLC-CY BNC REAR TWIST CABLE BOOT Large, turquoise Turquoise Stock code: 48-6331
Please login for stock availability and lead times.
1+ £0.46
10+ £0.42
50+ £0.40
100+ £0.35
NEUTRIK RBR-CAP-CABLE-BNC Rubber cap for BNC cable connectors   Stock code: 48-6339
Please login for stock availability and lead times.
1+ £1.02
10+ £0.93
50+ £0.88
100+ £0.78
NEUTRIK NBTC75BFI4-D BNC 3G Male cable, rear twist, group J (pack of 100, disassembled)   Stock code: 48-6323
Please login for stock availability and lead times.
1+ £310.10
5+ £291.50
per pack
NEUTRIK NBNC75BFG7-D BNC 3G Male cable, rear twist, group X (pack of 100, disassembled)   Stock code: 48-6311
Please login for stock availability and lead times.
1+ £161.70
5+ £152.00
per pack
NEUTRIK NBNC75BLP7-D BNC 3G Male cable, rear twist, group Q (pack of 100, disassembled)   Stock code: 48-6312
Please login for stock availability and lead times.
1+ £161.70
5+ £152.00
per pack
NEUTRIK NBNC75BLP9-D BNC 3G Male cable, rear twist, Canare L-4CFB (pack of 100, disassembled)   Stock code: 48-6313
Please login for stock availability and lead times.
1+ £161.70
5+ £152.00
per pack
NEUTRIK NBNC75BWS11-D BNC 3G Male cable, rear twist, group Y (pack of 100, disassembled)   Stock code: 48-6315
Please login for stock availability and lead times.
1+ £161.70
5+ £152.00
per pack
