A series of Dante enabled loudpeakers from Muxlab, designed for installation in conference rooms, retail, places of worship, hospitals, restaurants, and travel.

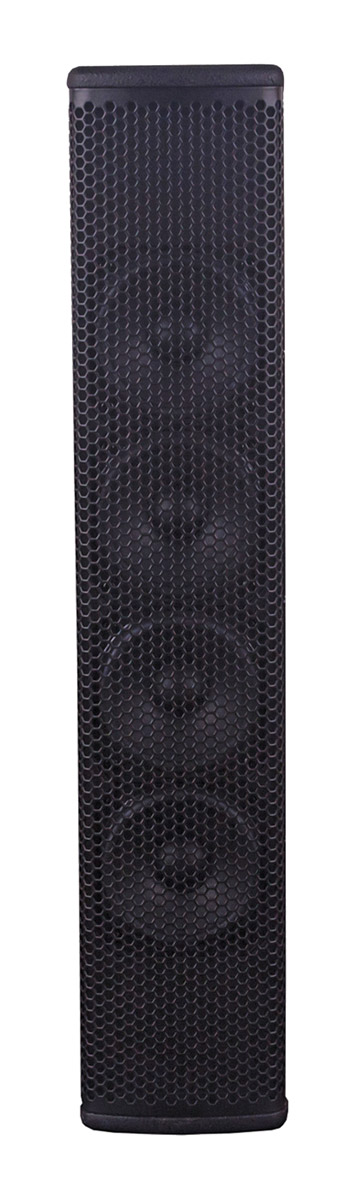

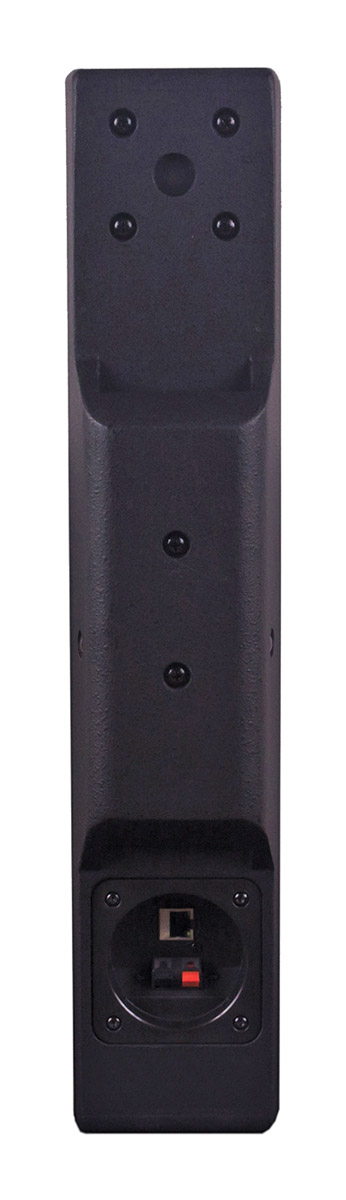

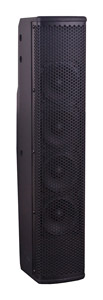

500220 Column loudspeaker, 60W
Manufactured from 15mm MDF wood, 500220 loudspeaker comprises of four 3-inch ferrite bass drivers with 25m voice coils to provide a frequency response of 105Hz to 16kHz and a maximum SPL of 108dB at 1m. The 60W speaker can be used as speech or sound reinforcement albeit subwoofers would be recommended for higher music output. DSP functionality allows gain, mute and 5-band parametric EQ adjustment.
Audio input is via Dante network audio on Ethernet, and power is via PoE making the loudspeaker attractive for positioning out of reach, and/or following long cable runs. A U-shaped frame allows the user to mount in a fixed position or in an adjustable +/-15 degree angle. An optional NBT717M wall mount frame would allow vertical or horizontal fixing with multiple angles.
500220 includes calibration software for accurate and best performance setup.
Frequency response: 105Hz to 16kHz. Output power: 60W. Sensitivity: 88dB SPL, 1W/1m at 100Hz. Maximum continuous level: 108dB. Peak level SPL: 114dB. Nominal impedance: 8ohms. Power supply: PoE+, IEEE 802.3AT/BT. Dimensions (HxWxD): 500 x 100 x 160mm. Weight: 3.99kg

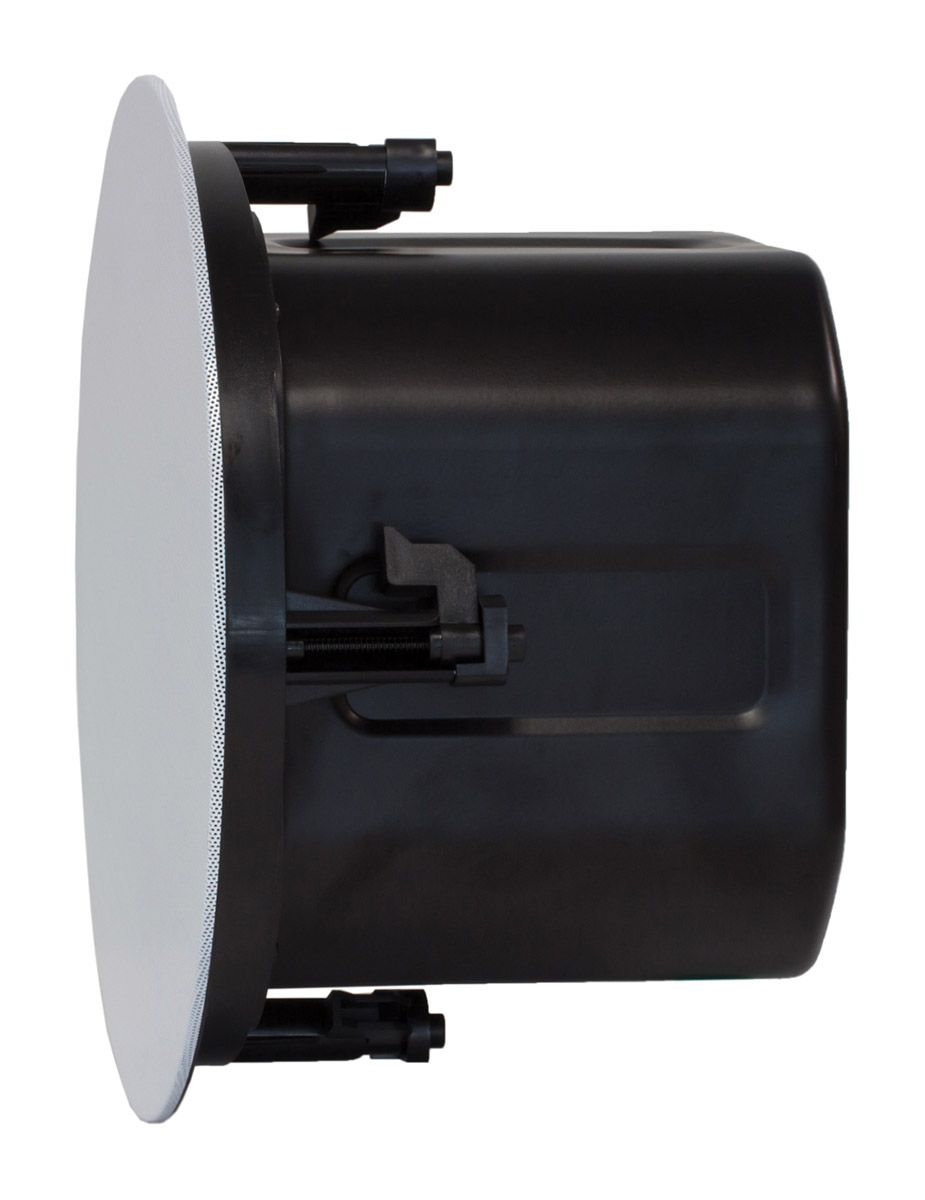

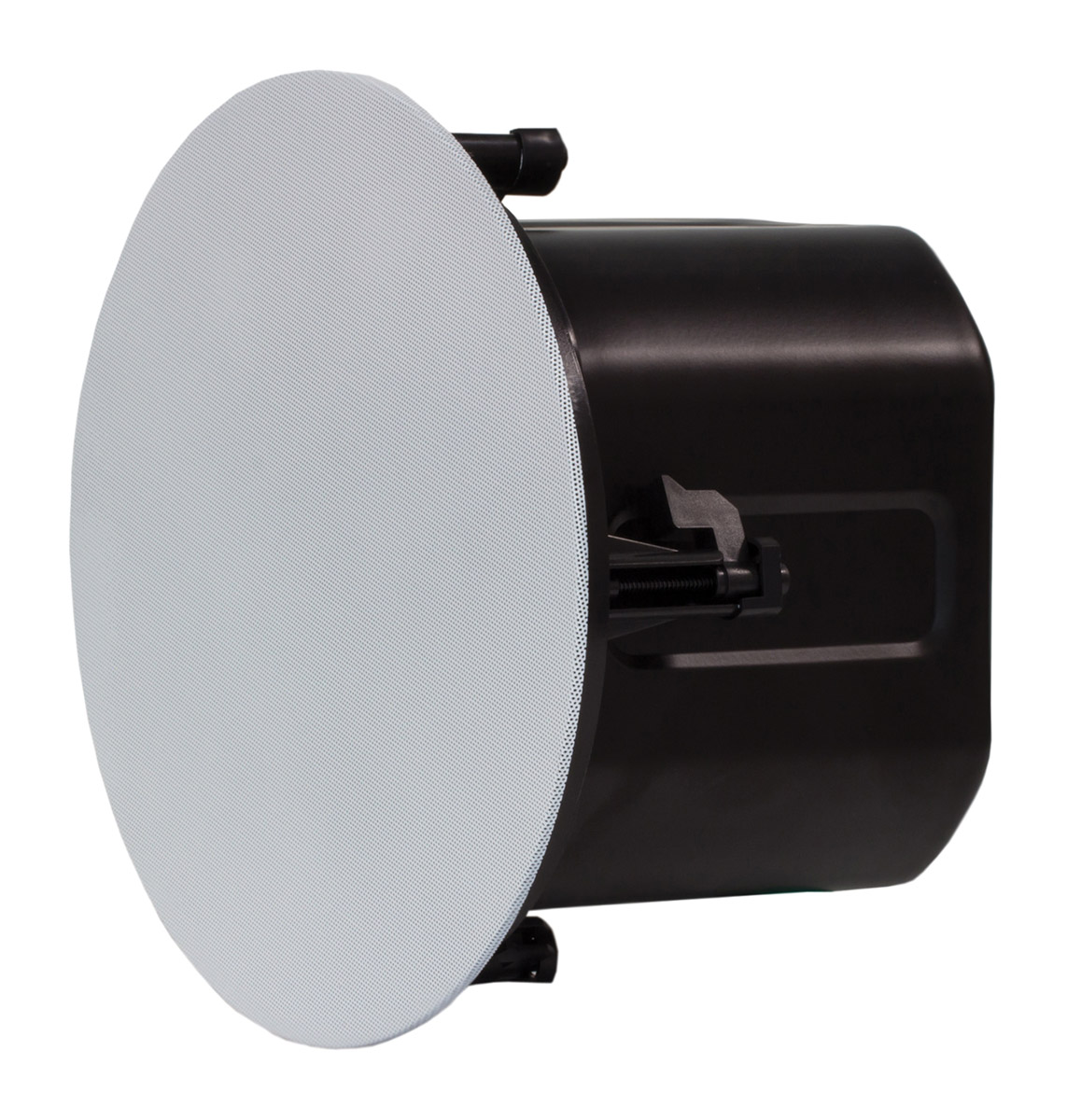

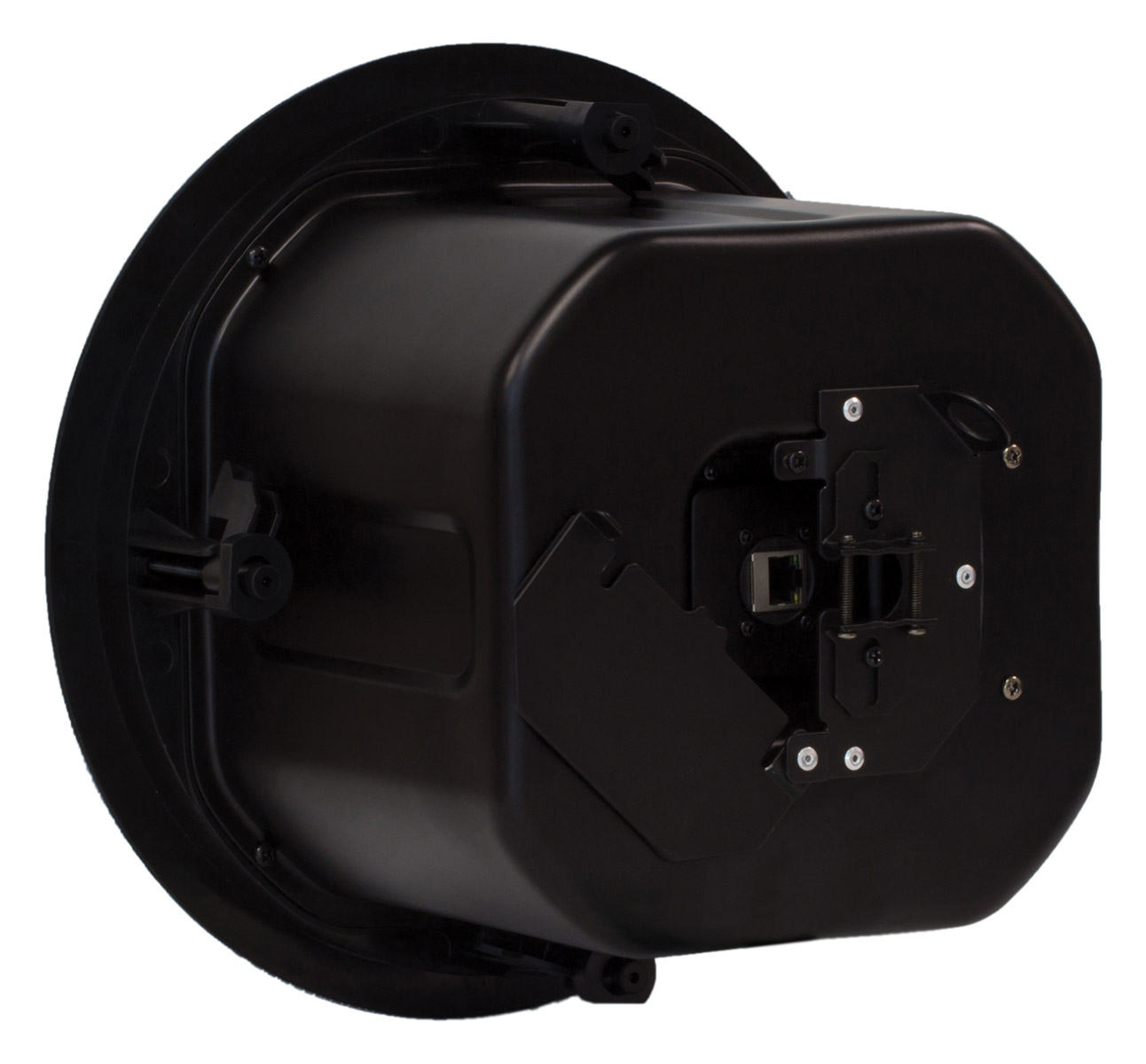

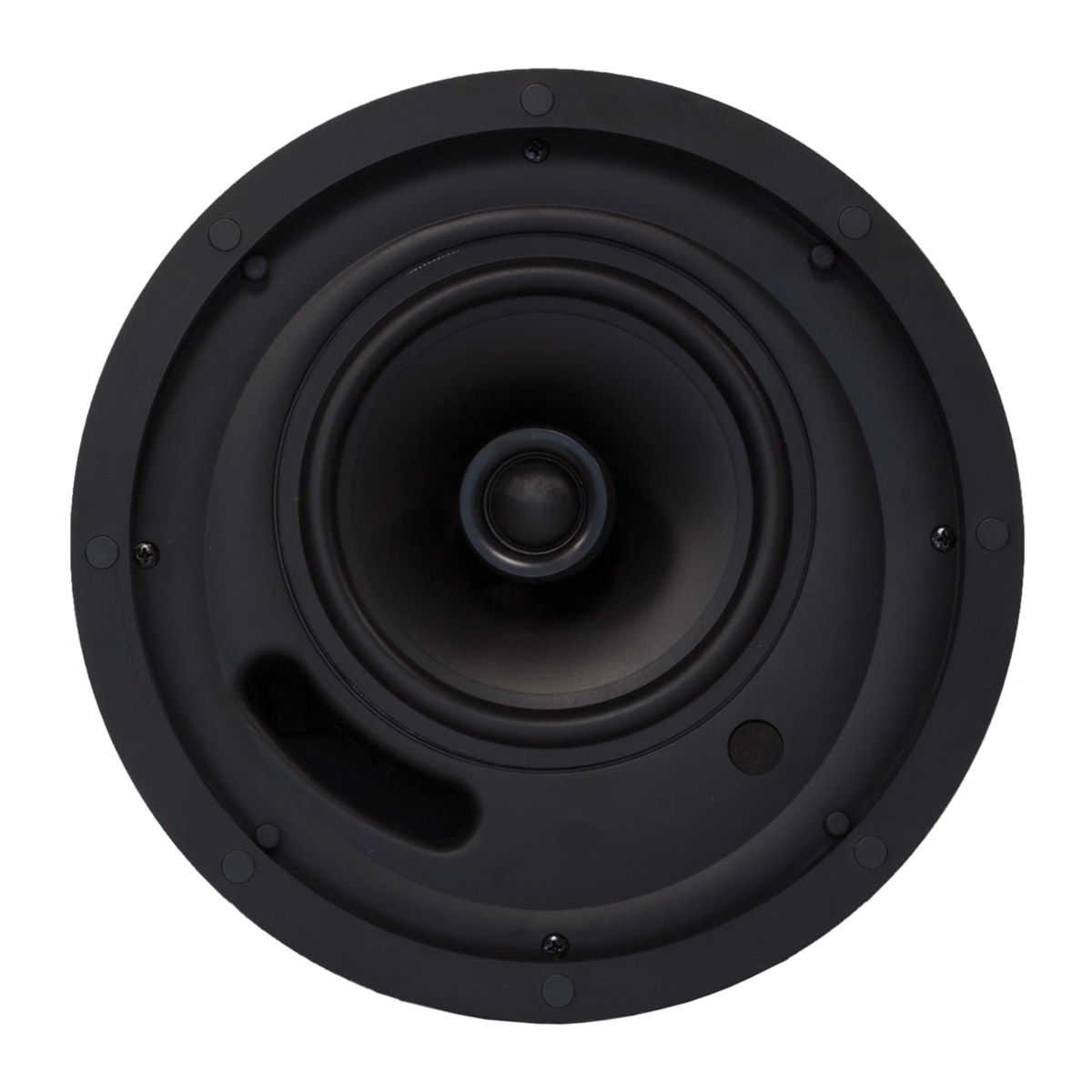

500221 Ceiling loudspeaker, 40W
500221 is a circular ceiling mountable loudspeaker. The speaker operates over Dante network and is powered via PoE to offer 40W output with frequency response of 90Hz to 16-kHz. The 6.5-inch low frequency and 1-inch high frequency coaxial driver is designed to offer an ‘advanced linear response’ for background music and vocal performance, particularly for announcement. Internal DSP allows control over gain, mute, 5-band parametric EQ and limiting. Network interfacing is via a single RJ45.
A cutout of 246mm diameter and 240mm depth is required for mounting, which is aided via a built in ‘buckle’.
500221 includes calibration software for accurate and best performance setup.
Frequency response: 90Hz to 16kHz. Output power: 40W. Power supply: PoE+, IEEE 802.3AT/BT. Dimensions (Diam.xD): 28 x 176mm. Weight: 2.8kg
