REAN TINY-XLR MINIATURE XLR STYLE CONNECTORS

24 items
REAN RT3FC-B Female cable
REAN RT3FC-B Female cableREAN RT3MP Male panel

Commonly used with miniature microphones, these connectors are available in 3, 4 and 5-pin formats, with gold solder contacts.

The cable connectors incorporate a chuck-type clamp and strain relief, and are suitable for cables 2.0mm to 4.5mm diameter. A screening-ring provides a low-resistance screen-to-shell connection giving the best EMI/RF protection. The keyed insert and chuck prevent misaligned parts or cable damage due to rotation during tightening. The diecast shell is black plated, contacts are gold plated bronze.

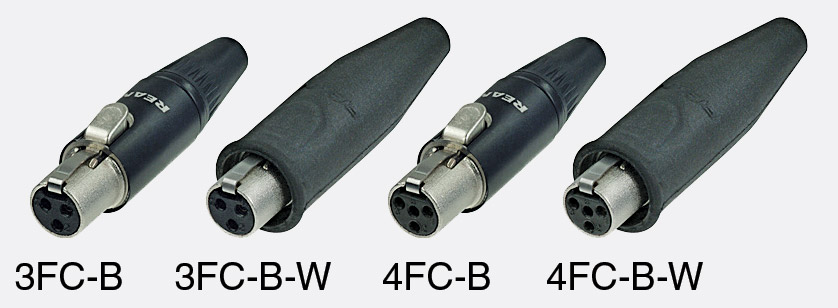

The -W versions of the cable connector incorporates a rubber sealing boot to protect the mated connectors from dust, sweat or other fluids.

The 'T' versions of the cable connector have threaded locking rings.

MP type panel connectors have a round, nickel-plated bezel, and require an 11.3mm panel hole with anti-rotation flat. Maximum panel thickness 6.0mm. MPR type are rear-mountable, same panel cutout as MP type but maximum panel thickness 3mm. Contacts are gold plated brass. The connector is watertight, even in an unmated condition.

Note: These connectors mate with the Switchcraft Tini-QG series.

Rean is a brand of Neutrik AG.

Description Price $
ex. VAT
Add to basket
Delivery
REAN RT3FC-B Female cable Stock code: 43-5071
Out of stock but available to backorder, stock expected: 11/12/2024.
1+ $2.61
10+ $2.38
50+ $2.24
100+ $1.98
REAN RT3MC-B Male cable Stock code: 43-5111
1 in stock Need more?
1+ $2.46
10+ $2.24
50+ $2.11
100+ $1.87
REAN RT3FC-B-W Female cable Stock code: 43-5072
65 in stock Need more?
1+ $3.23
10+ $2.93
50+ $2.78
100+ $2.46
REAN RT3FCT-B Female cable Stock code: 43-5103
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
1+ $8.19
10+ $7.45
50+ $7.04
100+ $6.22
REAN RT4FC-B Female cable Stock code: 43-5073
Out of stock but available to backorder, expected in 4‑6 weeks. Need it sooner? Call us
1+ $3.15
10+ $2.87
50+ $2.71
100+ $2.39
REAN RT4MC-B Male cable Stock code: 43-5112
70 in stock Need more?
1+ $2.94
10+ $2.68
50+ $2.53
100+ $2.24
REAN RT4FC-B-W Female cable Stock code: 43-5074
57 in stock Need more?
1+ $3.74
10+ $3.40
50+ $3.21
100+ $2.84
REAN RT4FCT-B Female cable Stock code: 43-5104
4 in stock Need more?
1+ $4.53
10+ $4.12
50+ $3.89
100+ $3.44
REAN RT5FC-B Female cable Stock code: 43-5101
102 in stock Need more?
1+ $3.56
10+ $3.24
50+ $3.06
100+ $2.70
REAN RT5MC-B Male cable Stock code: 43-5113
83 in stock Need more?
1+ $3.33
10+ $3.03
50+ $2.87
100+ $2.53
REAN RT5FC-B-W Female cable Stock code: 43-5102
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
1+ $3.56
10+ $3.24
50+ $3.06
100+ $2.70
REAN RT5FCT-B Female cable Stock code: 43-5105
Ordered on demand, available in 3‑5 working days. Need it sooner? Call us
1+ $17.20
10+ $15.65
50+ $14.80
100+ $13.07
REAN RT3MP Male panel Stock code: 43-5075
46 in stock Need more?
1+ $2.41
10+ $2.19
50+ $2.07
100+ $1.83
REAN RT3MPR Male panel Stock code: 43-5078
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
1+ $2.28
10+ $2.07
50+ $1.96
100+ $1.73
REAN RT4MP Male panel Stock code: 43-5076
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
1+ $2.74
10+ $2.50
50+ $2.36
100+ $2.09
REAN RT4MPR Male panel Stock code: 43-5079
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
1+ $2.61
10+ $2.38
50+ $2.24
100+ $1.98
REAN RT5MP Male panel Stock code: 43-5077
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
1+ $3.10
10+ $2.82
50+ $2.66
100+ $2.36
REAN RT5MPR Male panel Stock code: 43-5080
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
1+ $3.00
10+ $2.73
50+ $2.57
100+ $2.28

Discontinued products

REAN RT3FC-B-D Female cable (pack of 100, disassembled) Stock code: 43-5081
Discontinued. See the product page for suggested alternatives.
REAN RT3FC-B-W-D Female cable (pack of 100, disassembled) Stock code: 43-5082
Discontinued. Please contact Technical Support for alternatives.
REAN RT4FC-B-D Female cable (pack of 100, disassembled) Stock code: 43-5083
Discontinued. Please contact Technical Support for alternatives.
REAN RT4FC-B-W-D Female cable (pack of 100, disassembled) Stock code: 43-5084
Discontinued. Please contact Technical Support for alternatives.
REAN RT3MP-D Male panel (pack of 100, disassembled) Stock code: 43-5085
Discontinued. Please contact Technical Support for alternatives.
REAN RT4MP-D Male panel (pack of 100, disassembled) Stock code: 43-5086
Discontinued. Please contact Technical Support for alternatives.
