LANDE RACKS - Mounting Profiles, DIN rails - For ES466E Series
Vertical mounting-profiles, DIN-rails and 19-inch frames for use with Lande ES466E Series cabinets.

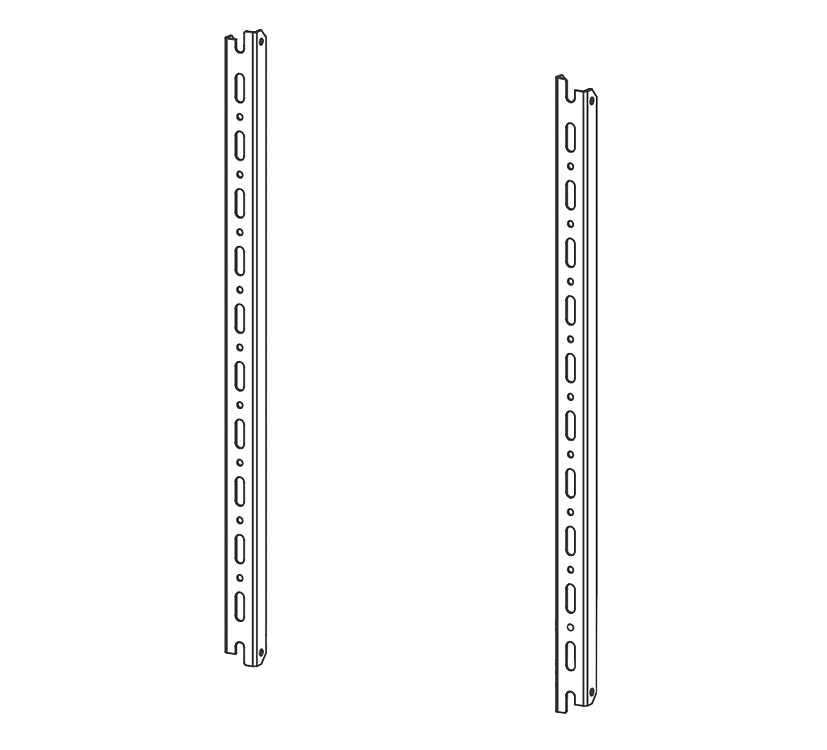

These are galvanised, folded-steel profiles which may be fitted to the rear of the Lande ES466E Series wall cabinets. The mounting profiles are alternately-perforated, down the full front-face, with 25x8.5mm slots and 5.4mm diameter holes. Available in eight heights and supplied as a pair. The DIN-rails listed in this section can be horizontally fixed to these profiles, to mount electrical components and devices. Note that the cabinet mounting-plate must be removed before installing the vertical mounting-profiles.
Used to mount electrical components and devices. These DIN-rails are made from 1mm galvanised, folded-steel, available in five widths, each 35mm high and 7.5mm deep. They are alternately-perforated, across the full width with 30x8mm slots and 5.4mm diameter holes, for easy installation.

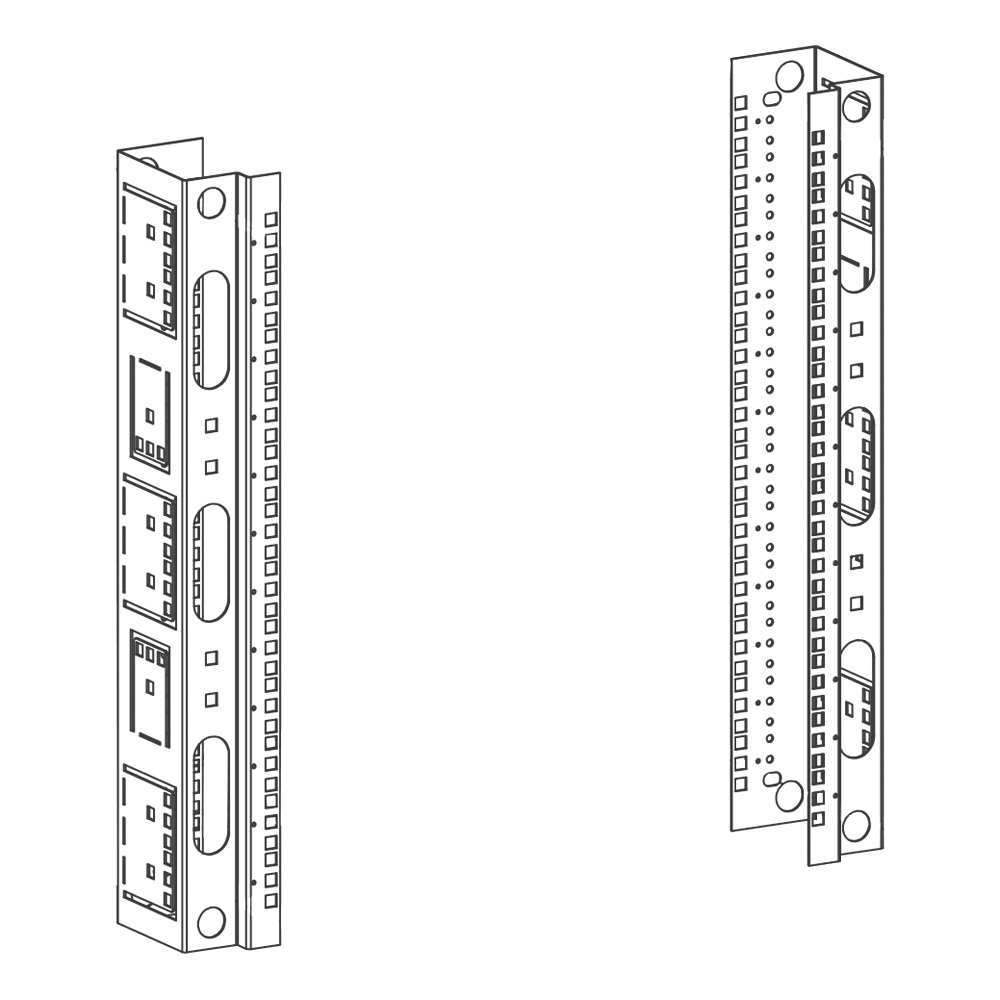

19-inch Mounting Profiles

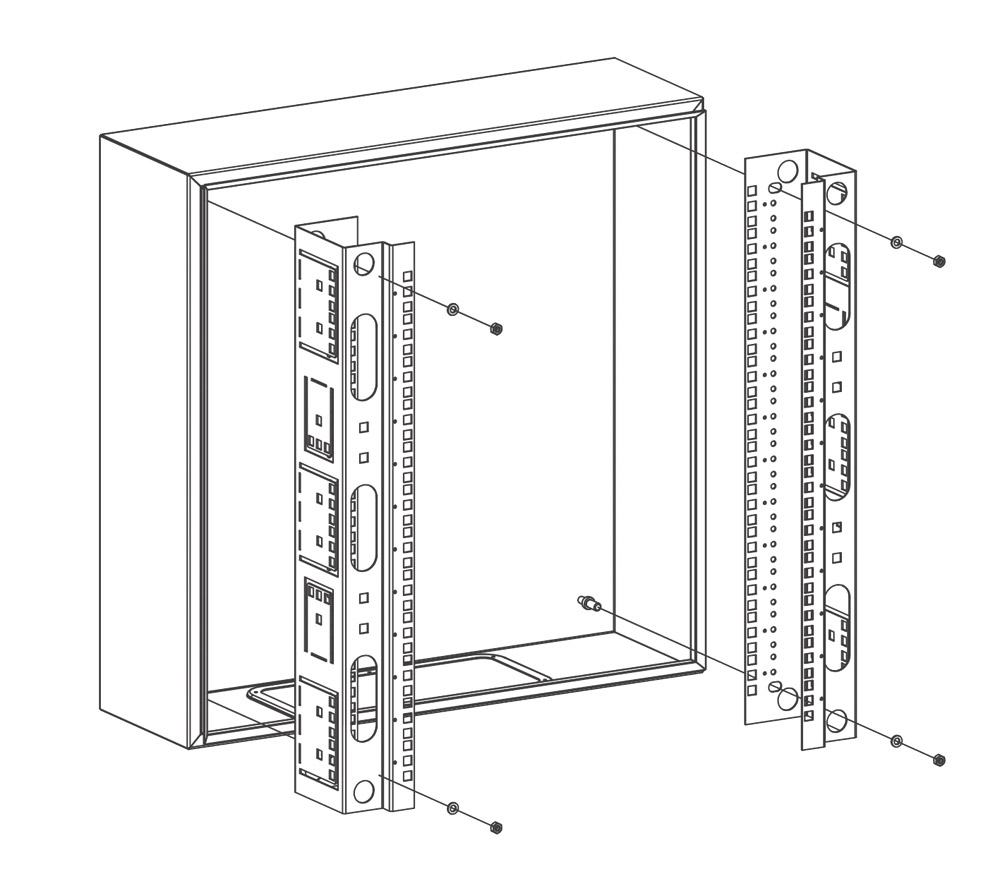

These are galvanised, folded-steel profiles which may be fitted to the rear of the Lande ES466E Series wall cabinets. Available in two heights, 12U for 600mm high cabinets, or 16U for 800mm high cabinets, the profiles are 'U' shaped with perforations to take cage nuts on the front and rear. In the centre of the 'U' shape, alternately spaced down the full height, on the 16U model, are two 1U and three 2U 'fold out' mounting surfaces; on the 16U model, there are three 1U and four 2U surfaces. As a result, the 12U model offers up to 20U of mounting space; the 16U model offers up to 27U. Note that the cabinet mounting-plate must be removed before installing the 19-inch mounting-profiles. Supplied as a pair. Minimum cabinet depth: 250mm.
