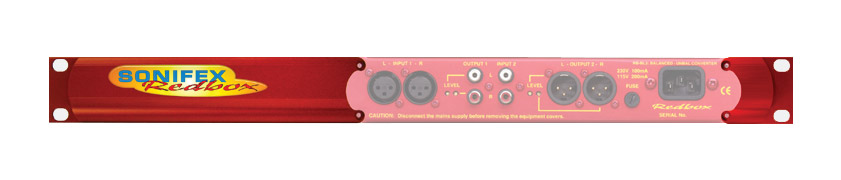

SONIFEX RB-RK2 RACKMOUNT KIT Rear panel - reverse mount, for 280mm wide types

Stock code
95-638
Brand
Sonifex
Model number
  • RB-RK2
SONIFEX RB-RK2 RACKMOUNT KIT Rear panel - reverse mount, for 280mm wide types

SONIFEX REDBOX FRONT PANELS AND RACKMOUNT KITS

Sonifex Redboxes are built in two different extrusions, with front and rear panels screwed to the extrusion. The different types are supplied either: as surface-mounting types, which may be attached to any flat surface, such as the underside of studio furniture, using the apertures in the case for fixing screws; or as “rack-mounting” types which have a 1U front panel attached.

RB-RK1, RB-RK2, RB-RK3

The surface mounting types may be mounted in a standard 19-inch rack using the accessory RB-RK1 Front panel rack-mounting kit. This has an aperture for the power indicator, but all other features will be inside the rack. The RB-RK2 and RB-RK3 mounting kits are intended to mount these products in “reverse”, so that connectors and other features are available on the outside of the rack. Both types have an aperture to run the supply cable through to the inside of the rack if required. See below for compatibility.

The rack-mounting types, obviously, may be mounted by the attached rack-mounting FRONT panel, but may also be mounted in reverse using the RB-RK2 and RB-RK3 kits. Although the existing front panel will have to be negotiated through the rack strips, this could be a very useful option.

RB-FR1

FR1 accessory kit may be fitted to suitable Redbox models, for use in circumstances where the equipment is not rack-mounted and the extra width of the unused rack-mounting ears is undesirable. This replaces the existing front panel of the RB-ADDA, RB-BL4, RB-UL4, RB-LU4. The result of this modification is to remove the rack-mounting ears, reducing the width of the equipment to 418mm. The kits consist of the replacement panel and fitting screws. They may be fitted using only a screwdriver.

RB-FR2, RB-FR3

The RB-FR2 fits the RB-HD1 and RB-DAC1. The RB-FR3 fits the RB-HD2. In both cases the panels are printed with the appropriate legend to suit the controls and connectors on the equipment. The result of the modification is to remove the rack-mounting ears and reduce the width of the equipment from 484mm to 258mm.

Compatibility

RB-RK1 RB-RK2 RB-RK3 RB-FR1 RB-FR2 RB-FR3
RB-ADDA Combined A/D and D/A converter (24 bit, 96kHz capable) Yes Yes
RB-ADDA2 Combined A/D and D/A converter (24 bit, 192kHz capable) Yes
RB-BL2 Unbalanced to balanced bi-directional converter Yes Yes
RB-BL4 Dual unbalanced to balanced bi-directional stereo converter Yes Yes
RB-DA4x5 Distribution amplifier/mixer, four in, four group of five out Yes
RB-DA6 Six-way stereo distribution amplifier Yes
RB-DA6G Six-way stereo distribution amplifier with output gain Yes
RB-DA6P Six-way stereo distribution amplifier with Phoenix connectors Yes
RB-DA6R Six-way stereo distribution amplifier with RJ45 connectors Yes
RB-DA6RG Six-way stereo distribution amplifier with RJ45 & output gain Yes
RB-DAC1 D/A analogue converter Yes Yes
RB-DD4 Four channel Digital Audio Delay Synchroniser Yes
RB-DDA6A AES/EBU digital distribution amplifier Yes Yes
RB-DDA6S S/PDIF digital distribution amplifier Yes Yes
RB-DDA6W Wordclock distribution amplifier Yes Yes
RB-DDA22 Digital audio distribution amplifier with multiple outputs Yes
RB-DEDD8 Dolby E & digital, decoder 8 channel, digital out Yes
RB-DEED8 Dolby E encoder 8 channel, digital inputs Yes
RB-DHD6 Digital six-way headphone distribution amplifier Yes
RB-DMA2 Dual digital microphone amplifier Yes
RB-DMX4 Digital audio mixer/router, four in, four out Yes
RB-DS2 Delay synchroniser and time-zone delay, stereo Yes
RB-DS2R Remote switch panel for RB-DS2 Yes
RB-DSD1 Digital silence detector Yes
RB-DSD8 Eight channel silence switcher Yes
RB-DSS10 Ten-way stereo digital source selector Yes
RB-HD1 Headphone amplifier - single output Yes Yes
RB-HD2 Headphone amplifier - two outputs Yes Yes
RB-HD6 Six-way headphone distribution amplifier Yes
RB-LC3 Light/power controller Yes Yes
RB-LI2 Stereo line-isolation unit Yes Yes
RB-LU4 Quad stereo balanced to unbalanced converter Yes Yes
RB-MA1 Single microphone amplifier Yes Yes
RB-MA2 Dual microphone amplifier Yes Yes
RB-ML2 Stereo microphone and line level limiter Yes Yes
RB-MM1 Mix-minus generator Yes Yes
RB-MTV1 Contribution and voiceover monitor with talkback Yes
RB-OA3 On-air switcher - three studios Yes
RB-OA3R On-air remote switch panel for RB-OA3 Yes
RB-PA2 Phono amplifier, dual stereo, RIAA Yes Yes
RB-PD2 Stereo profanity delay (1U) Yes
RB-PLI6 Six-way mono passive line isolation unit Yes
RB-PMX4 Ten-input, 4-output analogue preset mixer Yes
RB-SC1 Sample rate converter Yes Yes
RB-SC2 Dual sample rate converter Yes
RB-SD1 Silence detection unit Yes
RB-SL2 Twin mono, or stereo, limiter Yes Yes
RB-SM1 Single stereo to mono converter Yes Yes
RB-SM2 Dual stereo to mono converter Yes Yes
RB-SP1 Digital splitter and combiner Yes
RB-SS10 Ten-way stereo analogue source selector/mixer Yes
RB-SSML1 Mic/Line source selector with compressor/limiter Yes
RB-TGHDB Multi-channel HD tone generator, BNC outputs Yes
RB-TGHDX Multi-channel HD tone generator, XLR outputs Yes
RB-UL1 Unbalanced to balanced single converter Yes Yes
RB-UL2 Dual unbalanced to balanced converter Yes Yes
RB-UL4 Quad unbalanced to balanced converter Yes Yes
RB-VHDA8 Video distribution amplifier 3G/HD/SD-SDI Yes
RB-VHDMA8 Video de-embedder 8 outputs 3G/HD/SD-SDI Yes
RB-VHEMA8 Video embedder 8 inputs 3G/HD/SD-SDI Yes
RB-VHCMA4 Embed/de-embed 4 input/output 3G/HD/SD-SDI Yes
RB-VHCMD16 Embed/de-embed 16 input/output 3G/HD/SD-SDI Yes
RB-VHDDD8 Dolby E/digital, decoder & de-embedder 3G/HD/SD-SDI Yes
RB-VHEDD8 Dolby E encoder & embedder 3G/HD/SD-SDI Yes

All kits are finished in red anodised aluminium to match the Redboxes.

  Description Price (£) Add to basket
Show carriage
SONIFEX RB-RK1 RACKMOUNT KIT Front panel, for 280mm wide types   Stock code: 95-659
Please login for stock availability and lead times.
£30.96
SONIFEX RB-RK2 RACKMOUNT KIT Rear panel - reverse mount, for 280mm wide types   Stock code: 95-638
Please login for stock availability and lead times.
£29.96
SONIFEX RB-RK3 RACKMOUNT KIT Rear panel - reverse mount, for 480mm wide types   Stock code: 95-639
Please login for stock availability and lead times.
£28.96
SONIFEX RB-FR1 FRONT PANEL Non rackmount, for RB-ADDA, RB-UL4, RB-BL4, RB-LU4   Stock code: 95-755
Please login for stock availability and lead times.
£35.96
SONIFEX RB-FR2 FRONT PANEL Non rackmount, for RB-HD1, RB-DAC1   Stock code: 95-756
Please login for stock availability and lead times.
£39.96
SONIFEX RB-FR3 FRONT PANEL Non rackmount, for RB-HD2   Stock code: 95-757
Please login for stock availability and lead times.
£39.96
