CANARE UNIFIED SERIES FLUSH MOUNT CONNECTORS

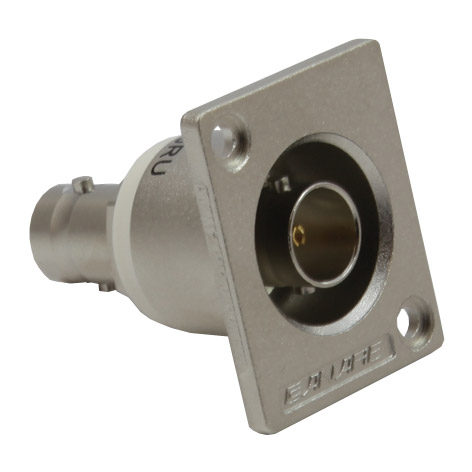

A range of connectors and panels, which can be assembled into composite connection panels according to requirements, or the connectors used in other projects requiring flush mountings. Connectors mount to the surface from the front (not the rear) of the panel. BNC, F, and RCA(phono) types are recessed below the front surface of the connector housing. Only the latch of the female connector stands proud of the front of the matching XLR types.

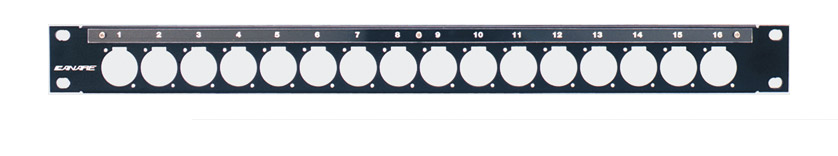

Panels are matt-black finished steel, with top and bottom reinforcement folds, and have M2.5 tapped holes for connector mounting (mounting screws are included with the panel). They are supplied with clear designation strips positioned over channel ID numbers (inserting a paper designation-strip, not supplied, hides the printed number). For performance details of the connectors, see the relevant Canare entry in the appropriate part of the Connectors section of the catalogue. Note that whilst these are of similar appearance to the Neutrik ‘D’ series, their dimensions are slightly different and the mountings are not compatible. RCA (phono) connectors are available with a BNC female on the rear face, or with solder tags. F-type are female-female (“back-to-back”) double-sided format.
