GREEN-GO DIGITAL INTERCOM SYSTEM - Wired beltpacks

These intercom stations have a spring-steel clip to fasten to a belt. They connect to a suitable network switch, which provides power over ethernet via an RJ45 connector and ethernet cable. An XLR connector is provided for a headset which is used for communication with other intercom stations connected to the network.

Headsets

The 4-pin, male, XLR, headset connectors are compatible with headsets with an impedance greater than 32 ohms and fitted with mating connectors to match those from Tecpro, Beyer and many other popular brands. If the microphone type is an electret, a switchable bias voltage is available.

GGO-BPX 32 Channel Wired Beltpack

Main points:

  • Full duplex, high quality audio, low latency
  • 32 channel operation
  • Instant access to 2, 3 or 4 intercom channels, programmable
  • Quick/easy access to 28 extended channels
  • Powerful headphone amplifier
  • Tough, lightweight, weather-resistant ABS case
  • Powered by PoE
  • Comprehensive feature set

Green-GO BPX beltpacks share most features with their WBPX wireless siblings, making switching between wired and wireless devices easy, with no need to learn additional operating procedures.

The tough, lightweight ABS case is weather resistant, making it suitable for sports and other outside events where light rain might be encountered. For frequent outdoor use, see the ‘Sports’ model described below.

A rear mounted belt clip provides a solid fixing to clothing.

To operate, BPX beltpacks require PoE (Power over Ethernet). A Neutrik EtherCON connector accepts either EtherCON or RJ45 connectors. EtherCON is recommended as it provides a solid fixing together with strain relief for the cable end.

BPX beltpacks offer 32 channel operation with instant access to 2, 3 or 4 intercom channels (via the four ‘On/Off’ buttons next to the Oled display). In common with other Green-GO user stations, they can store within memory any combination of up to 32 groups or users which can be swiftly assigned to any of the four instant access channels. The remaining 28 channels can be quickly accessed using the 'extended channels' function.

'Programme' audio level may be adjusted locally and can be set to dim or mute when intercom channels are active.

Four push buttons provide latching and non-latching microphone switching. The bright, multi-colour Oled display shows each channel's status together with 'Call Alerts', 'Cue' prompts and other information. The brightness of the display may be adjusted to suit the environment.

Two dual-function rotary-encoder wheels, positioned on either side of the beltpack, allow easy operation by left and right handed users. Each encoder wheel can be programmed to offer main volume, side tone, or programme audio level.

For clearer monitoring, the audio level of each of the four intercom channels may be set locally to ensure each channel can be heard at a sensible level. Overall audio level can be adjusted to suit.

Basic beltpack information is displayed on the Oled screen when either of the encoder wheels is pulled upwards until it clicks. Lifting both wheels upwards accesses the menu for editing, where a wide range of options can be set. These include setting up to four instantly accessible intercom channels, channel assign, comprehensive audio settings, set 'User', and system configuration.

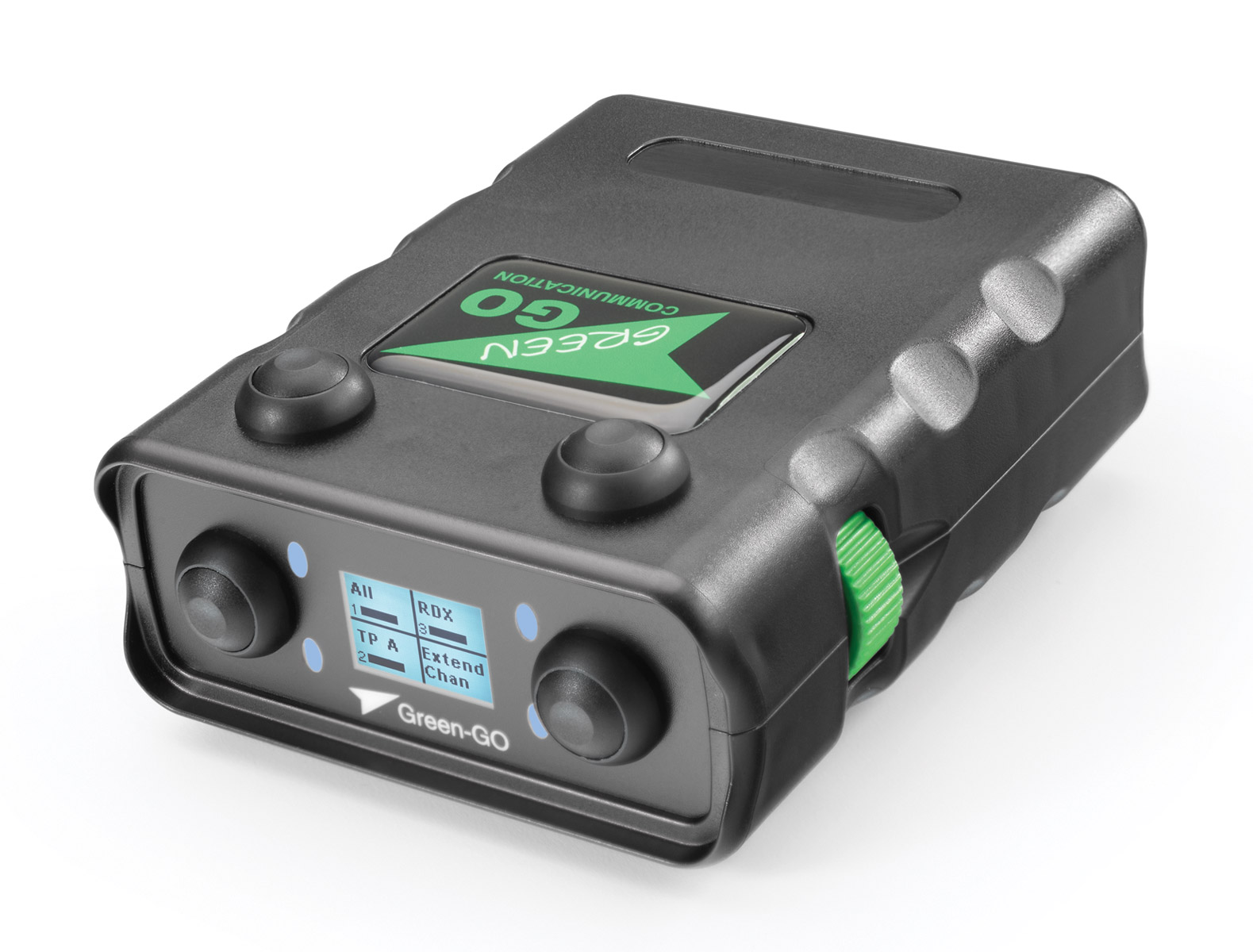

GGO-BPXSP 32 channel Wired Beltpack, Sports

Main points:

  • Weather resistant for outdoor use
  • Tough, lightweight, ABS case
  • Large, weather-tight buttons, suitable for operating while wearing heavy gloves
  • Bright LCD display screen suits viewing in sunlight
  • Full duplex, high quality audio with low latency
  • 32 Intercom channels available
  • Instant access to 2, 3 or 4 channels, programmable
  • Quick access to 28 extended channels
  • Powerful headphone amplifier
  • Powered by PoE

Except for weather-tight Mic buttons and a bright LED display screen, the feature set of the Green-GO BPXSP beltpacks for sport is similar to other wired and wireless Green-GO beltpacks. This makes it easy to switch between wired and wireless packs.

The use of large, weather-tight buttons protects against wet conditions and are suitable for use when wearing heavy gloves. This increases the weather resistance of the ABS case, making it suitable for sports and other outside events where rain showers are likely.

Note: Green-GO beltpacks are weather resistant but not IP rated. In torrential rain it is good practice to place the pack in a dry pocket or bag.

A rear mounted belt clip provides a solid fixing to clothing.

To operate, BPXSP beltpacks require PoE (Power over Ethernet). A Neutrik EtherCON connector accepts either EtherCON or RJ45 connectors. EtherCON is recommended as it provides a solid fixing together with strain relief for the cable end.

More information:

See Green-Go Digital Intercom System - Overview
See Green-Go Digital Intercom System - Wireless beltpacks and antenna stations
See Green-Go Digital Intercom System - Main stations and extension units
See Green-Go Digital Intercom System - Desktop and fixed stations
See Green-Go Digital Intercom System - Analogue interfaces
See Green-Go Digital Intercom System - Dante interface
See Green-Go Digital Intercom System - Network bridges and switches
See Green-Go Digital Intercom System - Radio interface station
See Green-Go Digital Intercom System - Call indicator station
See Green-Go Digital Intercom System - Gooseneck microphones

Note: Green-GO products are only available for sale to customers in the UK and Ireland.

  Description Price £
ex. VAT
Add to basket
Show carriage
GREEN-GO GGO-BPX DIGITAL BELTPACK 4-channel, ethercon RJ45, black Black Stock code: 26-775
Please login for stock availability and lead times.
£672.00
GREEN-GO GGO-BPXSP DIGITAL SPORTS BELTPACK 4-channel, weather resistant   Stock code: 26-741
Please login for stock availability and lead times.
£672.00
