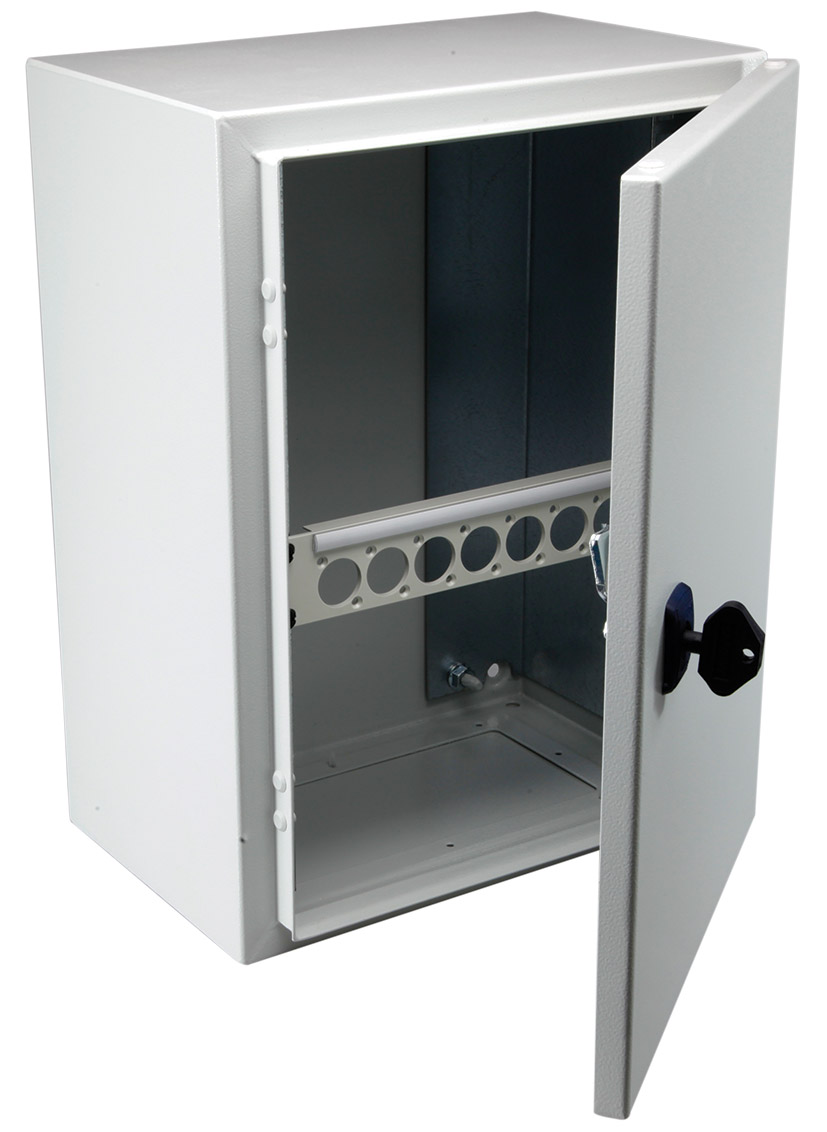

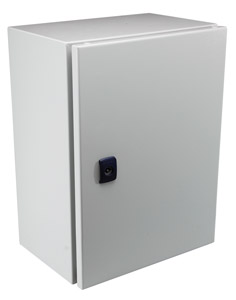

CANFORD ES46632508/G WALL CABINET IP66, 8U, half rack, 210d, profiles 50mm deep, grey
CANFORD ES46632508/G WALL CABINET IP66, 8U, half rack, 210d, profiles 50mm deep, greyCANFORD ES46632508/G WALL CABINET IP66, 8U, half rack, 210d, profiles 50mm deep, greyCANFORD ES46663512/G WALL CABINET IP66, 12U, full rack, 300d, profiles 50mm deep, grey

Designed for use in open areas subject to the full force of the elements or harsh environments such as chemical and pharmaceutical plants or marine applications, offering sealing up to IP66, the ES466 Series are wall-mounting 19 inch rack and half-rack (9.5 inch), steel rack cabinets. Available in three heights, three depths and three finishes, they are supplied with a fitted steel front door, complete with gasket.

Cabinets with a lesser degree (IP 55) of sealing are also available, see LANDE RACKS - ES455 Series - 19 Inch wall cabinets - IP55.

The main cabinet is a welded, folded steel construction, using up to 1.5mm sheet depending on the model. The enclosure edge is folded in the shape of a channel to avoid water stagnating on the seal. The rear panel is sealed other than the four depressed fixing points for mounting the unit on the wall.

Folded, plated, steel, rack-mounting profiles are fitted, from the rear of the cabinet, using four M8 press-welded studs and recessed either 50mm or 100mm from the front of the cabinet depending on the model. These profiles have one set of perforations to take cage nuts to fix equipment across the front of the rack. Note that rear rack-mounting profiles are not supplied with this range of cabinets.

A surface-mounted, lockable, steel door is secured to the cabinet using concealed, removable hinges with captive pins, offering 130 degree opening. Hinges can be mounted to allow left or right handed operation. A watertight seal is ensured by a one-piece, polyurethane gasket fitted to the inside of the door. Security is provided by one or two cylinder locks depending on the model. As the door opens within the outer dimensions of the cabinet, units can be mounted directly next to each other without any door interference.

On the base of the grey painted cabinets there is an aperture for cable access. One plain cover plate is supplied complete with a 5mm polyethylene gasket to maintain IP66 sealing. Note that no cable access apertures appear on any stainless steel models.

Cabinets are 300mm or 600mm wide overall and either 210mm, 300mm or 400mm deep overall, depending on model. Finishes available are Light grey, RAL 7035, powder coat, AISI 304 pre-grained stainless steel or AISI 316L pre-grained stainless steel.

Stock Code Useable External External External Profile Gland Plate No of Body Door
Height Height Width Depth Recess Dimensions Locks steel Steel
(U) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
15-3071 8U 400 300 210 50 210 x 96 1 1.2 1.2
15-3091 / 15-3111 8U 400 300 210 50 1 1 1.5
15-3072 8U 400 300 210 100 210 x 96 1 1.2 1.2
15-3092 / 15-3112 8U 400 300 210 100 1 1 1.5
15-3073 8U 400 600 210 50 510 x 96 1 1.2 1.2
15-3093 / 15-3113 8U 400 600 210 50 1 1.5 1.5
15-3074 8U 400 600 210 100 510 x 96 1 1.2 1.2
15-3094 / 15-3114 8U 400 600 210 100 1 1.5 1.5
15-3075 12U 600 600 210 50 510 x 96 2 1.4 1.4
15-3095 / 15-3115 12U 600 600 210 50 2 1.5 1.5
15-3076 12U 600 600 210 100 510 x 96 2 1.4 1.4
15-3096 / 15-3116 12U 600 600 210 100 2 1.5 1.5
15-3077 12U 600 600 300 50 510 x 96 2 1.4 1.4
15-3097 / 15-3117 12U 600 600 300 50 2 1.5 1.5
15-3078 12U 600 600 300 100 510 x 96 2 1.4 1.4
15-3098 / 15-3118 12U 600 600 300 100 2 1.5 1.5
15-3079 12U 600 600 400 50 510 x 96 2 1.4 1.4
15-3080 12U 600 600 400 100 510 x 96 2 1.4 1.4
15-3081 16U 800 600 210 50 510 x 96 2 1.4 1.4
15-3099 / 15-3119 16U 800 600 210 50 2 1.5 1.5
15-3082 16U 800 600 210 100 510 x 96 2 1.4 1.4
15-3101 / 15-3121 16U 800 600 210 100 2 1.5 1.5
15-3083 16U 800 600 300 50 510 x 96 2 1.4 1.4
15-3102 / 15-3122 16U 800 600 300 50 2 1.5 1.5
15-3084 16U 800 600 300 100 510 x 96 2 1.4 1.4
15-3103 / 15-3123 16U 800 600 300 100 2 1.5 1.5
15-3085 16U 800 600 400 50 510 x 96 2 1.4 1.4
15-3086 16U 800 600 400 100 510 x 96 2 1.4 1.4
  Description Price £
ex. VAT
Add to basket
Delivery
CANFORD ES46632508/G WALL CABINET IP66, 8U, half rack, 210d, profiles 50mm deep, grey Grey Stock code: 15-3071
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£121.10
CANFORD ES46632108/G WALL CABINET IP66, 8U, half rack, 210d, profiles 100mm deep, grey Grey Stock code: 15-3072
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£121.10
CANFORD ES46662508/G WALL CABINET IP66, 8U, full rack, 210d, profiles 50mm deep, grey Grey Stock code: 15-3073
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£158.60
CANFORD ES46662108/G WALL CABINET IP66, 8U, full rack, 210d, profiles 100mm deep, grey Grey Stock code: 15-3074
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£158.60
CANFORD ES46662512/G WALL CABINET IP66, 12U, full rack, 210d, profiles 50mm deep, grey Grey Stock code: 15-3075
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£185.40
CANFORD ES46662112/G WALL CABINET IP66, 12U, full rack, 210d, profiles 100mm deep, grey Grey Stock code: 15-3076
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£185.40
CANFORD ES46663512/G WALL CABINET IP66, 12U, full rack, 300d, profiles 50mm deep, grey Grey Stock code: 15-3077
1 in stock. Need more?
£253.40
CANFORD ES46663112/G WALL CABINET IP66, 12U, full rack, 300d, profiles 100mm deep, grey Grey Stock code: 15-3078
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£253.40
CANFORD ES46664512/G WALL CABINET IP66, 12U, full rack, 400d, profiles 50mm deep, grey Grey Stock code: 15-3079
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£279.50
CANFORD ES46664112/G WALL CABINET IP66, 12U, full rack, 400d, profiles 100mm deep, grey Grey Stock code: 15-3080
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£279.50
CANFORD ES46662516/G WALL CABINET IP66, 16U, full rack, 210d, profiles 50mm deep, grey Grey Stock code: 15-3081
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£228.20
CANFORD ES46662116/G WALL CABINET IP66, 16U, full rack, 210d, profiles 100mm deep, grey Grey Stock code: 15-3082
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£228.20
CANFORD ES46663516/G WALL CABINET IP66, 16U, full rack, 300d, profiles 50mm deep, grey Grey Stock code: 15-3083
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£303.50
CANFORD ES46663116/G WALL CABINET IP66, 16U, full rack, 300d, profiles 100mm deep, grey Grey Stock code: 15-3084
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£303.50
CANFORD ES46664516/G WALL CABINET IP66, 16U, full rack, 400d, profiles 50mm deep, grey Grey Stock code: 15-3085
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£343.40
CANFORD ES46664116/G WALL CABINET IP66, 16U, full rack, 400d, profiles 100mm deep, grey Grey Stock code: 15-3086
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£343.40
CANFORD ES46632508/S WALL CABINET IP66, 8U, half rack, 210d, profiles 50mm deep, SS 304L Stock code: 15-3091
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£317.40
CANFORD ES46632108/S WALL CABINET IP66, 8U, half rack, 210d, profiles 100mm deep, SS 304L Stock code: 15-3092
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£317.40
CANFORD ES46662508/S WALL CABINET IP66, 8U, full rack, 210d, profiles 50mm deep, SS 304L Stock code: 15-3093
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£429.80
CANFORD ES46662108/S WALL CABINET IP66, 8U, full rack, 210d, profiles 100mm deep, SS 304L Stock code: 15-3094
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£429.80
CANFORD ES46662512/S WALL CABINET IP66, 12U, full rack, 210d, profiles 50mm deep, SS 304L Stock code: 15-3095
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£541.00
CANFORD ES46662112/S WALL CABINET IP66, 12U, full rack, 210d, profiles 100mm deep, SS 304L Stock code: 15-3096
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£541.00
CANFORD ES46663512/S WALL CABINET IP66, 12U, full rack, 300d, profiles 50mm deep, SS 304L Stock code: 15-3097
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£643.00
CANFORD ES46663112/S WALL CABINET IP66, 12U, full rack, 300d, profiles 100mm deep, SS 304L Stock code: 15-3098
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£643.00
CANFORD ES46662516/S WALL CABINET IP66, 16U, full rack, 210d, profiles 50mm deep, SS 304L Stock code: 15-3099
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£636.00
CANFORD ES46662116/S WALL CABINET IP66, 16U, full rack, 210d, profiles 100mm deep, SS 304L Stock code: 15-3101
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£636.00
CANFORD ES46663516/S WALL CABINET IP66, 16U, full rack, 300d, profiles 50mm deep, SS 304L Stock code: 15-3102
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£767.00
CANFORD ES46663116/S WALL CABINET IP66, 16U, full rack, 300d, profiles 100mm deep, SS 304L Stock code: 15-3103
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£767.00
CANFORD ES46632508/SM WALL CABINET IP66, 8U, half rack, 210d, profiles 50mm deep, SS 316L Stock code: 15-3111
This item is discontinued. Please contact Technical Support for advice on alternatives.
CANFORD ES46632108/SM WALL CABINET IP66, 8U, half rack, 210d, profiles 100mm deep, SS 316L Stock code: 15-3112
This item is discontinued. Please contact Technical Support for advice on alternatives.
CANFORD ES46662508/SM WALL CABINET IP66, 8U, full rack, 210d, profiles 50mm deep, SS 316L Stock code: 15-3113
This item is discontinued. Please contact Technical Support for advice on alternatives.
CANFORD ES46662108/SM WALL CABINET IP66, 8U, full rack, 210d, profiles 100mm deep, SS 316L Stock code: 15-3114
This item is discontinued. Please contact Technical Support for advice on alternatives.
CANFORD ES46662512/SM WALL CABINET IP66, 12U, full rack, 210d, profiles 50mm deep, SS 316L Stock code: 15-3115
This item is discontinued. Please contact Technical Support for advice on alternatives.
CANFORD ES46662112/SM WALL CABINET IP66, 12U, full rack, 210d, profiles 100mm deep, SS 316L Stock code: 15-3116
This item is discontinued. Please contact Technical Support for advice on alternatives.
CANFORD ES46663512/SM WALL CABINET IP66, 12U, full rack, 300d, profiles 50mm deep, SS 316L Stock code: 15-3117
This item is discontinued. Please contact Technical Support for advice on alternatives.
CANFORD ES46663112/SM WALL CABINET IP66, 12U, full rack, 300d, profiles 100mm deep, SS 316L Stock code: 15-3118
This item is discontinued. Please contact Technical Support for advice on alternatives.
CANFORD ES46662516/SM WALL CABINET IP66, 16U, full rack, 210d, profiles 50mm deep, SS 316L Stock code: 15-3119
This item is discontinued. Please contact Technical Support for advice on alternatives.
CANFORD ES46662116/SM WALL CABINET IP66, 16U, full rack, 210d, profiles 100mm deep, SS 316L Stock code: 15-3121
This item is discontinued. Please contact Technical Support for advice on alternatives.
CANFORD ES46663516/SM WALL CABINET IP66, 16U, full rack, 300d, profiles 50mm deep, SS 316L Stock code: 15-3122
This item is discontinued. Please contact Technical Support for advice on alternatives.
CANFORD ES46663116/SM WALL CABINET IP66, 16U, full rack, 300d, profiles 100mm deep, SS 316L Stock code: 15-3123
This item is discontinued. Please contact Technical Support for advice on alternatives.
