INTER-M MIXERS

2 items
INTER-M PP-6213 MIXER 9x mic, 3x stereo line inputs, 1x priority input, 3x outputs, ducking, 2U
INTER-M PP-6213 MIXER 9x mic, 3x stereo line inputs, 1x priority input, 3x outputs, ducking, 2UINTER-M PP-6213 MIXER 9x mic, 3x stereo line inputs, 1x priority input, 3x outputs, ducking, 2UINTER-M PP-6214 MIXER 8x mic/line, 2x stereo line inputs, 1x priority input, 2x outputs, 2U

A range of 19-inch rackmount-able mixers with pre-amplifiers from Inter-M. Commonly used and integrated into function room, conference room, schools, and places of worship, these pre-amplifiers offer differing input and output configurations, along with functions such as ducking and voice priority.


PP-6213

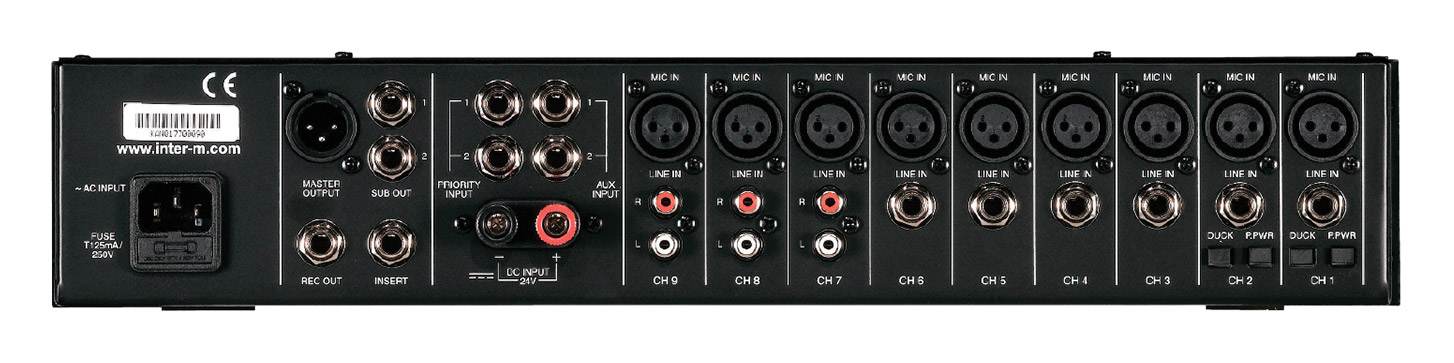

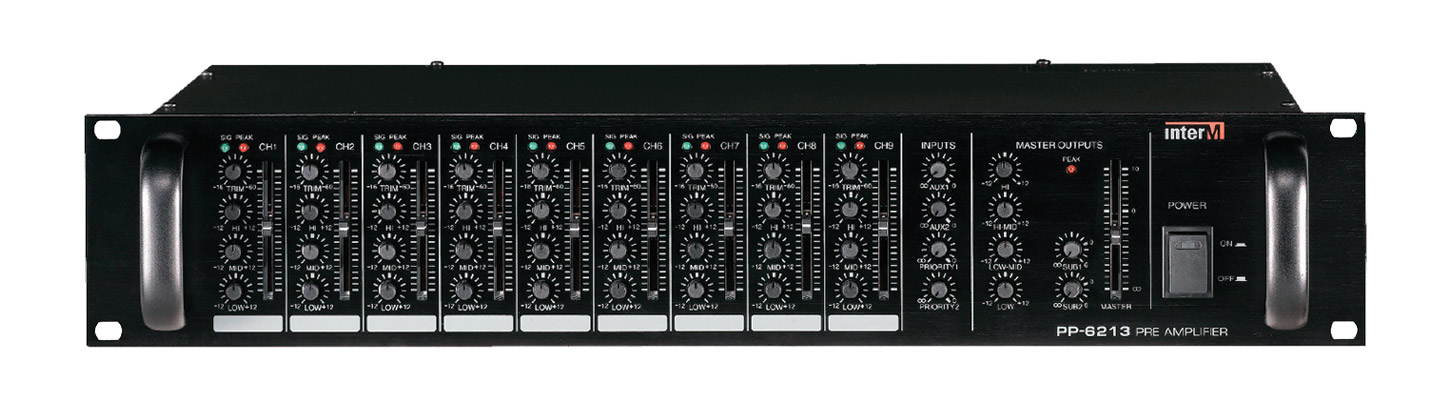

Inter-M PP-6213 is an AC or DC powered mic/line mixer with nine microphone/line inputs, priority override on input channels 1-2, and ducking over channels 3-9. This is particularly useful in applications such as restaurants, supermarkets, transportation terminals, and high street retail where these features, along with paging override are often implemented. Channels 1-2 have individually switchable phantom power, whilst all channels have a 3-band (high/mid/low) EQ to better tune the output audio. PP6213 has two additional auxiliary inputs on 6.35mm jack, including two priority line level inputs also on 6.35mm jack. The output section of the mixer features a 4-tone equalizer (low/low-mid/high-mid/high). Other features include 2x 6.35mm jack sub outputs, and a record output, also via 6.35mm jack. The unit is housed in a 2U high, 19-inch, rackmountable chassis.

Inputs: 9x Mic/Line. Input sensitivity: -60dBm at 600ohms balanced, mic, CH1-CH9; -20dBm at 47kohms balanced, line, CH1-CH6; -20dBm at 47kohms unbalanced, line, CH7-CH9; 10dBm at 20kohms unbalanced, aux, 1-2; 1/2 0dBm at 20kohms unbalanced, priority. Rated output (1kHz): +4dBm at 600ohms balanced, master; +4dBm at 600ohms unbalanced, sub 1/2 output; -10dBm at 10kohms unbalanced, record output. T.H.D: Less than 0.3 percent. Frequency response: 30Hz - 20kHz, +1dB, -3dB. Input channel EQ: +/-12dB, 10kHz, high; +/-12dB, 1kHz, mid, +/-12dB, 100kHz, low. Output channel EQ: +/-12dB, 10kHz, high, +/-12dB, 2kHz, high-mid; +/-12dB, 400kHz, low-mid; +/-12dB, 80kHz, low. Residual noise: Less than -90dB. Crosstalk: Less than -60dB. Phantom power: +18v DC. Power source: 220-240v AC, 50/60Hz, 24v DC. Power consumption: 10W. Dimensions (WxHxD): 482 x 88 x 280mm. Weight: 4.80kg.


PP-6214

Inter-M PP-6214 is an AC or DC powered mic/line mixer intended for use in conference and sound installations where the requirement is for a simple to operate yet reasonably comprehensive rackmounted mixer. The 2U high unit has eight balanced mono mic/line (mic on XLR, line on 6.35mm jack) and two unbalanced stereo line inputs, each separately assignable to two outputs. Mono inputs have separate rotary gain and output level controls, together with overload LEDs. Phantom power (20V) is available, block switched. Stereo inputs have three-position switched gain and rotary level controls. In addition, the unit has two unbalanced priority inputs which, together with the 'Mic 1' input, have voice priority over all other inputs for paging and similar requirements. The voice on 'Mic 1' being defeatable via a rear panel mounted switch. Each of the two outputs have 3-band EQ slider level controls and are balanced with 3-pin XLR connectors. In addition, two record outputs available, which are taken pre the main output faders.

Inputs: 8x Mic/7x mono line. Outputs: 2x 3-pin XLR; 2x 6.35mm jack, record out L/R. Input sensitivity: -60dB at 600ohms, microphone; -30dB at 10kohms, line. Output Sensitivity: 4dBm at 600ohms, balanced. Record output: -6dB at 10kohms. Phantom power: 18V DC, microphone channels 1-8, block switched. Frequency response: 20Hz - 20kHz. Power requirement: 230v AC, 50Hz; 24v DC. Dimensions (WxHxD): 482 x 88 x 280mm. Weight: 5.50kg

  Description Price £
ex. VAT
Add to basket
Delivery
INTER-M PP-6213 MIXER 9x mic, 3x stereo line inputs, 1x priority input, 3x outputs, ducking, 2U Stock code: 93-709
Discontinued. Please contact Technical Support for alternatives.
INTER-M PP-6214 MIXER 8x mic/line, 2x stereo line inputs, 1x priority input, 2x outputs, 2U Stock code: 93-710
Available in 1‑2 working days Ordered on demand, cancellations may incur charges, available in 1‑2 working days. Need it sooner? Call us
£477.80
