TUK CONNECT+ CONNECTION SYSTEM - Accessories

9 items

A range of accessories from TUK to complement their Connect+ range with testing, accessing, disconnecting and protecting circuits wired through modules.


Inserter tool 2A

All termination of wires on TUK, Commscope (Krone) and similar connection blocks must be carried out using a special tool. The tool applies the correct pressure to both wire and contact and trims the excess wire off at the same time. A blade and hook are included on the tool for the removal of modules from mounting frames, and wires from modules respectively.

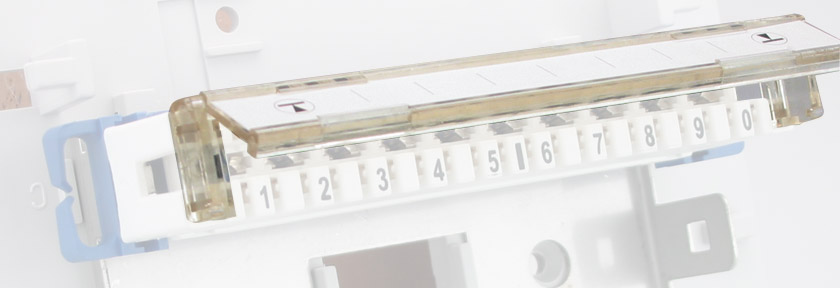

Clip on label holder 51A

Designation strips 51A are double-sided hinged label-holders which clip over 237 or ABS modules, supplied complete with paper label insert. Circuits and jumpers can be accessed without removing the label-holder, permitting easy reference to circuits under test. Additional paper inserts to suit the 51A are also available, supplied in packs of 100.


Dis-peg 25A

For temporary disconnection of up to 10 circuits simultaneously for testing or installation of parallel wiring. The 25A can be modified by cutting out any 'teeth' that are not required to make a custom dis-peg, used for example to break only groups of associated circuits, controls and dc's.


Dis-peg 23W

Similar to the 25A this small dis-peg is used for temporary circuit disconnection when testing, or installing parallel wiring. Each peg locks into place and forces the connection contacts apart of a single pair on the module.

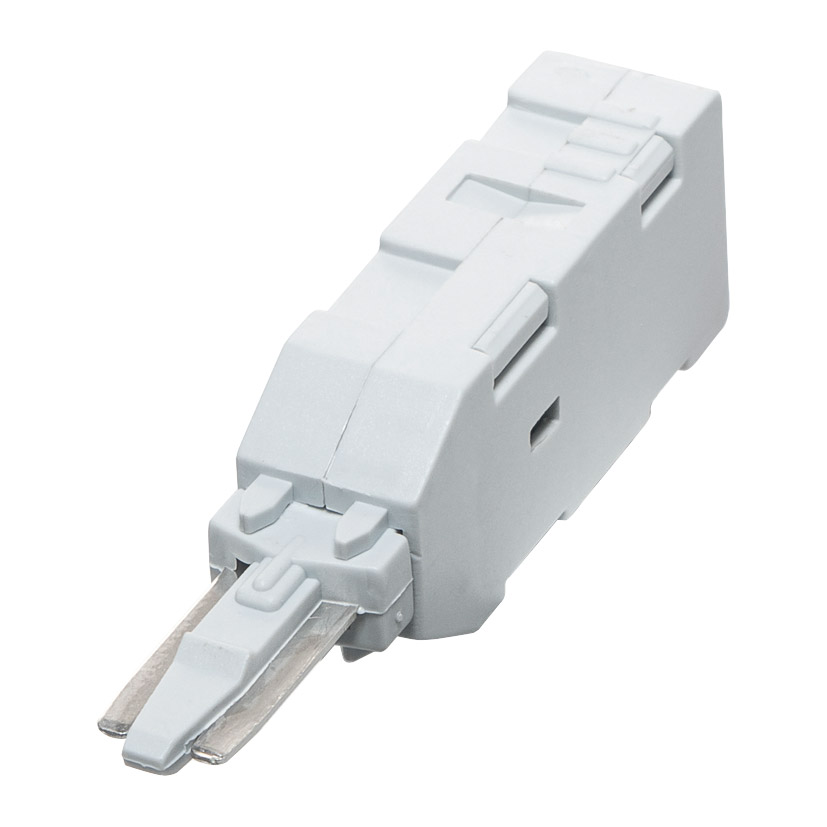

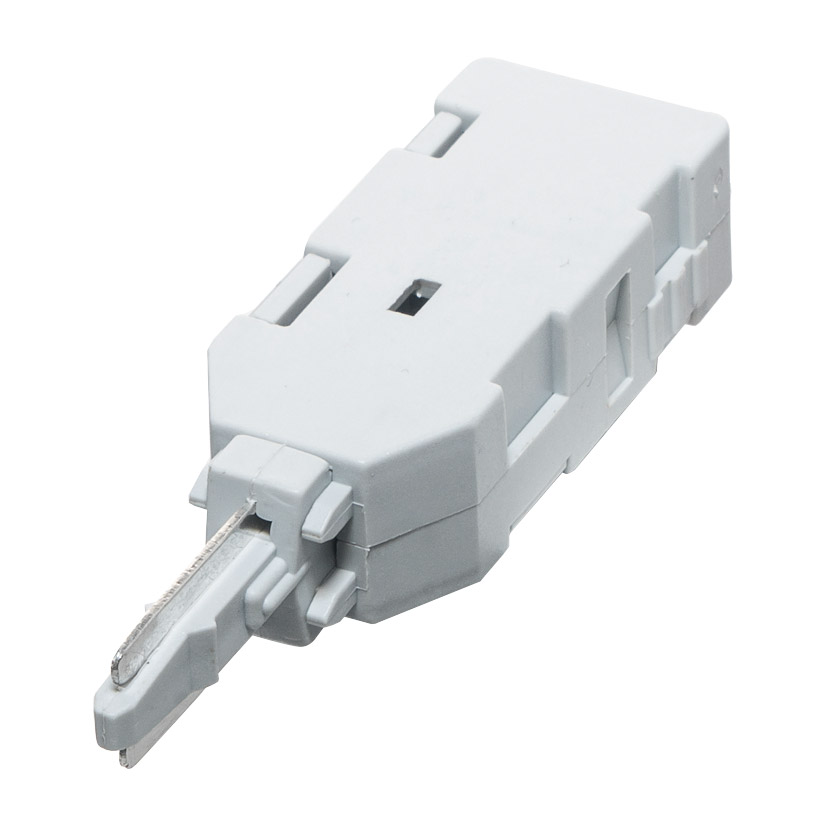

TL2 & TL4 Empty plug cases

Available in 2 pole TL2 and 4 pole TL4 these empty plug cases enable users to make up their own units in blank plugs.

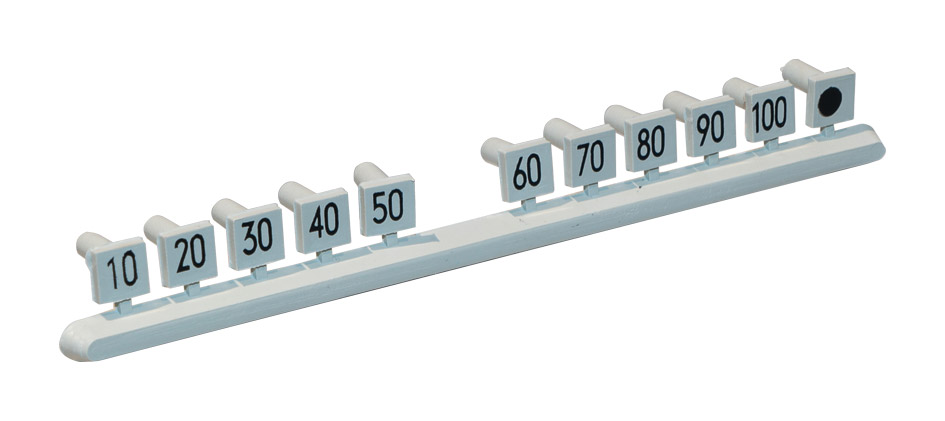

XNS1-0 & XNS10100 Identification numbers

Push-on number markers for modules. Supplied in strips of 0 to 9 XNS1-0 or 10 to 100 XNS10100.

For modules see TUK CONNECT+ CONNECTION SYSTEM - Modules
For connection boxes see TUK CONNECT+ CONNECTION SYSTEM - Connection boxes.
For mounting hardware see TUK CONNECT+ CONNECTION SYSTEM - Mounting hardware

  Description Price £
ex. VAT
Add to basket
Delivery
TUK Inserter tool 2A Stock code: 46-031
9 in stock Need more?
1+ £13.13
10+ £12.80
50+ £12.47
100+ £12.15
TUK Label holder 51A Stock code: 46-033
56 in stock Need more?
1+ £1.40
10+ £1.37
50+ £1.33
100+ £1.30
TUK Paper inserts for label holder 51A (pack of 100) Stock code: 46-034
2 in stock Need more?
1+ £6.50
10+ £6.34
50+ £6.18
100+ £6.01
per pack
TUK 25A 10 pair dis-peg Stock code: 46-233
Available in 3‑5 working days Ordered on demand, available in 3‑5 working days. Need it sooner? Call us
1+ £0.96
10+ £0.94
50+ £0.91
100+ £0.89
TUK 23W dis-peg Stock code: 46-234
581 in stock Need more?
1+ £0.12
50+ £0.11
TUK TL2 Empty plug case 2 pole Stock code: 46-235
32 in stock Need more?
1+ £1.68
10+ £1.64
50+ £1.60
100+ £1.55
TUK TL4 Empty plug case 4 pole Stock code: 46-236
Expected: 31/05/2024 Temporarily out of stock but available to backorder, expected: 31/05/2024.
1+ £2.50
10+ £2.44
50+ £2.38
100+ £2.31
TUK XNS1-0 Identification numbers 0-9 Stock code: 46-237
9 in stock Need more?
1+ £0.58
10+ £0.57
50+ £0.55
100+ £0.54
TUK XNS10100 Identification numbers 10-100 Stock code: 46-238
30 in stock Need more?
1+ £0.80
10+ £0.78
50+ £0.76
100+ £0.74
