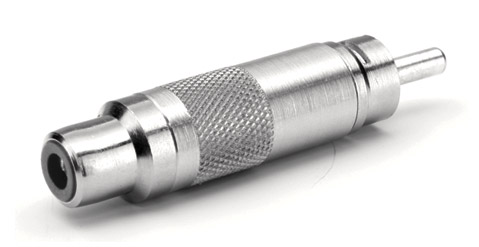

RCA (PHONO) IN-LINE ATTENUATORS
Metal bodied in-line attenuators, with nickel-plated RCA (phono) female input and male output connectors. Useful for interfacing semi-professional line level RCA(phono) outputs to domestic equipment.
Technical Specification:
|
Source impedance | Load Impedance | Attenuation (0.1dB tolerance) |
|---|
|
100 ohms | 100 kohms | 10.7dB |
|
100 ohms | 50 kohms | 11.3dB |
|
100 ohms | 10 kohms | 14.7dB |
|
600 ohms | 10 kohms | 14.8dB |
|
Maximum signal: Nominally 100V RMS, but limited in practice by safety constraints.
