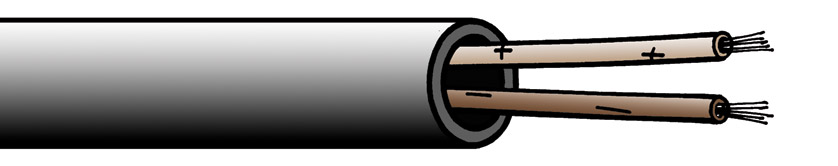

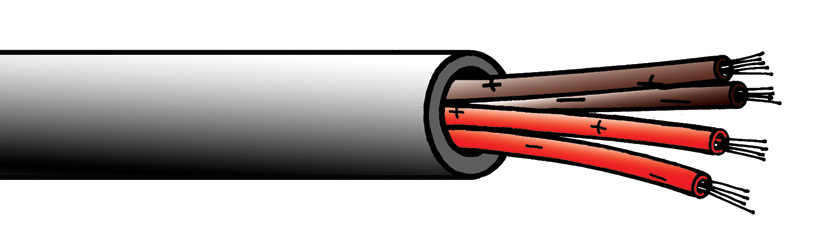

Two and four-core 2.5mm² cross section extra-flexible multicore cable for loudspeaker wiring. Core pairs are colour coded using the resistor colour code as there is no standard coding for loudspeaker cables (not mains colour codes) and printed for unambiguous phasing.
Cores are laid together specifically to suit the contact configuration of the Neutrik ‘Speakon’ loudspeaker connectors, for ease of termination. Four-core type suits Neutrik NL4FC, Amphenol EP4 and AP4 types and many others.
Cores are colour coded and printed as follows:
|PVC, radial thickness 0.6mm, OD 3.4mm, coloured and marked as above
|2 or 4 cores printed black and laid together
|Soft PVC, matt black
|MCS 2-core 9.8mm, MCS 4-core 11.5mm
|MCS 2-core 14.5kg/100m, MCS 4-core 20.0kg/100m,
|Available in any multiple of 1 metre
Manufactured to Canford design.
