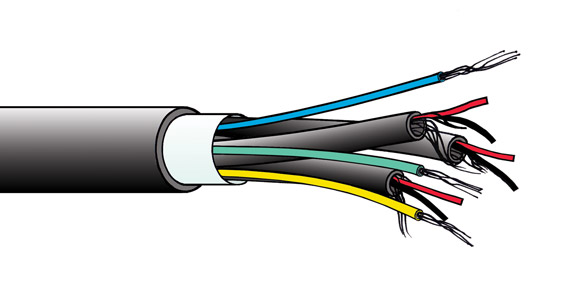

A small diameter multipair cable based on Canford’s HSJ series flexible individually jacketed multipair cable. The design is similar but uses smaller conductors and thinner insulation in order to obtain a reduced diameter offering good handling characteristics. MSJ3 is specifically intended for use with M-S and other stereo microphones, but is suitable for a range of other applications requiring a reduced diameter, flexible screened 3-pair cable, including ENG.

To give further usage options, there are 3 additional single wires, which can be used for DC, signalling, control etc., plus an overall foil screen under the outer jacket to provide further screening.

Technical Specification:
Conductors: 7/0.127mm (0.088mm²) plain copper wire
Insulation: PVC, OD 1.0mm, red, black
Screen: 0.1mm plain copper wire, helically wound, 80% optical coverage
Pair jacket: Soft PVC, OD 3.2mm, black
Conductors: 3 individual wires, 7/0.2mm tinned copper wire, PVC insulated, blue, green, yellow
Overall screen: Aluminium/polyester tape
Outer sheath: Soft PVC, OD 8.3mm ±0.1mm, matt black
Conductor resistance: 23 ohms/100m
Capacitance: 120pF/100m
Weight: 5.0kg/100m approx
Reel length: 500 metres
Cut lengths: Available in any multiple of 1 metre
  Description Price £
ex. VAT
Add to basket
Show carriage
CANFORD MSJ CABLE 3 pair   Stock code: 30-503
Please login for stock availability and lead times.
1+ £3.76
100+ £3.01
500+ £2.93
1,000+ £2.82
per metre
