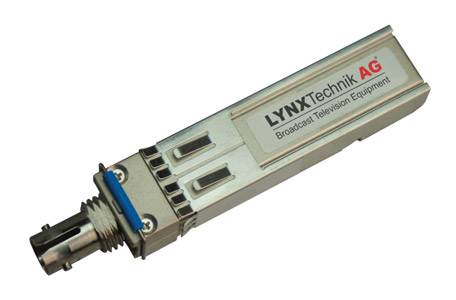

LYNX YELLOBRIK OH-TX-12G-ST FIBRE SFP Transmitter, 12G/6G/3G/1.5G, singlemode ST, non-CWDM

Stock code
90-3136
Brand
Lynx (Lynx Technik)
Model number
  • OH-TX-12G-ST
LYNX YELLOBRIK OH-TX-12G-ST FIBRE SFP Transmitter, 12G/6G/3G/1.5G, singlemode ST, non-CWDM
LYNX YELLOBRIK OH-TX-12G-ST FIBRE SFP Transmitter, 12G/6G/3G/1.5G, singlemode ST, non-CWDM

Order

/
£390.00
each (ex. VAT)
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us

LYNX YELLOBRIK FIBRE OPTIC SFP MODULES

A range of fibre optic SFP modules which may be fitted to Yellobriks equipped with an SFP cage. They provide single mode or multimode fibre extension for SDI, AES and analogue audio signals, depending on the Yellobrik module.

As the optical channel separation is quite small (20nm), CWDM transmitters and transceivers are specifically designed with a narrow spectral response (transmission peaks) to avoid cross channel interference. Although some non-CWDM SFPs may appear to offer the same wavelengths (1310nm and 1550nm are frequently used for simple two-channel, bi-directional systems), it is vital that CWDM compatible transmitters are used throughout multi-channel CWDM systems. Non-CWDM types have a much less tightly-controlled spectral peak, which is likely to cause adjacent channel interference.

Lynx Yellobrik SFP fibre optic CWDM transmitter and transceiver modules may also be used to replace the non-CWDM modules originally supplied in many Yellobriks to extend the original 10km transmission range, or to add a multiplex capability as systems evolve. Please contact Technical Support to check compatibility.

These SFP modules must be ordered in addition to the Yellowbrik module where they are shown as optional accessories. Dedicated Yellowbrik fibre transmitters, receivers and transceivers are supplied complete with the appropriate SFP module.

Note that there are several, incompatible, SFP pin connection protocols and quality and reliability varies enormously between SFP manufacturers. It is therefore recommended that only Lynx Technik SFPs are used with Yellobrik modules.

TRANSMITTERS Non-CWDM

OH-TX-1-LC - Singlemode, 10km, 1310nm Wavelength, LC connector.

OH-TX-1 SDI optical transmitter is an integrated part or plug in option for select LYNX Technik yellobrik and Series 5000 products. This SFP module facilitates the conversion of an electrical SDI signal into an optical signal for transmission over fibre. Wavelength is a fixed 1310nm and suitable for distances up to 10km. The module accommodates 270Mbit/1.485Gbit and 2.97Gbit SDI signals conforming to SMPTE 424M, 292M, 259M and DVB-ASI.

OH-TX-1-SC - Singlemode, 10km, 1310nm Wavelength, SC connector.

As OH-TX-1-LC but with SC connector

OH-TX-1-ST - Singlemode, 10km, 1310nm Wavelength, ST connector.

AS AH-TX-1-LC but with ST connector

OH-TX-12G-ST - Singlemode, 10km, 1310nm Wavelength, ST connector.

OH-TX-12G-ST single channel optical transmitter is an integrated plug in option for selected LYNX Technik products. This SFP module facilitates the conversion of SDI electrical signals at ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G) and ST-292 (HD) to optical signal.

OH-TX-12G-LC - Singlemode, 10km, 1310nm Wavelength, LC connector.

OH-TX-12G-LC SDI optical transmitter is an integrated part or plug in option for select LYNX Technik products. This SFP module facilitates the conversion of an electrical SDI signal into an optical signal for transmission over fibre. Wavelength is a fixed 1310nm and suitable for distances up to 10km. The module accommodates 12G, 6G, 3G and 1.5G SDI signals conforming to SMPTE 2082, 424M, 292M.

OH-TT-1-LC - Singlemode, 10km, 1310nm Wavelength, Duplex LC connectors

OH-TT-1 is a dual channel SDI optical transmitter that is an integrated part or plug in option for select LYNX Technik yellobrik and Series 5000 products. The SFP module facilitates the conversion of two electrical SDI signals into optical signals for transmission over two fibre links. Wavelength is a fixed 1310nm for each channel and suitable for distances up to 10km. The module accommodates 270Mbit/1.485Gbit and 2.97Gbit SDI signals conforming to SMPTE 424M, 292M, 259M and DVB-ASI.

OH-TT-12G-LC - Singlemode, 10km, 1310nm Wavelength, Duplex LC connectors

OH-TT-12G-LC is a dual channel SDI optical transmitter that is an integrated part or plug in option for select LYNX Technik yellobrik and Series 5000 products. Wavelength is a fixed 1310nm for each channel and suitable for distances up to 10km. The module accommodates 11.88Gbit, 5.94Gbit, 2.97Gbit, and 1.485Gbit SDI signals conforming to SMPTE 2082, SMPTE 424M, and SMPTE 292M.

RECEIVERS Non-CWDM

OH-RX-1-LC - Singlemode, 1260 - 1620nm Wavelengths, Simplex LC connector.

OH-RX-1 SDI optical receiver is an integrated part or plug in option for select LYNX Technik yellobrik and Series 5000 products. This module facilitates the conversion of the SDI optical signal into an electrical signal for further processing within these products. Support is provided for all wavelengths between 1260 and 1620nm according to ITU-T G694.2 (18 wavelengths). The module accommodates 270Mbit/1.485G and 2.97G SDI signals conforming to SMPTE 424M, 292M, 259M and DVB-ASI.

OH-RX-1-Y-SC - Singlemode, 1260 - 1620nm Wavelengths, Simplex SC connector.

Suitable for Yellobrik only, OH-RX-1-Y-SC has the same feature set as OH-RX-1-LC however it has an SC connection.

OH-RX-1-Y-ST - Singlemode, 1260 - 1620nm Wavelengths, Simplex ST connector..

Suitable for Yellobrik only, OH-RX-1-Y-ST has the same feature set as OH-RX-1-LC however it has an ST connection.

OH-RX-8-LC - Singlemode, 1260 - 1620nm Wavelengths, Simplex LC connector

OH-RX-8-LC is a high sensitivity SDI optical receiver that supports all wavelengths between 1260 and 1620nm according to ITU-T G694.2 (18 wavelengths). High sensitivity provides a much wider operational headroom than the standard OH-RX-1-LC receiver for long haul applications. The module accommodates 270Mbit / 1.485Gbit and 2.97Gbit SDI signals conforming to SMPTE 424M, 292M, 259M and DVB-ASI.

OH-RX-12G-ST - Singlemode, 1260 - 1620nm Wavelengths, Simplex ST connector

OH-RX-12 SDI optical receiver is an integrated plug in option for select LYNX Technik products. This SFP module facilitates the conversion of a optical fibre SDI signal into an electrical SDI signal. Wavelength capture rage is between 1260nm and 1620nm. The module accommodates 12G, 6G, 3G and 1.5G SDI signals conforming to SMPTE 2082, 424M, 292M.

OH-RX-12G-LC - Singlemode, 1260 - 1620nm Wavelengths, Simplex LC connector

As OH-RX-12G-ST but with LC connector.

OH-RR-8-LC - Singlemode, 1260 - 1620nm Wavelengths, Duplex LC connectors

OH-RR-8-LC is a dual channel SDI optical receiver supports all wavelengths between 1260 and 1620nm according to ITU-T G694.2 (18 wavelengths). High sensitivity provides a much wider operational headroom than the standard OH-RR-1 dual channel receiver for long haul applications. The module accommodates 270Mbit/1.485Gbit and 2.97Gbit SDI signals conforming to SMPTE 424M, 292M, 259M and DVB-ASI.

OH-RR-12G-LC - Singlemode, 1260 - 1620nm Wavelengths, Duplex LC connectors

OH-RR-12 dual channel SDI optical receiver support wavelengths between 1260 and 1620nm according to ITU-T G694.2 (18 wavelengths). The module accommodates 11.88Gbit, 5.94Gbit, 2.97Gbit, and 1.485Gbit SDI signals conforming to SMPTE 2082, SMPTE 424M, and SMPTE 292M.

OH-RR-4-12G-LC - Singlemode, 1260 - 1620nm Wavelengths, Duplex LC connectors

OH-RR-4-12 is a dual channel SDI optical receiver with support for all wavelengths between 1260 and 1620nm according to ITU-T G694.2 (18 wavelengths). The module accommodates 11.88Gbit, 5.94Gbit, 2.97Gbit, and 1.485Gbit SDI signals conforming to SMPTE 2082, SMPTE 424M, and SMPTE 292M.

TRANSCEIVERS Non-CWDM

OH-TR-1 - Singlemode, 10km, Dual fibre, TX wavelength 1310nm, LC connector.

OH-TR-1-LC SDI optical transceiver is an integrated part or plug in option for select LYNX Technik yellobrik and Series 5000 products. This SFP module includes a receiver and a transmitter which facilitates the conversion of an electrical SDI signal into an optical signal for transmission over fibre, and also receives an optical SDI signal and converts to an electrical signal for further processing. Wavelength is a fixed 1310nm and suitable for distances up to 10km. The module accommodates 270Mbit/1.485G and 2.97G SDI signals conforming to SMPTE 424M, 292M, 259M and DVB-ASI.

OH-TR-0-850-MM - Multimode, 300m, Dual fibre, TX wavelength 850nm, LC connector.

OH-TR-0-850-MM SDI optical transceiver is an integrated part or plug in option for select LYNX Technik yellobrik and Series 5000 products. This SFP module includes a receiver and a transmitter which facilitates the conversion of an electrical SDI signal into an optical signal for transmission over fibre, and also receives an optical SDI signal and converts to an electrical signal for further processing. Wavelength is a fixed 850nm and suitable for distances up to 1000m. The module accommodates 270Mbit/1.485G and 2.97G SDI signals conforming to SMPTE 424M, 292M, 259M and DVB-ASI.

OH-TR-12G-LC - Singlemode, 10km, TX wavelength 1310nm, LC connector.

OH-TR-12G-LC SDI optical transceiver is a plug in option for select LYNX Technik yellobrik products. This SFP module includes a receiver and a transmitter which facilitates the conversion of an electrical SDI signal into an optical signal for transmission over fibre, and also receives an optical SDI signal and converts to an electrical signal for further processing. Transmission wavelength is a fixed 1310nm and suitable for distances up to 10km using singlemode fibre. The receiver will capture any wavelength between 1260-1620nm. The module supports 12Gbit, 6Gbit, 3Gbit and 1.5Gbit SDI signals conforming to SMPTE 2082M, SMPTE 424M and SMPTE 292M.

OH-TR-51-LC - Singlemode, 10km, TX wavelength 1310nm, Duplex LC connector

OH-TR-51-LC is a data optical transceiver which facilitates the conversion of an electrical data signal into an optical signal for transmission over fibre, and will also receive an optical data signal for conversion to an electrical signal for further processing. Fixed TX wavelength of 1310nm (non CWDM). Data rate 1.25Gbps/1.063Gbps compatible with SONET OC-24-LR-1. Suitable for distances up to 10km.

OH-BD-1-1310-Y - Singlemode, 10km, Bi-directional, TX wavelength 1310nm, LC connector.

For use ONLY with PDM 1383. Must be used in conjunction with OH-BD-1-1550-Y at the other end.

OH-BD-1-1550-Y - Singlemode, 10Km, Bi-directional, TX wavelength 1550nm, LC connector.

For use ONLY with PDM 1383. Must be used in conjunction with OH-BD-1-1310-Y at the other end.

TRANSMITTERS (TX) CWDM

CWDM refers to Coarse Wavelength Division Multiplexing, a process of combining multiple singlemode wavelengths into a single fibre optic cable. Depending on the transmitters, receivers and transceivers used, signals can be transported in either or both directions simultaneously. Each wavelength can be used to transport a different audio, video or data stream, or a combination of all three in the case of audio and data embedded in an SDI signal. The ITU- G.692.2 standard defines eighteen wavelengths from 1270nm to 1610nm, with a channel spacing of 20nm, which can be used within a CWDM system.

For the versions below, a socket or 'cage' is provided for the SFP in the supporting Lynx product for easy installation or upgrade. The SFP is hot swappable.

OH-TX-4

OH-TX-4-XXXX SDI optical transmitter is a CWDM fibre plug in option for select Lynx Technik Yellobrik and Series 5000 products. This SFP module facilitates the conversion of an electrical SDI signal into an optical signal for transmission over fibre. Eighteen wavelength selections are available for CWDM applications and support for distances of up to 40km is provided. The module supports 270Mbit, 1.5G and 3G SDI signals conforming to SMPTE 424M, 292M, 259M and DVB-ASI.

Versions available
90-3101 OH-TX-4-1270-LC wavelength of 1270nm
90-3102 OH-TX-4-1290-LC wavelength of 1290nm
90-3103 OH-TX-4-1310-LC wavelength of 1310nm
90-3104 OH-TX-4-1330-LC wavelength of 1330nm
90-3105 OH-TX-4-1350-LC wavelength of 1350nm
90-3106 OH-TX-4-1370-LC wavelength of 1370nm
90-3107 OH-TX-4-1390-LC wavelength of 1390nm
90-3108 OH-TX-4-1410-LC wavelength of 1410nm
90-3109 OH-TX-4-1430-LC wavelength of 1430nm
90-3111 OH-TX-4-1450-LC wavelength of 1450nm
90-3112 OH-TX-4-1470-LC wavelength of 1470nm
90-3113 OH-TX-4-1490-LC wavelength of 1490nm
90-3114 OH-TX-4-1510-LC wavelength of 1510nm
90-3115 OH-TX-4-1530-LC wavelength of 1530nm
90-3116 OH-TX-4-1550-LC wavelength of 1550nm
90-3117 OH-TX-4-1570-LC wavelength of 1570nm
90-3118 OH-TX-4-1590-LC wavelength of 1590nm
90-3119 OH-TX-4-1610-LC wavelength of 1610nm

OH-TX-4-12G

OH-TX-4-12G-LC optical transmitter is an integrated part or plug in option for selected Lynx Technik products. This SFP module facilitates the conversion of an electrical SDI signal into an optical signal for transmission over fibre. Wavelength is a fixed 1310nm and suitable for distances up to 40km. The module accommodates 12G, 6G, 3G and 1.5G SDI signals conforming to SMPTE 2082, SMPTE 2081, SMPTE 424M, 292M, 259M, DVB-ASI.

Versions available
90-3100 OH-TX-4-12G-LC wavelength of 1310nm

OH-TX-12G

OH-TX-12G-XXXX-LC 12G SDI optical transmitter is a CWDM fibre plug in option for select Lynx Technik products. This SFP module facilitates the conversion of an electrical SDI signal into an optical signal for transmission over a fibre link. Eighteen wavelength selections are currently available for CWDM applications and provide support for distances up to 10km. The module supports 270Mb, 1.5G, 3G, 6G, and 12G SDI signals conforming to SMPTE 2082, SMPTE 424M, 292M.

Versions available
90-3361 OH-TX-12G-1270-LC wavelength of 1270nm
90-3362 OH-TX-12G-1290-LC wavelength of 1290nm
90-3363 OH-TX-12G-1310-LC wavelength of 1310nm
90-3364 OH-TX-12G-1330-LC wavelength of 1330nm
90-3390 OH-TX-12G-1350-LC wavelength of 1350nm
90-3391 OH-TX-12G-1370-LC wavelength of 1370nm
90-3392 OH-TX-12G-1390-LC wavelength of 1390nm
90-3393 OH-TX-12G-1410-LC wavelength of 1410nm
90-3394 OH-TX-12G-1430-LC wavelength of 1430nm
90-3395 OH-TX-12G-1450-LC wavelength of 1450nm
90-3396 OH-TX-12G-1470-LC wavelength of 1470nm
90-3397 OH-TX-12G-1490-LC wavelength of 1490nm
90-3398 OH-TX-12G-1510-LC wavelength of 1510nm
90-3399 OH-TX-12G-1530-LC wavelength of 1530nm
90-3365 OH-TX-12G-1550-LC wavelength of 1550nm
90-3366 OH-TX-12G-1570-LC wavelength of 1570nm
90-3367 OH-TX-12G-1590-LC wavelength of 1590nm
90-3368 OH-TX-12G-1610-LC wavelength of 1610nm

DUAL TRANSMITTERS (TT) CWDM

OH-TT-4

OH-TT-4-XXXX-XXXX-LC dual channel SDI optical transmitter is a CWDM fibre plug in option for select Lynx Technik Yellobrik and Series 5000 products. This SFP module facilitates the conversion of two electrical SDI signals into optical signals for transmission over two fibre links. Nine wavelength 'pairs' (eighteen wavelength) selections are available for CWDM applications and support for distances of up to 40km is provided. The module supports 270Mb, 1.5G, and 3G SDI signals conforming to SMPTE 424M, 292M, 259M and DVB-ASI.

Versions available
90-3141 OH-TT-4-1270-1290-LC wavelength of 1270-1290nm
90-3142 OH-TT-4-1310-1330-LC wavelength of 1310-1330nm
90-3143 OH-TT-4-1350-1370-LC wavelength of 1350-1370nm
90-3144 OH-TT-4-1390-1410-LC wavelength of 1390-1410nm
90-3145 OH-TT-4-1430-1450-LC wavelength of 1430-1450nm
90-3146 OH-TT-4-1470-1490-LC wavelength of 1470-1490nm
90-3147 OH-TT-4-1510-1530-LC wavelength of 1510-1530nm
90-3148 OH-TT-4-1550-1570-LC wavelength of 1550-1570nm
90-3149 OH-TT-4-1590-1610-LC wavelength of 1590-1610nm

OH-TT-12G

OH-TT-12G-XXXX-XXXX-YLC dual channel SDI optical transmitter is a CWDM fibre plug in option for selected Lynx Technik Yellobrik, greenMachine, and Series 5000 products. This SFP module facilitates the conversion of two electrical SDI signals into optical signals for transmission over two fibre links. 18-wavelengths (9 pairs) selections are available for CWDM applications and support for distances of up to 10km is provided. The module accommodates 12G, 6G, 3G, and 1.5G SDI signals conforming to SMPTE 2082, SMPTE 2081, SMPTE 424M, and SMPTE 292M.

90-3331 OH-TT-12G-1270-1290-LC wavelength of 1270-1290nm
90-3332 OH-TT-12G-1310-1330-LC wavelength of 1310-1330nm
90-3333 OH-TT-12G-1350-1370-LC wavelength of 1350-1370nm
90-3334 OH-TT-12G-1390-1410-LC wavelength of 1390-1410nm
90-3335 OH-TT-12G-1430-1450-LC wavelength of 1430-1450nm
90-3336 OH-TT-12G-1470-1490-LC wavelength of 1470-1490nm
90-3337 OH-TT-12G-1510-1530-LC wavelength of 1510-1530nm
90-3338 OH-TT-12G-1550-1570-LC wavelength of 1550-1570nm
90-3339 OH-TT-12G-1590-1610-LC wavelength of 1590-1610nm

TRANSCEIVERS (TR) CWDM

OH-TR-4

OH-TR-4-XXXX-LC SDI optical transceiver is a plug in option for select Lynx Technik Yellobrik and Series 5000 products. This SFP module includes a receiver and a transmitter which facilitates the conversion of an electrical SDI signal into an optical signal for transmission over fibre, and also receives an optical SDI signal and converts to an electrical signal for further processing. Eighteen CWDM wavelength selections are provided and it is suitable for distances up to 40km. The module accommodates 270Mb, 1.5G, and 3G SDI signals conforming to SMPTE 424M, 292M, 259M and DVB-ASI.

Versions available
90-3151 OH-TR-4-1270-LC wavelength of 1270nm
90-3152 OH-TR-4-1290-LC wavelength of 1290nm
90-3153 OH-TR-4-1310-LC wavelength of 1310nm
90-3154 OH-TR-4-1330-LC wavelength of 1330nm
90-3155 OH-TR-4-1350-LC wavelength of 1350nm
90-3156 OH-TR-4-1370-LC wavelength of 1370nm
90-3157 OH-TR-4-1390-LC wavelength of 1390nm
90-3158 OH-TR-4-1410-LC wavelength of 1410nm
90-3159 OH-TR-4-1430-LC wavelength of 1430nm
90-3161 OH-TR-4-1450-LC wavelength of 1450nm
90-3162 OH-TR-4-1470-LC wavelength of 1470nm
90-3163 OH-TR-4-1490-LC wavelength of 1490nm
90-3164 OH-TR-4-1510-LC wavelength of 1510nm
90-3165 OH-TR-4-1530-LC wavelength of 1530nm
90-3166 OH-TR-4-1550-LC wavelength of 1550nm
90-3167 OH-TR-4-1570-LC wavelength of 1570nm
90-3168 OH-TR-4-1590-LC wavelength of 1590nm
90-3169 OH-TR-4-1610-LC wavelength of 1610nm

OH-TR-8

OH-TR-8-XXXX-LC SDI optical transceiver is a plug in option for select LYNX Technik yellobrik and Series 5000 products. This SFP module includes a receiver and a transmitter which facilitates the conversion of an electrical SDI signal into an optical signal for transmission over fibre, and also receives an optical SDI signal and converts to an electrical signal for further processing. 18x CWDM wavelength selections are provided and it is suitable for distances up to 80km. The module accommodates 270Mbit/1.485Gbit and 2.97Gbit SDI signals conforming to SMPTE 424M, 292M, 259M and DVB-ASI. This is a higher power device intended for long haul applications. TX wavelengths: 1270-1610nm CWDM. RX wavelengths: 1260-1620nm CWDM.

Versions available
90-3311 OH-TR-8-1270-LC wavelength of 1270nm
90-3312 OH-TR-8-1290-LC wavelength of 1290nm
90-3313 OH-TR-8-1310-LC wavelength of 1310nm
90-3314 OH-TR-8-1330-LC wavelength of 1330nm
90-3315 OH-TR-8-1350-LC wavelength of 1350nm
90-3316 OH-TR-8-1370-LC wavelength of 1370nm
90-3317 OH-TR-8-1390-LC wavelength of 1390nm
90-3318 OH-TR-8-1410-LC wavelength of 1410nm
90-3319 OH-TR-8-1430-LC wavelength of 1430nm
90-3320 OH-TR-8-1450-LC wavelength of 1450nm
90-3321 OH-TR-8-1470-LC wavelength of 1470nm
90-3322 OH-TR-8-1490-LC wavelength of 1490nm
90-3323 OH-TR-8-1510-LC wavelength of 1510nm
90-3324 OH-TR-8-1530-LC wavelength of 1530nm
90-3325 OH-TR-8-1550-LC wavelength of 1550nm
90-3326 OH-TR-8-1570-LC wavelength of 1570nm
90-3327 OH-TR-8-1590-LC wavelength of 1590nm
90-3328 OH-TR-8-1610-LC wavelength of 1610nm

OH-TR-12G

OH-TR-12G-XXXX-LC SDI optical transceiver is a plug in option for select Lynx Technik Yellobrik, greenMachine and Series 5000 products. This SFP module includes a receiver and a transmitter which facilitates the conversion of an electrical SDI signal into an optical signal for transmission over fibre and also receives an optical SDI signal and converts to an electrical signal for further processing. Four CWDM wavelength selections are provided and it is suitable for distances up to 10km. The module accommodates 12G, 6G, 3G and 1.5G SDI signals conforming to SMPTE 2082, SMPTE 424M and SMPTE 292M.

Versions available
90-3371 OH-TR-12G-1270-LC wavelength of 1270nm
90-3372 OH-TR-12G-1290-LC wavelength of 1290nm
90-3373 OH-TR-12G-1310-LC wavelength of 1310nm
90-3374 OH-TR-12G-1330-LC wavelength of 1330nm
90-3375 OH-TR-12G-1350-LC wavelength of 1350nm
90-3376 OH-TR-12G-1370-LC wavelength of 1370nm
90-3377 OH-TR-12G-1390-LC wavelength of 1390nm
90-3378 OH-TR-12G-1410-LC wavelength of 1410nm
90-3379 OH-TR-12G-1430-LC wavelength of 1430nm
90-3381 OH-TR-12G-1450-LC wavelength of 1450nm
90-3382 OH-TR-12G-1470-LC wavelength of 1470nm
90-3383 OH-TR-12G-1490-LC wavelength of 1490nm
90-3384 OH-TR-12G-1510-LC wavelength of 1510nm
90-3385 OH-TR-12G-1530-LC wavelength of 1530nm
90-3386 OH-TR-12G-1550-LC wavelength of 1550nm
90-3387 OH-TR-12G-1570-LC wavelength of 1570nm
90-3388 OH-TR-12G-1590-LC wavelength of 1590nm

OH-TR-54

OH-TR-54-XXXX-LC Data optical transceiver is a plug in option for select Lynx Technik Yellobrik and Series 5000 products. This SFP module includes a receiver and a transmitter which facilitates the conversion of an electrical data signal into an optical signal for transmission over fibre, and will also receive an optical data signal for conversion to an electrical signal for further processing. Eighteen CWDM wavelength selections are provided and it is suitable for distances up to 40km

Versions available
90-3341 OH-TR-54-1270-LC wavelength of 51270nm
90-3342 OH-TR-54-1290-LC wavelength of 51290nm
90-3343 OH-TR-54-1310-LC wavelength of 51310nm
90-3344 OH-TR-54-1330-LC wavelength of 51330nm
90-3345 OH-TR-54-1350-LC wavelength of 51350nm
90-3346 OH-TR-54-1370-LC wavelength of 51370nm
90-3347 OH-TR-54-1390-LC wavelength of 51390nm
90-3348 OH-TR-54-1410-LC wavelength of 51410nm
90-3349 OH-TR-54-1430-LC wavelength of 51430nm
90-3351 OH-TR-54-1450-LC wavelength of 51450nm
90-3352 OH-TR-54-1470-LC wavelength of 51470nm
90-3353 OH-TR-54-1490-LC wavelength of 51490nm
90-3354 OH-TR-54-1510-LC wavelength of 51510nm
90-3355 OH-TR-54-1530-LC wavelength of 51530nm
90-3356 OH-TR-54-1550-LC wavelength of 51550nm
90-3357 OH-TR-54-1570-LC wavelength of 51570nm
90-3358 OH-TR-54-1590-LC wavelength of 51590nm
90-3359 OH-TR-54-1610-LC wavelength of 51610nm
