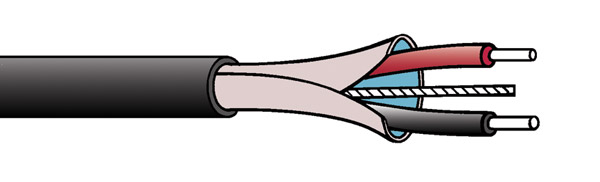

BELDEN 1508A - FOIL SCREENED STRANDED CONDUCTOR TWIN CABLE

Foil screened cable, with Beldfoil® (the foil bonded to the jacket) for easy stripping. Similar to 1883A, but more flexible jacket. This cable is the element used in the 15XX individually jacketed flexible multipair series.

Technical Specification:
Conductors: 7/0.20mm (7/32AWG) (0.22mm sq.) (24AWG) tinned copper
Insulation: Polyolefin, red, black
Construction: Two cores twisted together with 7/0.2mm tinned copper drain wire, lay length 44mm
Screen: Beldfoil® (bonded to jacket), nylon ripcord laid over screen, under jacket
Jacket: PVC, 3.32mm OD, black
Capacitance: 101pF/m core to core, 190pF/m core to core+screen
Weight: 1.93kg/100m
Reel length: 305m
Cut lengths: Available in any multiple of 1 metre
  Description Price £
ex. VAT
Add to basket
Delivery
BELDEN 1508A CABLE Black Black Stock code: 60-1508A
Please login for stock availability and lead times.
1+ £1.38
100+ £1.10
500+ £1.08
1,000+ £1.04
per metre
