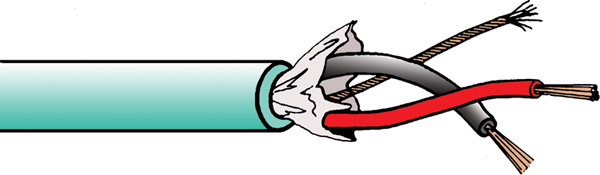

CANFORD DFT - DIGITAL AUDIO FOIL SCREENED STRANDED CONDUCTOR TWIN CABLE

FST has long been one of Canford’s best selling products – the perfect installation cable, with jacket + foil single stripping. DFT is the true 110 ohm version of FST, similar in most respects, but with differing insulation materials and lay-up to achieve the required characteristic impedance. As with FST, the foil is glued to the outer PVC jacket, so comes away cleanly during stripping.

Technical Specification:

Conductor:	7/0.2mm (0.22mm²) tinned copper wire
Insulation:	Foamed polypropylene, OD 1.6mm, red, black
Screen:	Bondable aluminium/polyester tape, with 7/0.2mm tinned copper drain wire
Jacket:	PVC OD 4.4mm ±0.2mm
Impedance:	110 ±10 ohms
Capacitance:	39pF/m
Max. conductor resistance:	85 ohms/km
Weight:	2.0kg/100m
Reel length:	500m
Cut lengths:	Available in any multiple of 1 metre
